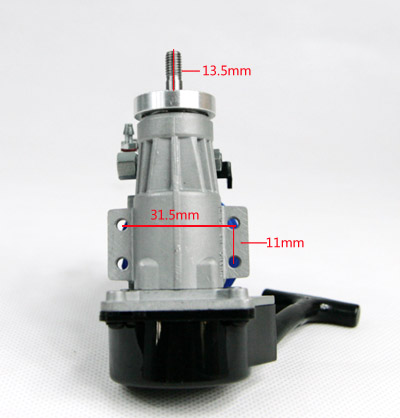

Length of output shaft: 14mm (outside)
Diameter of output shaft: 5mm
Mounting holes spacing (opposite side): 31mm
Mounting holes spacing (same side): 11mm
Height from Bottom of Crankcase to Top of Cylinder Head: 86mm
Height from Bottom Mounting Ears to Top of Cylinder Head: 73.2mm
Width at Mounting Ears: 40mm
Length from Back of Pull Starter to End of Crankshaft: 93.8mm
*Please note that there are two versions .15 engines with same code 15CX-H (SKU SY15CX & SY15CX2 ), yet the specs are quite different, please read the specs carefully and make sure you choose the right one.

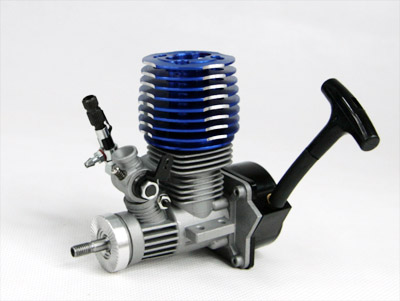

1 x engine with recoil starter
(muffler not included)
