   Electric Battery Chargers & Battery Accessories Lithium Polymer Battery ( Li-Poly, LIPB) Chargers UltraPower UP7 400W 10A AC/DC Dual Channel Large Power Balance Charger/ Discharger
SKU:  UP-UP7

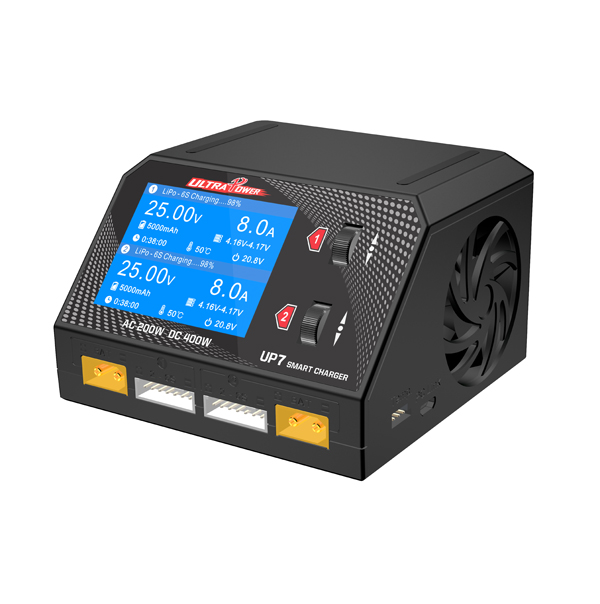

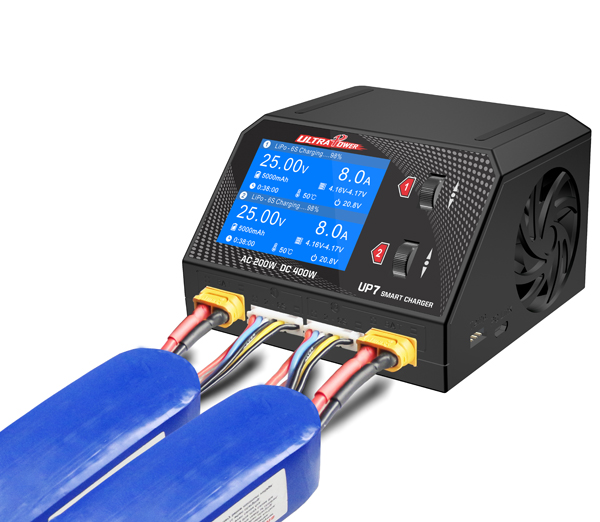

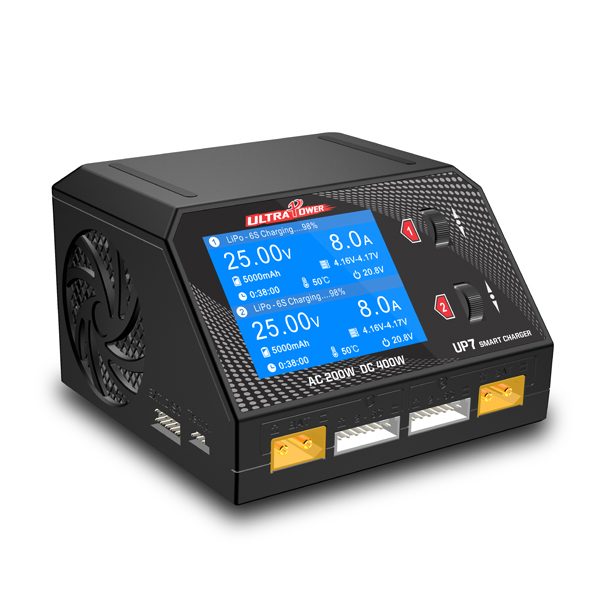

UltraPower UP7 400W 10A AC/DC Dual Channel Large Power Balance Charger/ Discharger
Customers rating.
Add To Wish List
Added:2023/03/13
Updated:2023/03/13
Follow Us on:



  Tags: UltraPower  UP7  400W  10A  AC  DC  Dual  Channel  Large  Power  Balance  Charger  Discharger

Features:





Specifications:

UltraPower UP7 400W 10A AC/DC Dual Channel Large Power Balance Charger/ Discharger


Input voltage:AC 100-240V, DC 9.0-32.0V
Output voltage: 0.1-30V

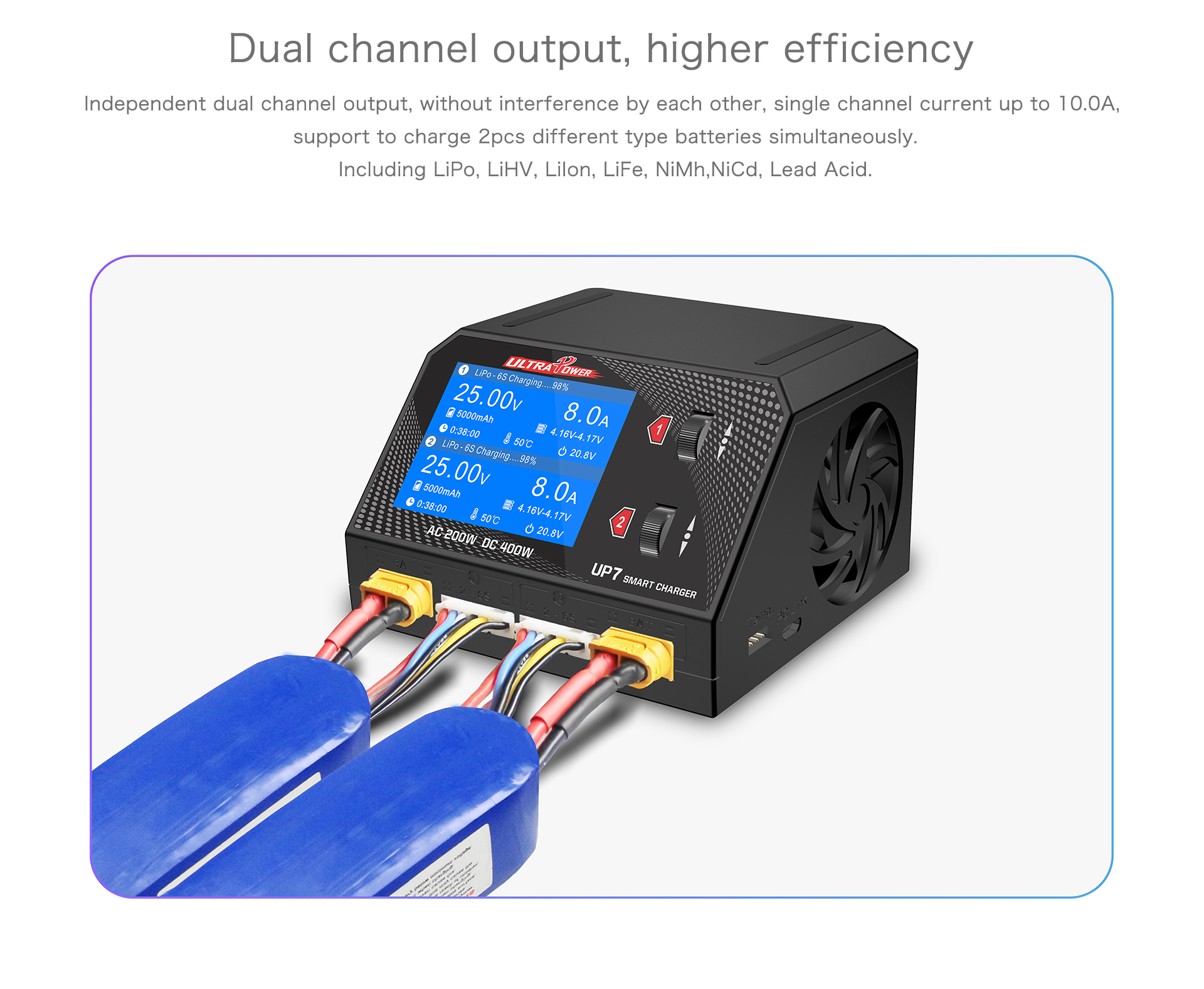

Charge Current: 0.1-10.0AX2
Discharge Current: CH1:0.1-2.0A/

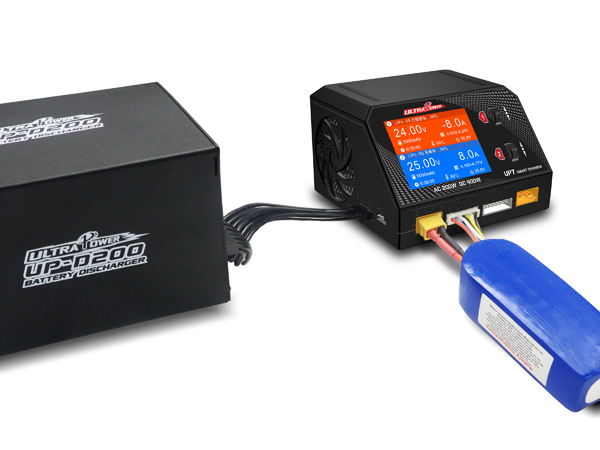

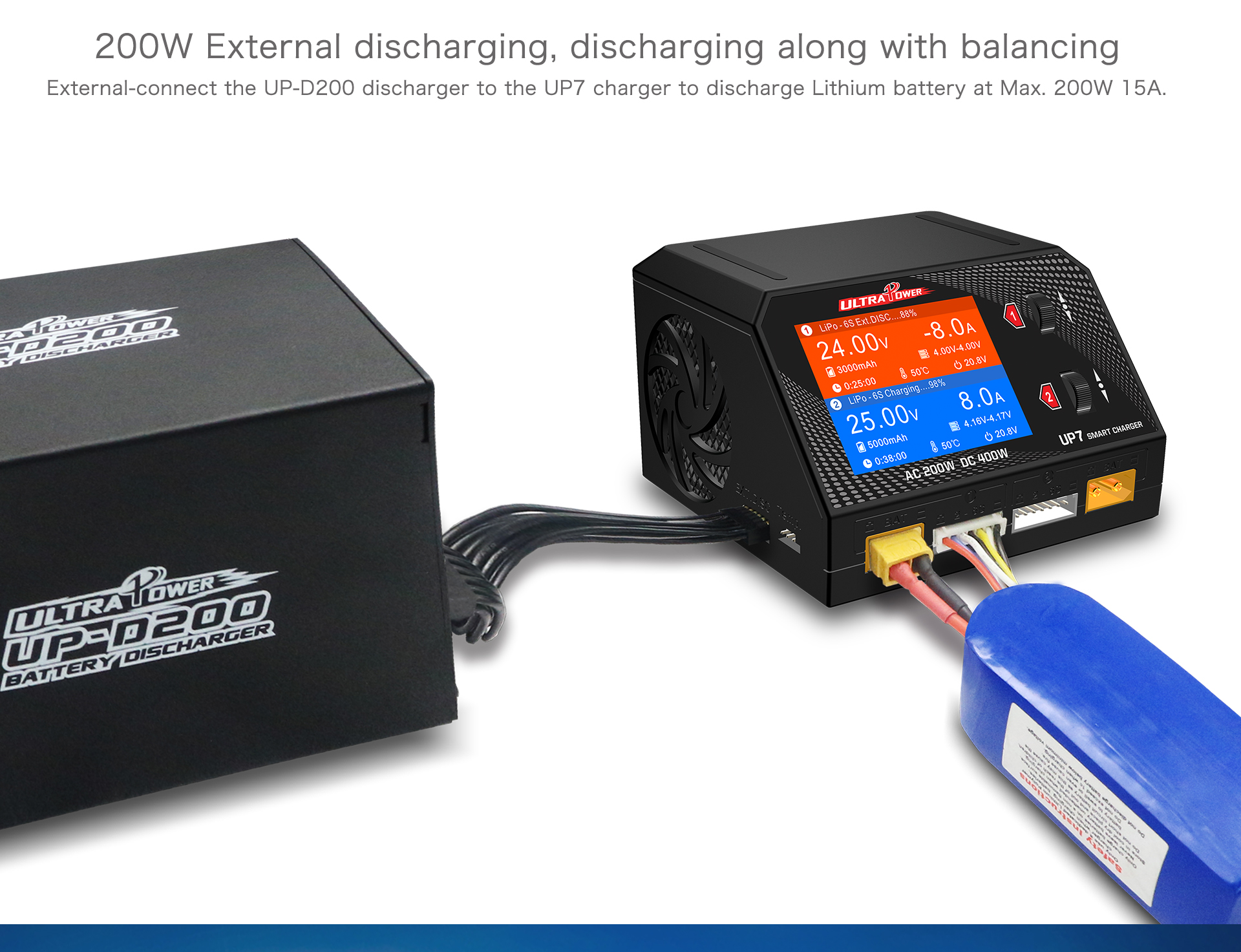

0.1-15.0A(External discharge mode)
CH2:0.1-2.0A

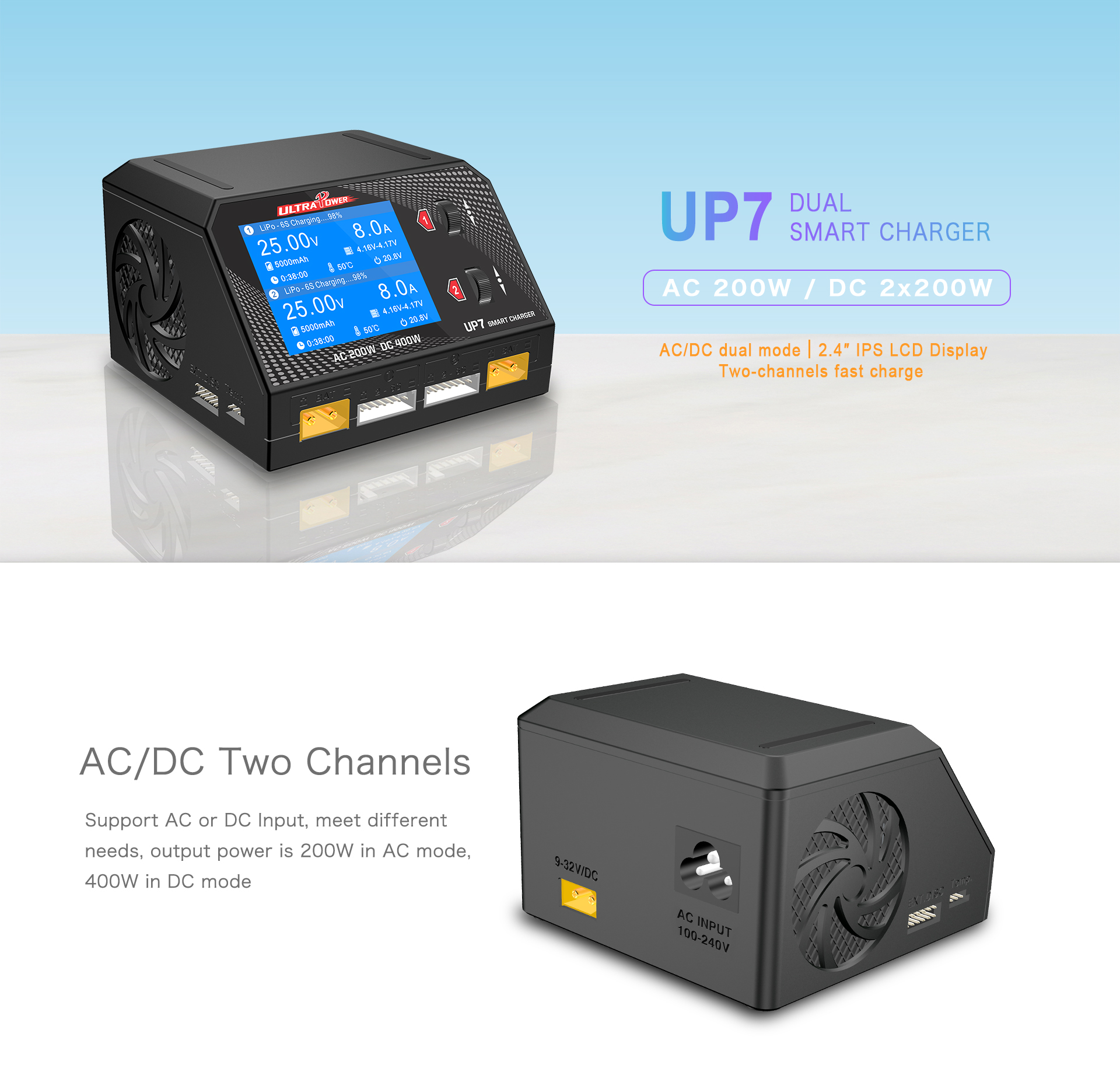

Charge Power: DC Input:2x200W
                        AC Input: Max.200W (CH1+CH2=200W)
Support power distribution
Discharge power: CH1:6W/200W(External discharge mode)   CH2:6W
Balance current: Max.1000mA/cell
LiPo/LiHV/LiIon/LiFe cell count: 1-6 cells
NiCd/NiMH battery cell count: 1-16 cells
Pb battery voltage: 2V-24V (1-12 cells)

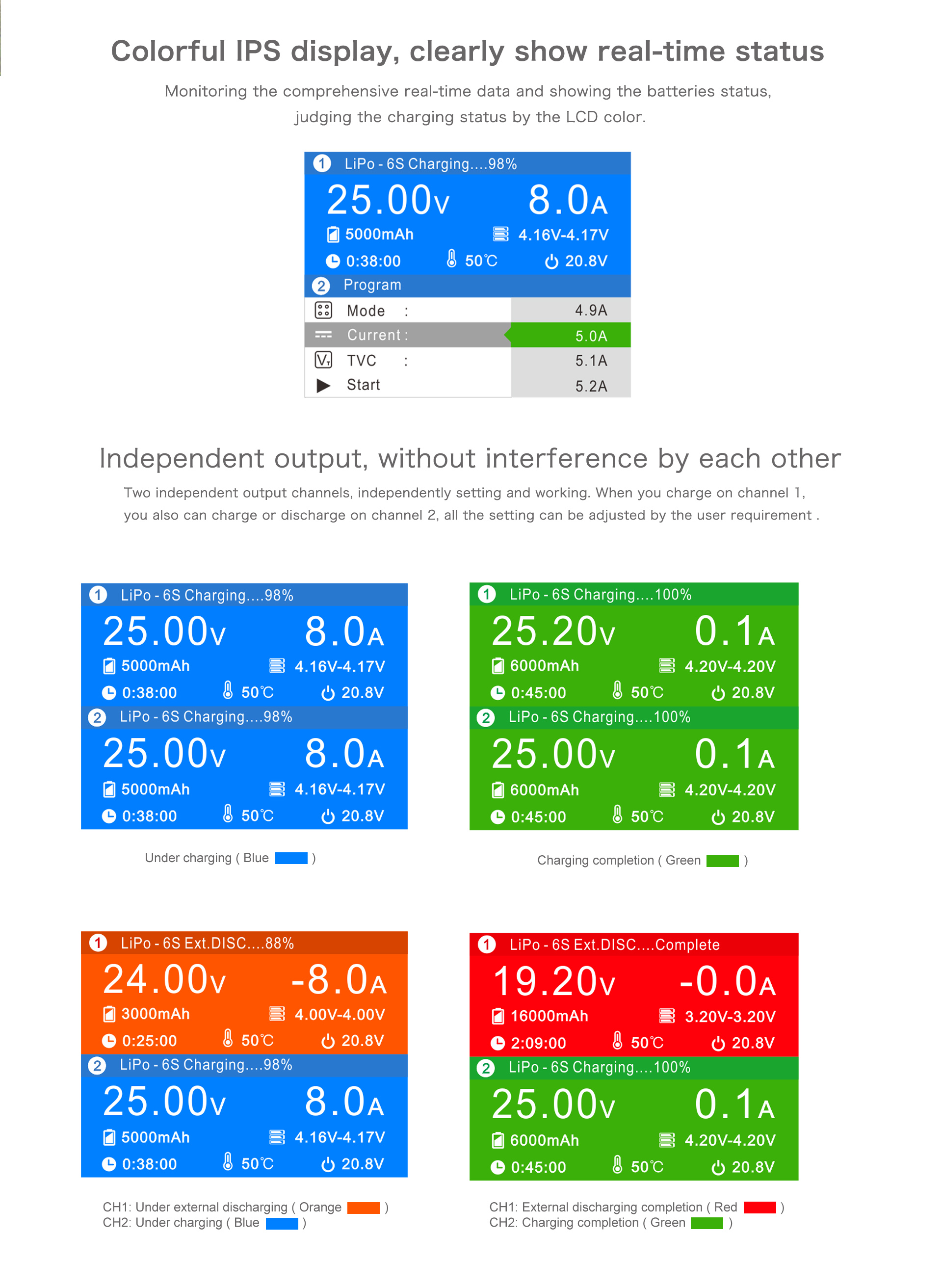

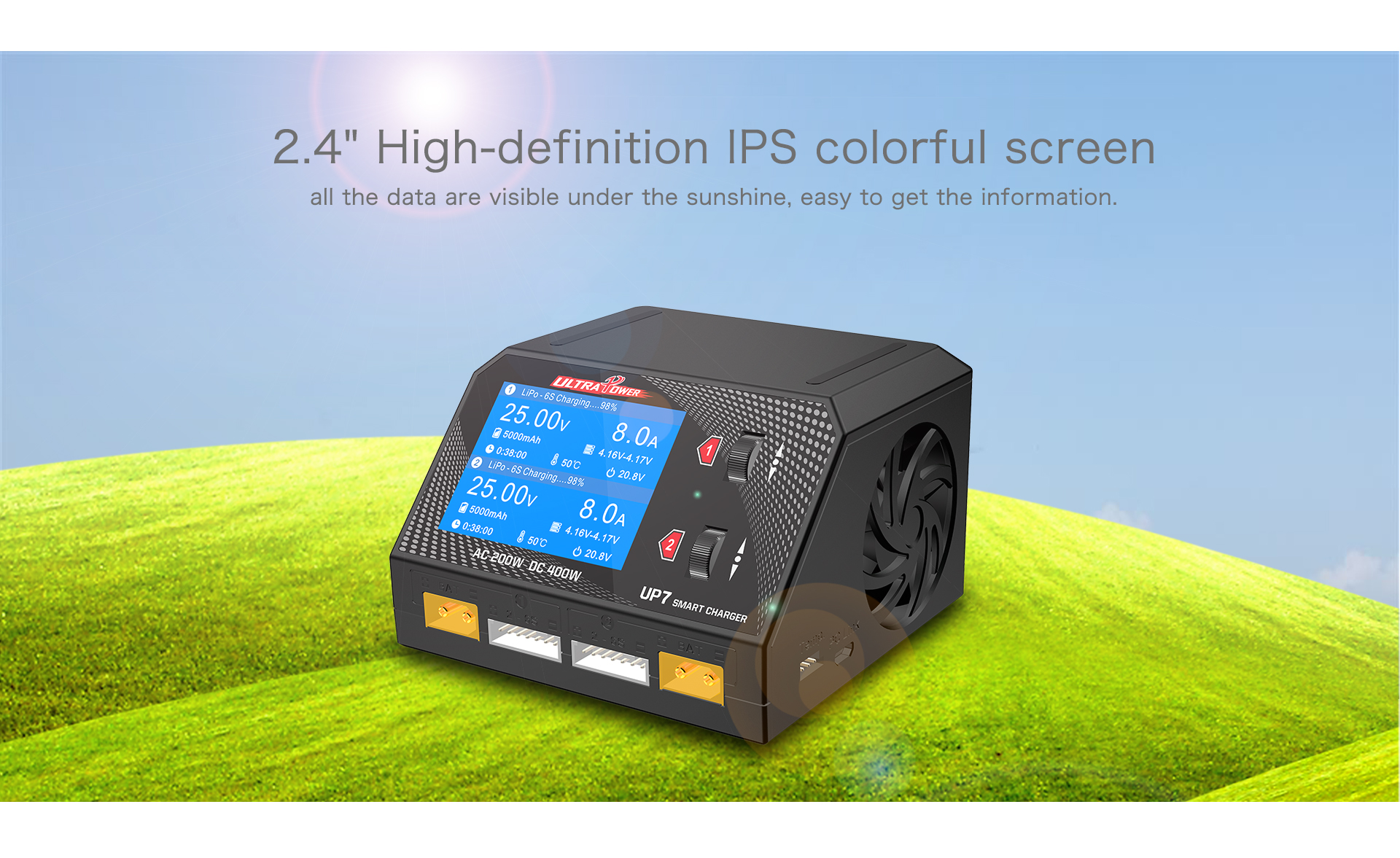

LCD Screen type: 2.4〃320×240 IPS LCD
Dimensions: 100x199x64mm
Weight: 450g

Includes/Requires:
Includes:
1 x UP7 charger
