Features:

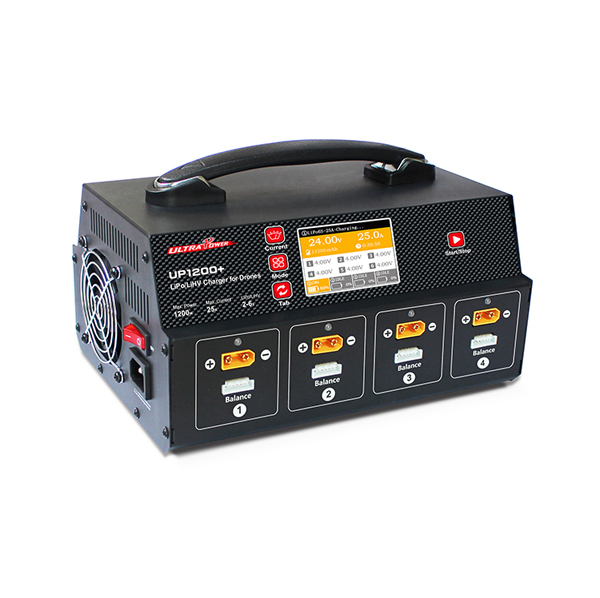

Ultra Power UP1200+ 25A UAV/Agricultural Drone Fast Balance Charger With Display Screen For 8 Channel 2-6S LiPo LiHV Battery


Compared with UP1200, UP1200+ have a color display screen to clearly show the charging status, the user can well know the charging data, like charging current, battery voltage, battery capacity, battery level, charging time etc.. Also, In addition to connecting 8 batteries, you can also connect a 2S/3S battery to the radio battery connection port.


Special Features

1.Three working mode: Charge/Fast Charge/Storage mode
2. Support charging 8 pcs of 2-6S LiPo/LiHV batteries and built-in charging nanny, 4 channels per side.
3. Each side works independently, the charger can automatically turn to the next battery pack once fully charged.
4. Support to charge/discharge with 8 battery packs simultaneously under storage mode.
5. With independent radio battery connection port, support to charge 2S/3S radio battery.
(Only one radio battery can be charged one time).
6. Memorizing last charging current.
7. Multiple protection function: over-voltage, over-current, reverse polarity, and over-temperature protection.
Specifications:

UltraPower UP1200+ 220V AC 1200W 2-6S 8-Channel Balance Charger


Specification



Product nameUAV Charger UP1200+ Eight Channels with display screen
Input voltageAC 220V
Charge power1200W(2x600W)
Discharge Power 280W (35Wx8)
Charge current range5A/10A/15A/20A/25A
Battery typeLiPo/LiHV
Battery cell count2 – 6S
Working modeCharge/Fast Charge/Storage
Balance current1.5A/cell
Net Weight4.61KG
Dimensions270X190X160 mm


UP1200+ .png

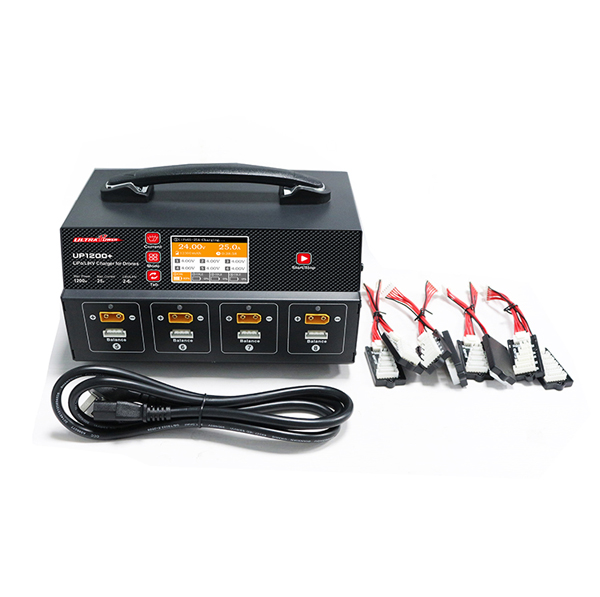

Includes/Requires:
Includes:


* The AC plug may vary from the picture, in case the AC plug isn't compatible with your local AC outlet, please use AC wall plug adaptor (NOT included) to solve this problem.
