Lithium Polymer (Li-poly) & Ni-Mh battery packs, battery chargers, Electric (Brushless) Motors, Electric Speed Controllers ( ESC ), Gyros, Electric Accessories etc.
   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Air/ Helis T-MOTOR 30A 2-4S Electric Speed Controller T30A
   Multi-rotors Electronic Speed Controller (ESC)
SKU:  T30ATM
Browse T-MOTOR

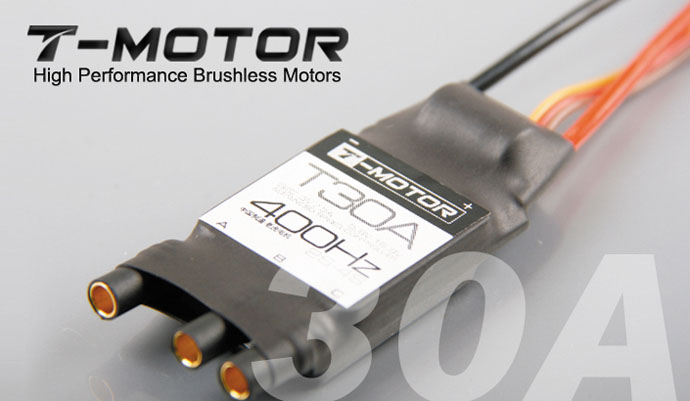

T-MOTOR 30A 2-4S Electric Speed Controller T30A
Customers rating.
Add To Wish List
Added:2014/06/04
Updated:2014/06/04
Follow Us on:


  Tags: T-motor speed controller  rctigermotor

Features:

Features

1.Extreme low output resistance, super current endurance.
2.Multiple protection features: Low-voltage cut-off protection / over-heat protection / throttle signal loss protection.
3. 3 start modes: Normal / Soft / Super-Soft, compatible with fixed-wing aircrafts and helicopters.
4.Throttle range can be configured and is fully compatible with all transmitters currently available on market.
5.Smooth, linear and precise throttle response.
6.Our pocket-sized Program Card can be purchased separately for extremely easily programming the ESC at the field.
7.With a program card, you can activate the music playing function of the ESC, and totally there are 15 songs can be selected

Specifications:

T-MOTOR 30A 2-4S Electric Speed Controller T30A

Specification

Output:  Continuous 30A, Burst 40A up to 10 Secs.
Input Voltage:  2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery.
BEC:  2A / 5V (Linear mode).
Max Speed:  210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM. (BLM: BrushLess Motor)
Size:  45mm (L) * 24mm (W) * 11mm (H).
Weight: 25g.
Includes/Requires:
Includes:
1 x ESC
