   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Boats Seaking-60A Waterproof Brushless ESC for Boats W/water-cooling system
SKU:  SKG60A
Other Items of Interest
Browse HOBBYWING

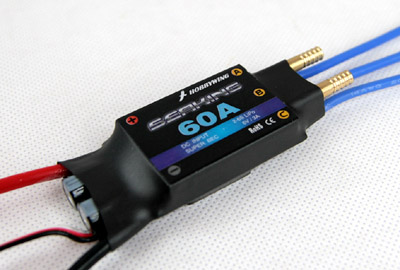

Seaking-60A Waterproof Brushless ESC for Boats W/water-cooling system
Customers rating.
Manual:
Add To Wish List
Added:2008/07/09
Updated:2009/07/29
Follow Us on:


  Tags: Seaking-60A  Waterproof  Brushless  ESC  for  Boats  W  water-cooling  system

Features:
"SeaKing" series ESC is specially designed for boat, so it has the water-cooling system and the whole ESC is waterproof.

● Use top quality electronic components to enhance the current endurance ability of the ESC.
● Special designed for RC boat, with excellent start-up, acceleration and linearity features.
● With water cooling system.
● The whole ESC is waterproof.
● With 2 running modes ("Forward Only" mode and "Forward/Backward" mode).
● With brake function.
● With 8 steps of timing adjustment to get the best compatibility with various of motors.

2.8 Multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection.
Specifications:
● Output: Continuous current 60A, burst current 380A.
● Input: 4-12 cells NiMH/NiCd or 2-4 cells LiPo. Note1
● BEC Output: 6V/1.5A.
● Resistance: 0.00075 Ohm.
● Motor Supported: Sensorless Brushless Motor
● External diameter of the water cooling pipe: 4.0mm
● Size: 31.5mm(L) * 27.5mm(W) * 24mm(H).
● Weight: 30g(Without wires)

Note1:
For 4-9 cells NiMH/NiCd or 2-3 cells Lipo: You needn’t change anything of the ESC.
For 10-12 cell NiMH/NiCd or 4 cell Lipo: You must disable the output of built-in BEC, and use a 3A UBEC to supply the receiver.

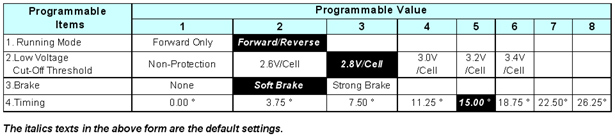

Programmable Items:
Includes/Requires:
Includes:
1 x ESC
1 x water colling system (pre-installed)
1 x Instruction manual (English)
