Lithium Polymer (Li-poly) & Ni-Mh battery packs, battery chargers, Electric (Brushless) Motors, Electric Speed Controllers ( ESC ), Gyros, Electric Accessories etc.
   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Boats Seaking-180A 2-6S Brushless ESC W/Water cooling for Boat V2
SKU:  SKG180
Other Items of Interest

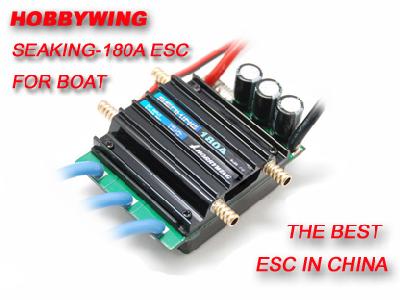

Seaking-180A 2-6S Brushless ESC W/Water cooling for Boat V2
Customers rating.
Add To Wish List
Follow Us on:

  Tags: Seaking-180A  2-6S  Brushless  ESC  W  Water  cooling  for  Boat  V2

● Use top quality electronic components to enhance the current endurance ability of the ESC.
● Special designed for RC boat, with excellent start-up, acceleration and linearity features.
● With water cooling system and the whole ESC is waterproof to get a longer life.
● With 2 running modes ("Forward" mode and "Forward/Backward" mode).
● Multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection.
● With 8 steps of timing adjustment, compatible with all kinds of sensorless brushless motors.
● Swtching mode built-in BEC has a very powerful output even working with 6 cells lipo battery.
● User programmable and compatible with the pocket-sized Digital LED Program Card (Optional equipment) to set the ESC easily.

"SeaKing" series ESC is specially designed for boat, so it has the water-cooling system and the whole ESC is waterproof.
● Output: Continuous current 180A, burst current 360A.
● Input: 6-18 cells NiMH/NiCd or 2-6 cells LiPo.
● BEC Output: 5.8V@3A Switching mode built-in BEC.
● Suitable Motor: Sensorless Brushless Motor
● External diameter of the water cooling pipe: 5.0mm
● Size: 72mm(L) * 68mm(W) * 34mm(H).
● Weight: 165g

The italics texts in the following form are the default settings.
Note1: The parameters in this line is available for Normal Voltage ESC (2 to 6 cells lipo)
Note2: The parameters in this line is available for High Voltage ESC (5 to 12 cells lipo)
1 x ESC
1 x water colling system (pre-installed)
1 x Instruction manual (English)
