   Electric (Brushless) Motors & Accessories Electric Brushless Motors - Inrunner SUXFLY 4074/1400KV 4-Poles Inrunner Brushless Motor 4074/3Y
SKU:  407414

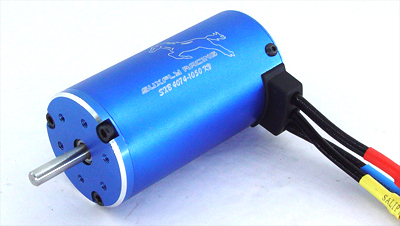

SUXFLY 4074/1400KV 4-Poles Inrunner Brushless Motor 4074/3Y
Customers rating.
Add To Wish List
Added:2011/06/15
Updated:2012/06/19
Follow Us on:



  Tags: 4-poles burshless motor

Features:
Compare to conventional 2-pole motors, the 4-pole motors feature:
- Higher efficiency.
- Larger torque.
- Lower heat productivity.
Specifications:
Model: 4074/3Y

Type Model Max Amp(A) Max Voltage(v)
 Battery (Li-Po) Max Power (W) KV RMP/V Resistance
(Ω)		 No-load Current（7.4V）
Diameter×Length (mm)
 Shaft diameter (mm) Weight (g)

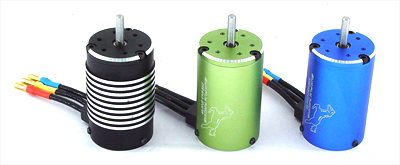

4074/2Y 120 20 3-5 S 2600 2150 0.0062 1.8A Φ39.8×73.8 Φ5.0 374
4074/2.5Y 100 24 3-6 S 2600 2000 0.0085 1.7A Φ39.8×73.8 Φ5.0 374
4074/3Y 80 35 3-9 S 2600 1400 0.0130 1.2A Φ39.8×73.8 Φ5.0 374

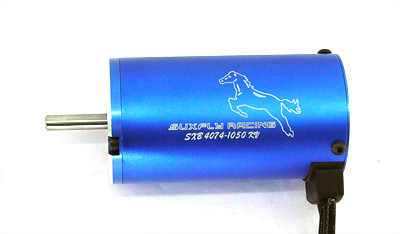

4074/4Y 65 45 3-12 S 2600 1050 0.0223 0.6A Φ39.8×73.8 Φ5.0 374


* Color of different batches may different, will send the color in random based on stock status.
Includes/Requires:
Includes:
1 x motor
3 x bullet connectors
