   Electric (Brushless) Motors & Accessories Electric Brushless Motors - Outrunner SUNNYSKY X3120 1025KV III Outrunner Brushless Motor V3
SKU:  X312010-3
SUNNYSKY X3120 1025KV III Outrunner Brushless Motor V3
Customers rating.
Add To Wish List
Added:2020/02/20
Updated:2020/02/20
Follow Us on:


  Tags: SUNNYSKY  X3120  1025KV  III  Outrunner  Brushless  Motor  V3

Specifications:

SUNNYSKY X3120 1025KV III Outrunner Brushless Motor V3



Specifications X3120
Stator Diameter 31mm
Stator Thickness 20mm
No.of Stator Arms 12
No.of Stator Poles 14
Motor Kv 1025
NO-Load Current(A/10V) 2.1A
Motor Resistance 16mΩ
Max Continuous Current 75A/30s
Max Continuous Power 1100W
Weight 158g
Outside Diameter 37.7mm
Body Length42mm

Max Lipo Cell 3S-4S
ESC 60-80A
Recommend Prop(inch) APC12*8/APC12*6/APC13*6.5/APC13*8

Recommended setting for Aerobatic airplanes: 1400g-1700g (3S APC13*6.5\APC12*6\APC12*8) (4S APC11*5.5\APC11*7\APC11*8)
Recommended setting for 3D airplanes: 1100g-1400g (3S APC13*6.5\APC13*8)

Prop(inch) Voltage (V)Amps(A) Thrust (gf)Watts (W)Efficiency
(g/W))
RPMTemperature @ full throttle
APC12*8 11.1 5.6 500 62.16 8.04 4220 88℃ 10min
9.6 750 106.56 7.04 5160
14.3 1000 158.73 6.30 5960
20.1 1250 223.11 5.60 6490
26.4 1500 293.04 5.12 7120
33.2 1750 368.52 4.75 7725
42.2 2000 468.42 4.27 8090
55.1 2350 611.61 3.84 8796
12.5 5 500 62.5 8.00 4235
8.65 750 108.125 6.94 5169
13 1000 162.5 6.15 5911
17.8 1250 222.5 5.62 6450
23.5 1500 293.75 5.11 7143
29.8 1750 372.5 4.70 7745
37.3 2000 466.25 4.29 8090
46.4 2250 580 3.88 8635
56 2500 700 3.57 9256
66.4 2720 830 3.28 9450
APC12*6 11.1 5.5 500 61.05 8.19 4635 78℃ 10min
9.1 750 101.01 7.43 5995
13.5 1000 149.85 6.67 6450
18.5 1250 205.35 6.09 7200
24.2 1500 268.62 5.58 7749
30.8 1750 341.88 5.12 8265
38.7 2000 429.57 4.66 8860
49.8 2390 552.78 4.32 9341
12.5 4.9 500 61.25 8.16 4695
8.3 750 103.75 7.23 5680
12.3 1000 153.75 6.50 6459
16.7 1250 208.75 5.99 7169
21.8 1500 272.5 5.50 7750
27.5 1750 343.75 5.09 8223
34.3 2000 428.75 4.66 8860
41.7 2250 521.25 4.32 9350
50.1 2500 626.25 3.99 9780
60.5 2840 756.25 3.76 10100
APC13*6.5 11.1 5.1 500 56.61 8.83 3975 70℃ 10min
8.8 750 97.68 7.68 4830
13.1 1000 145.41 6.88 5527
18.1 1250 200.91 6.22 6150
23.7 1500 263.07 5.70 6666
30.3 1750 336.33 5.20 7200
37.5 2000 416.25 4.80 7666
46.1 2250 511.71 4.40 8120
60 2652 666 3.98 8554
APC13*8 11.1 5.2 500 57.72 8.66 3750 75℃ 10min
9.1 750 101.01 7.43 4565
13.5 1000 149.85 6.67 5189
18.7 1250 207.57 6.02 5777
24.5 1500 271.95 5.52 6260
31.5 1750 349.65 5.01 6850
39.3 2000 436.23 4.58 7338
48 2250 532.8 4.22 7790
63.2 2660 701.52 3.79 8230










1400g-1800g (4S APC12*6\APC12*8\APC13*6.5\APC13*8)

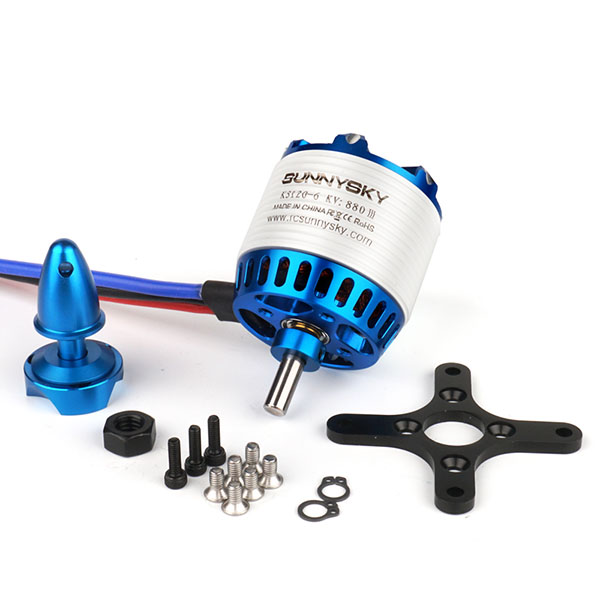

Includes/Requires:
Includes:
1 x motor
1 x accessory bag
