   Electric (Brushless) Motors & Accessories Electric Brushless Motors - Outrunner SUNNYSKY X1806S 2000KV Outrunner Brushless Motor CW/ CCW Combo
   Multi-rotors Motors
SKU:  X180620
SUNNYSKY X1806S 2000KV Outrunner Brushless Motor CW/ CCW Combo
Customers rating.
Add To Wish List
Added:2014/11/26
Updated:2014/11/26
Follow Us on:


  Tags: SUNNYSKY X1806S 2000KV Outrunner Brushless Motor CW/ CCW Combo

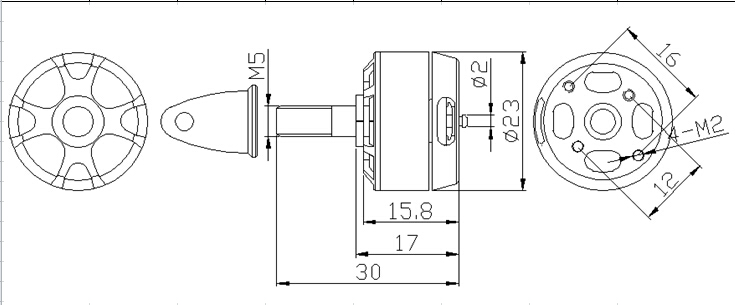

Specifications:

SUNNYSKY X1806S 2000KV Outrunner Brushless Motor CW/ CCW  Combo


Specifications X1806S
Stator Diameter 18mm
Stator Thickness 6mm
No. of Stator Arms 12
No. of Stator Poles 14
Motor Kv  2000
No-Load Current (A/10V)  0.5A
Motor Resistance  155mΩ
Max Continuous Current  12A/30S
Max Continuous Power 125W
Weight 20.5g
Outside Diameter 23mm
Shaft Diameter M5
Body Length 17mm
Overall Shaft Length 30mm
Max Lipo Cell  2-3S
Recommended Prop(inch) GWS5043/ APC6040

Prop
Volts
Amps
Thrust(g)
Watts (W)
Efficiency
(g/W)
Temperature @ full throttle under load
(inch)
(V)
(A)
GWS5043
11.1
0.6
50
6.66
7.5
1.5
100
16.65
6.0
2.6
150
28.86
5.2
3.5
200
38.85
5.1
4.9
250
54.39
4.6
6.3
310
69.93
4.4
41°
APC6040
7.4
1.1
50
8.14
6.1
2.5
100
18.5
5.4
4.1
150
30.34
4.9
6.1
210
45.14
4.7
40°
11.1
0.7
50
7.77
6.4
1.9
100
21.09
4.7
3.2
150
35.52
4.2
4.5
200
49.95
4.0
5.6
250
62.16
4.0
7
300
77.7
3.9
8.4
350
93.24
3.8
10.1
400
112.11
3.6
11.3
440
125.43
3.5
66°



Includes/Requires:
Includes:
1 x motor CW
1 x motor CCW
