   Electric (Brushless) Motors & Accessories Electric Brushless Motors - Outrunner SUNNYSKY X1306S 3100KV Outrunner Brushless Motor CW/ CCW Combo
   Multi-rotors Motors
SKU:  X130631

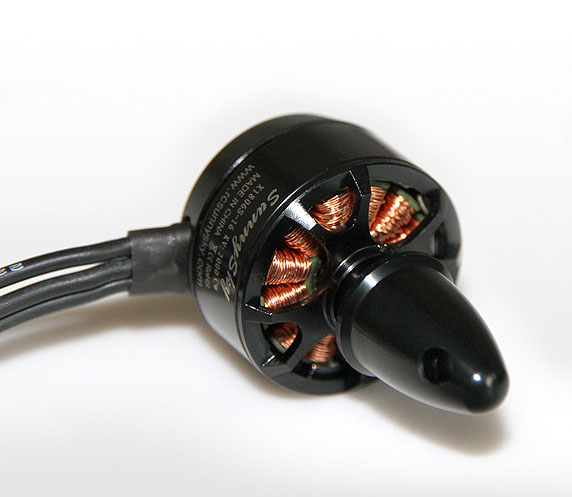

SUNNYSKY X1306S 3100KV Outrunner Brushless Motor CW/ CCW Combo
Customers rating.
Add To Wish List
Added:2014/11/26
Updated:2014/11/26
Follow Us on:



  Tags: SUNNYSKY X1306S 3100KV CW/ CCW Outrunner Brushless Motor Combo

Specifications:

SUNNYSKY X1306S 3100KV Outrunner Brushless Motor CW/ CCW  Combo

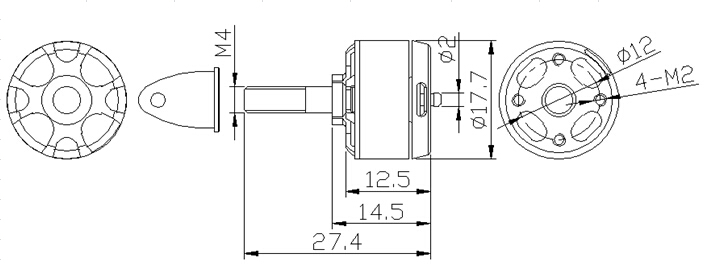

Specifications X1306S
Stator Diameter 13mm
Stator Thickness 6mm
No. of Stator Arms 9
No. of Stator Poles 12
Motor Kv  3100
No-Load Current (A/10V)  0.6A
Motor Resistance  0.28Ω
Max Continuous Current  8A/30S
Max Continuous Power 75W
Weight 11.5g
Outside Diameter 17.7mm
Shaft Diameter M4
Body Length 14.5mm
Overall Shaft Length 27.5mm
Max Lipo Cell  2S
Recommended Prop(inch) GWS5043



Prop
Volts
Amps
Thrust(g)
Watts (W)
Efficiency
(g/W)
Temperature @ full throttle under load
(inch)
(V)
(A)
GWS5043
7.4
0.7
30
5.18
5.8
1
40
7.4
5.4
1.4
50
10.36
4.8
1.8
60
13.32
4.5
2.2
70
16.28
4.3
2.6
80
19.24
4.2
3
90
22.2
4.1
3.5
100
25.9
3.9
4.5
120
33.3
3.6
5.5
140
40.7
3.4
6.7
160
49.58
3.2
8.5
200
62.9
3.2
45°


Includes/Requires:
Includes:
1 x motor CW
1 x motor CCW
