   Electric (Brushless) Motors & Accessories Electric Brushless Motors - Outrunner SUNNYSKY M5312 390KV Disk Type Motor for Large Scale Multi-rotor Aircraft
   Multi-rotors Motors
SKU:  M531239

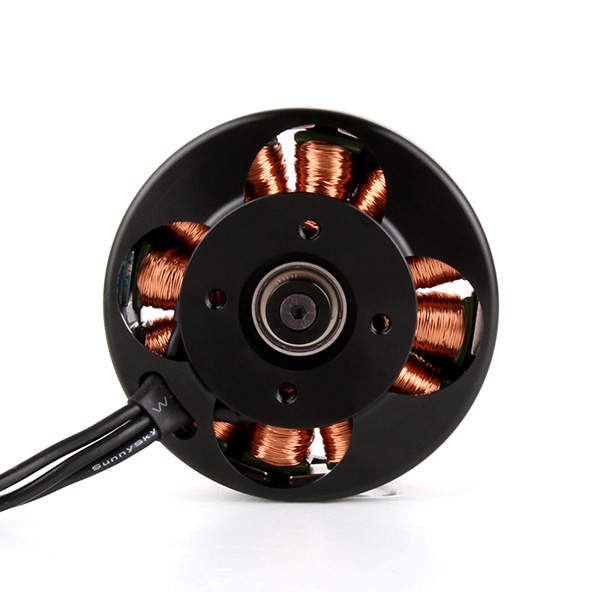

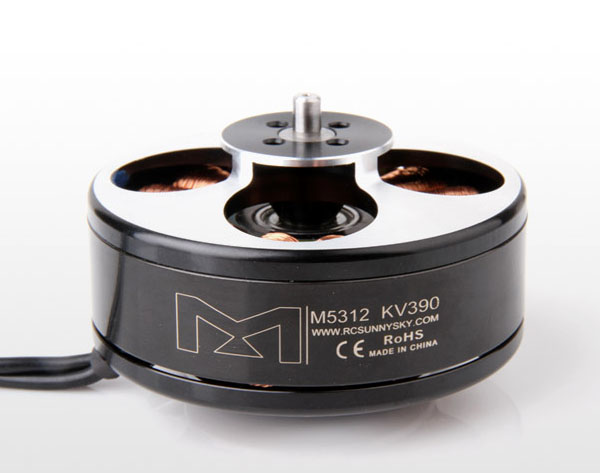

SUNNYSKY M5312 390KV Disk Type Motor for Large Scale Multi-rotor Aircraft
Customers rating.
Add To Wish List
Added:2014/11/19
Updated:2015/01/28
Follow Us on:


  Tags: SUNNYSKY M5312 390KV Disk Type Motor for Large Scale Multi-rotor Aircraft

Specifications:

SUNNYSKY M5312 390KV Disk Type Motor for Large Scale Multi-rotor Aircraft




Application: specially designed for large scale multi-rotor aircrafts.
Recommended flight weight < 1500g x axis number


Specifications M5312
Stator Diameter 53mm
Stator Thickness 12mm
No. of Stator Arms 12
No. of Stator Poles 14
Motor Kv  390
No-Load Current (A/10V)  1A
Motor Resistance  57mΩ
Max Continuous Current  40A/30S
Max Continuous Power 1000W
Weight 262g
Outside Diameter mm
Shaft Diameter 4mm
Body Length mm
Overall Shaft Length mm
Max Lipo Cell  6S
ESC 40A
Recommended Prop(inch) TM17x5.8/ TM18x6.1



PropVoltsAmps Thrust(g)Watts (W)EfficiencyTemperature under full throttle
(inch)(V)(A)(g/W)
TM17x5.822.2132022.214.41441441
255044.412.38738739
374066.611.11111111
492088.810.36036036
510801119.72972973
61230133.29.234234234
71380155.48.88030888
81520177.68.558558559
91620199.88.108108108
1017702227.972972973
122000266.47.507507508
1523303336.996996997
182680399.66.706706707
212960466.26.349206349
243210532.86.024774775
273440599.45.739072406
3036706665.510510511
34.94100774.785.29182477660°
TM18x6.122.2132022.214.41441441
255044.412.38738739
374066.611.11111111
492088.810.36036036
510801119.72972973
61230133.29.234234234
71380155.48.88030888
81520177.68.558558559
91630199.88.158158158
1017702227.972972973
122010266.47.545045045
1523303336.996996997
182600399.66.506506507
212870466.26.156156156
243150532.85.912162162
273390599.45.655655656
3036606665.495495495
333890732.65.30985531
364050799.25.067567568
394210865.84.862554863
41.44400919.084.787396092
434540954.64.75591870973°

Includes/Requires:
Includes:
1 x motor
