   Electric (Brushless) Motors & Accessories SCORPION SII-4035-250KV Brushless Motor
   Multi-rotors Motors
SKU:  SII4035-25

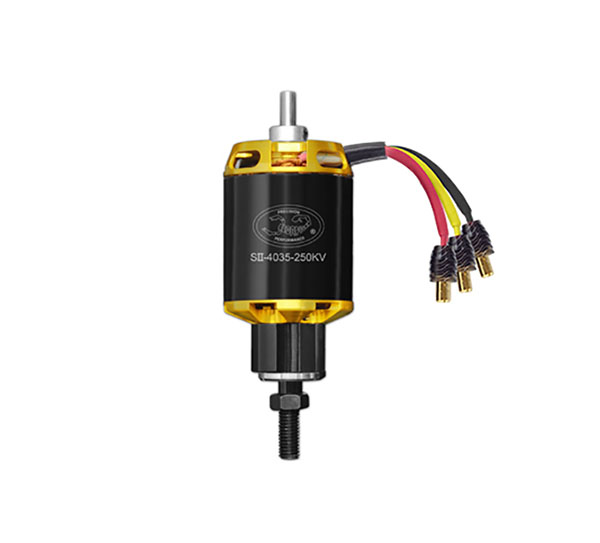

SCORPION SII-4035-250KV Brushless Motor
Customers rating.
Add To Wish List
Follow Us on:

  Tags: SCORPION  SII-4035-250KV  Brushless  Motor


SCORPION SII-4035-250KV Brushless Motor

Stator Diameter40.0 mm (1.575 in)
Stator Thickness 35.0 mm (1.024 in)
No. of Stator Arms 12
Magnet Poles 14
Motor Wind 15 Turn Delta
Motor Wire 19-Strand 0.25mm
Motor Kv 250 RPM / Volt
No-Load Current (Io) @ 10 v 0.69 Amps
Motor Resistance (Rm) 0.037 Ohms
Max Continuous Current 65 Amps
Max Continuous Power 2700 Watts
Weight 450 Grams (15.87 oz)
Outside Diameter 48.8 mm (1.921 in)
Shaft Diameter 7.98 mm (0.30 in)
Body Length 64.9 mm (2.26 in)
Overall Shaft Length 95 mm (3.346 in)
Max Lipo Cell 12s
Motor Timing 5deg
Drive Frequency 8kHz
1 x SCORPION Motor
