PARTON 2.4G 200mW A/V Transmitting/receiving System

SKU: BT2402

PARTON 2.4G 200mW A/V Transmitting/receiving System

Customers rating.

Add To Wish List

Added:2010/05/12
Updated:2013/10/11

Follow @HiModel

Tags: video recording system FPV telemetry system audio & video transmitter

Features:

High sensitivity, many working channels, convenience, credibility, suit for wireless surveillance and FPV projects.

Specifications:

PARTON 2.4G 200mW A/V Transmitting/receiving System

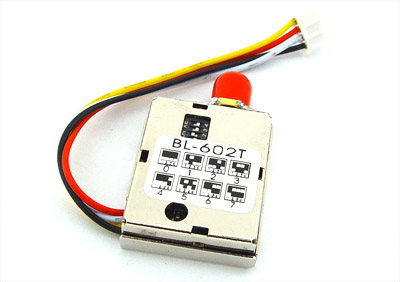

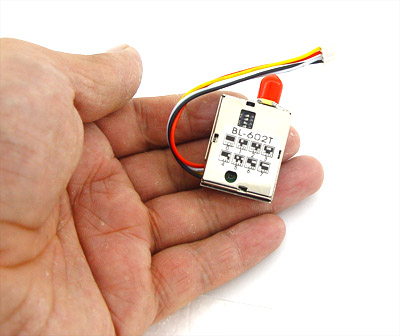

Transmitter:
Power input: 12V ± 5%
Transmitting current: 150mA
Channel number: 4-ch
Output power: 200mW
Transmitting distance (air to ground): 250m (for reference only, the distance may vary a lot depending on the environments)
Dimension: 18 x 28 x 31mm
Weight: 15g

RECEIVER:
Channel number: 12 channels
Voltage: DC 7-12V
Output current: 250mA
Video output: 1Vp-p
Audio Output: 1Vp-p

Working frequency:
CH1/CH5: 2410/2370MHz
CH2/CH6: 2430/2390MHz
CH3/CH7: 2450/2490MHz
CH4/CH8: 2470/2510MHz

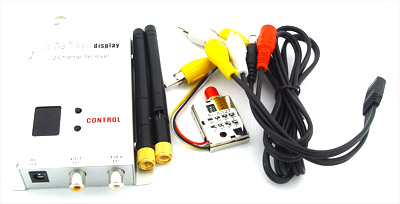

Includes/Requires:

Includes:
1 x transmitting unit
1 x receiving unit
1 x AV cable
1 x TX cable
1 x instruction manual
