   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Air/ Helis ICE Series 60A 2-6S Brushless Speed Control for Airplane/Helicopter Type FLY 60A-ICE SB
SKU:  ICE60A
Other Items of Interest
Browse HiModel

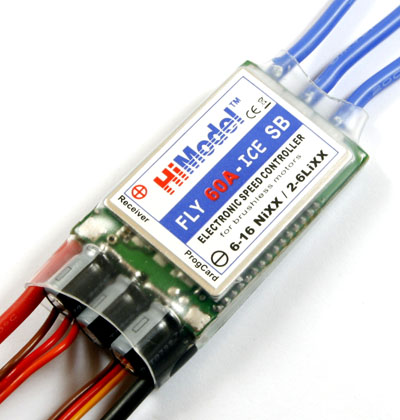

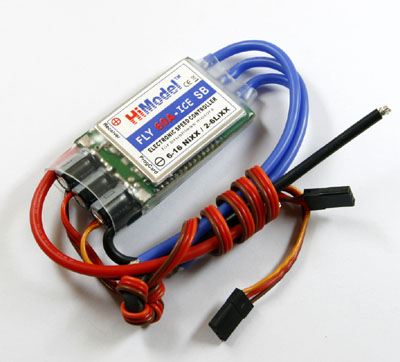

ICE Series 60A 2-6S Brushless Speed Control for Airplane/Helicopter Type FLY 60A-ICE SB
Customers rating.
Manual:
Add To Wish List
Bookmark and Share
Added:2011/07/26
Updated:2013/06/14
Follow Us on:

I7C080278319

PRICE(USD):
    $28.45   Limited QTY
Member PRICE:
    Sign in or Sign up for member price

QTY:


  Tags: ICE  Series  60A  2-6S  Brushless  Speed  Control  for  Airplane  Helicopter  Type  FLY  60A-ICE  SB

Features:
* Compatible with a programming card to change and set parameters easily and conveniently
* Super fine and smooth touch of speed controlling, first-rate accurate linearity
* Soft Start-up mode and Constant RPM mode (Governor mode)
* adjustable F3A brake.
* 3 steps adjustable regular back EMF brake.
* High capability of anti-interference
* Low-voltage cut-off protection for per cell battery
* Under-voltage cutoff
* Under-voltage can be disabled
* Under-voltage with automatic adjustment for NiCd/NiMH/Li-Ion/LiPo/LiFePO4
* Variable cutoff voltage / cell
* Slow down instead of cutoff
* Active freewheeling circuit
* LED status display
* Timing of motor ranges from 0° to 30°
* Blocked rotation protection
* Reversible rotation direction
* Over-temperature protection and Overload alarm
* Anti sparkling circuit: reduces connection sparkles
* Throttle signal lose protection. When the signal loses for 3 seconds, the power will automatically cut off.
* Safe power-on. The motor won’t start no matter which position the throttle stick is when battery connected
***This series ESC can be compatible with both helicopter and airplane.***
Specifications:
Type: FLY 60A-ICE SB
Size: 64 x 32.8 x 13.3 mm
Constant Current: 60A
Max Current: 80A for 10 seconds
Input Voltage: 2-6 cells li-XX or 6-16 Ni-MH/Ni-Cd battery
BEC: yes, Switch BEC
BEC Output: 5.5V/6A
PWM: 8-16 KHz
Max RPM: 240,000rpm for 2 Poles Brushless Motor
Weight: 56g

* In the latest version, the cable for programe card and cable for throttle are combined into one, you can programe the ESC by connecting your programe card to the throttle cable.




Includes/Requires:
Includes:
1 x ESC

* battery and motor connectors are not included.
Customers who bought the above may also need
PictureStock NumberManufacturer & Product DescriptionPriceQTYSelectStock Status
Click for the detail!ICEPCDLED Program Card for ICE Seires ESCs$7.07Limited QTY
Customer Reviews:
Average Customer Review: 4 stars   4 customer review(s).   [Write a review/question]

w****iguel
Grade:
very good esc. Gov and Gov store modes hold speed perfectly.
Very easy to configure with programmable card.
August 22 2012     Was this review helpful to you?   Yes [ 1 ]   No [ 0 ]    [Reply this review]


p****
Grade:
Great Esc. I have been running it in a Protos 500 helicopter. Running GOV store mode and it holds speed very well. Great value for money.
May 14 2012     Was this review helpful to you?   Yes [ 2 ]   No [ 0 ]    [Reply this review]


m****i69
Grade:
and I arrived a month ago, tried to counter was running yesterday, I mount it on one of my aircraft warning light comes on but does not emit any sound and does not seem to go in two phases, and is already the second controller as the first fly60pro it is attached and burned right away (I'm still waiting HiModel written response)
January 06 2012     Was this review helpful to you?   Yes [ 1 ]   No [ 0 ]    [Reply this review]


m****i69
Grade:
mi e arrivato un mese fa,provato a banco era funzionante,ieri lo monto su uno dei miei aerei si accende la spia ma non emette più alcun suono e non funziona sembra vada a due fasi,ed e già il secondo regolatore il primo fly60pro come lo collegato si e bruciato subito (ho scritto a himodel sto ancora aspettando risposta)
January 06 2012     Was this review helpful to you?   Yes [ 0 ]   No [ 0 ]    [Reply this review]
