   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Air/ Helis ICE Series 120A 4-14S ESC for Airplane/Helicopter Type FLY 120A-ICE HV
SKU:  ICE120HV
Other Items of Interest
Browse HiModel

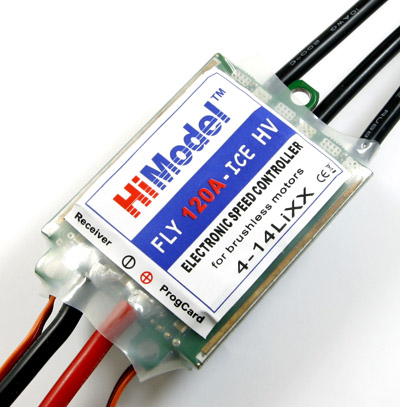

ICE Series 120A 4-14S ESC for Airplane/Helicopter Type FLY 120A-ICE HV
Customers rating.
Manual:
Add To Wish List
Bookmark and Share
Added:2011/07/26
Updated:2013/06/14
Follow Us on:

I1C682298878

PRICE(USD):
    $88.24   Discontinued  Suggesting Restock
Member PRICE:
    Sign in or Sign up for member price

  Tags: ICE  Series  120A  4-14S  ESC  for  Airplane  Helicopter  Type  FLY  120A-ICE  HV

Features:
* Compatible with a programming card to change and set parameters easily and conveniently
* Super fine and smooth touch of speed controlling, first-rate accurate linearity
* Soft Start-up mode and Constant RPM mode (Governor mode)
* adjustable F3A brake.
* 3 steps adjustable regular back EMF brake.
* High capability of anti-interference
* Low-voltage cut-off protection for per cell battery
* Under-voltage cutoff
* Under-voltage can be disabled
* Under-voltage with automatic adjustment for NiCd/NiMH/Li-Ion/LiPo/LiFePO4
* Variable cutoff voltage / cell
* Slow down instead of cutoff
* Active freewheeling circuit
* LED status display
* Timing of motor ranges from 0° to 30°
* Blocked rotation protection
* Reversible rotation direction
* Over-temperature protection and Overload alarm
* Anti sparkling circuit: reduces connection sparkles
* Throttle signal lose protection. When the signal loses for 3 seconds, the power will automatically cut off.
* Safe power-on. The motor won’t start no matter which position the throttle stick is when battery connected
***This series ESC can be compatible with both helicopter and airplane.***
Specifications:
Type: FLY 120A-ICE HV
Constant Current: 120A
Max Current: 140A for 10 seconds
Input Voltage: 4-14 cells li-XX or 12-42 Ni-MH/Ni-Cd battery
BEC: none, OPTO
BEC Output: none
PWM: 8-16 KHz
Max RPM: 240,000rpm for 2 Poles Brushless Motor
Size: 85mm x 53mm x 30mm
Weight: 102g

*This ESC is OPTO version and does not have BEC output, which means you need a separate RX battery pack or external BEC unit to power the receiver and servos.

* In the latest version, the cable for programe card and cable for throttle are combined into one, you can programe the ESC by connecting your programe card to the throttle cable.



Includes/Requires:
Includes:
1 x ESC

* battery and motor connectors are not included.

Link of English version manual can be found on top-right box of the page.

Refer to here for French Version Instruction Manual. (Translated and contributed by "mat081278")
Customers who bought the above may also need
PictureStock NumberManufacturer & Product DescriptionPriceQTYSelectStock Status
Click for the detail!ICEPCDLED Program Card for ICE Seires ESCs$7.07Limited QTY
Customer Reviews:
Average Customer Review: 4.5 stars   9 customer review(s).   [Write a review/question]

nospa****kbox.de
Question :
Is this the new one with build in RPM Sensor?
October 06 2013     Was this question helpful to you?   Yes [ 0 ]   No [ 0 ]    [Reply this question]


M****y2
Grade:
Hello,
Whatever Is différence with the hobbyking Ygp 120 Hv, he has a différence weight between this Town controllers.
Thank for reponse
Best regards
Michel
September 30 2012     Was this review helpful to you?   Yes [ 0 ]   No [ 0 ]    [Reply this review]
Discussion of this review:

Nothing ;-)
-- Nov 16 2013 by nospa****kbox.de


n****al
Grade:
Unlike many other esc's there are some settngs YOU CAN NOT CHANGE WITHOUT A PROGRAMMING CARD. GET one witht it.
Hav'nt been able to feel ANY heat from it yet.
August 18 2012     Was this review helpful to you?   Yes [ 1 ]   No [ 0 ]    [Reply this review]


t****rc56
Grade:
exactly same of yge 120.... tested very hard 3d with t700e no problem ;the gouv store is very very good; just made a jumper for the small link.....

May 07 2012     Was this review helpful to you?   Yes [ 4 ]   No [ 0 ]    [Reply this review]


e****771
Grade:
WOW!!! WOW!! Please keep this in stock at such a good price.

Ran on 12s 139 amps WITHOUT putting it in air stream and got 15.4 lbs of thrust using Change Sun 120mm 12blade fan at around 5100 watts with a small motor.
February 29 2012     Was this review helpful to you?   Yes [ 4 ]   No [ 0 ]    [Reply this review]


a****ara
Grade:
Good ESC, i use it for heli application with 6S setup. Start up is slow and smooth, absolutely no problem. Programming with progcard is total easy and reliable. At time i don´t tested the goveror mode. I will add this information in future. I used the YGE Manual for setup, seems to be similar..... I had peak loads of about 100A without problems, ESC is slightly warm after flight.
November 10 2011     Was this review helpful to you?   Yes [ 2 ]   No [ 0 ]    [Reply this review]


f****o169
Grade:
This ESC wrecked a $36 mod 1 main gear on a T-Rex 600 esp Modified with a 12s setup. The first flight once in the air was fine but it has no slow start and wrecked the gear on the second spool up attempt. Tried programming the slow start with the Tx and the programming card but nothing changed.
November 08 2011     Was this review helpful to you?   Yes [ 1 ]   No [ 1 ]    [Reply this review]
Discussion of this review:

Thats a programming error on your part, not the ESC's fault, buy the program card for 5.00!
-- May 08 2012 by y****r


f****o169
Grade:
The soft start is very fast but otherwise it is working well. I've only had five flights but if anything changes I will update this review.
October 13 2011     Was this review helpful to you?   Yes [ 3 ]   No [ 0 ]    [Reply this review]


F****ICIODUTRA
Grade:
hi,
been tested?
reliable?
August 26 2011     Was this review helpful to you?   Yes [ 1 ]   No [ 8 ]    [Reply this review]
Discussion of this review:

I just bench tested and they are identical to the YGE counterpart! great ESC!
-- May 08 2012 by y****r
