   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Air/ Helis Hobbywing SKYWALKER Series 3-8S 120A-V2 UBEC Electric Speed Control (ESC) SkyWalker-120A-V2UBEC
SKU:  SW-120A
Browse HOBBYWING

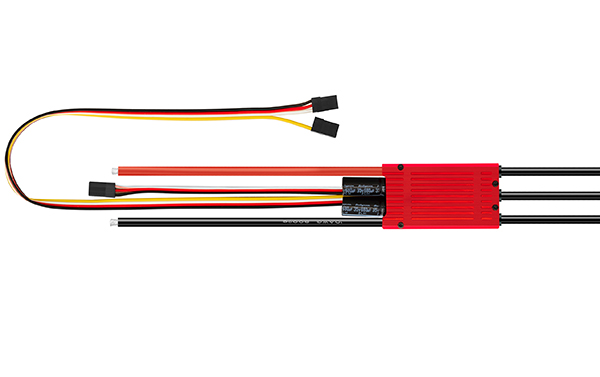

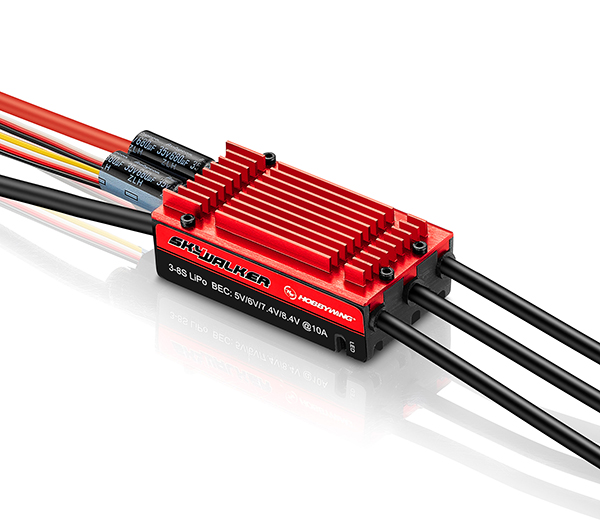

Hobbywing SKYWALKER Series 3-8S 120A-V2 UBEC Electric Speed Control (ESC) SkyWalker-120A-V2UBEC
Customers rating.
Add To Wish List
Added:2024/03/06
Updated:2024/03/06
Follow Us on:



  Tags: Hobbywing  SKYWALKER  Series  3-8S  120A-V2  UBEC  Electric  Speed  Control  ESC  SkyWalker-120A-V2UBEC

Specifications:

Hobbywing SKYWALKER Series 3-8S 120A-V2 UBEC Electric Speed Control (ESC) SkyWalker-120A-V2UBEC


Product Name   Skywalker 120A V2
Product Number   30205450
Type Brushed/Brushless

High Voltage/Regular		 BL

Regular
Specifications Cont./Peak Current

Input

BEC Output		 120A/150A

3-8S LiPo

Switch Mode:5V/6V/7.4V/8.4V adjustable，10A/30A
Wires & Connectors Input Wires



Output Wires

Input Connectors

Output Connecotors		 Red-10AWG-150mm*1

Black-10AWG-150mm*1

Black-12AWG-100mm*3

No

4.0 Gold Connectors (Female)
ESC Programing via Transmitter

LED Program Card

LED Program Box

LCD Program Box

WiFi Module

OTA Programmer

Program Port		 Supported

Not Supported

Supported

Not Supported

Not Supported

Not Supported

Program Wire Firmware
Firmware Firmware Upgrade Not Supported
Size & Weight Size

Weight		 83x35x22mm

117g
Includes/Requires:
Includes:
1 x ESC Skywalker 120A V2
