   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Cars Hobbywing QuicRun WP-8BL150 150A Waterproofing Brushless ESC for Cars
SKU:  WP8BL150
Browse HOBBYWING

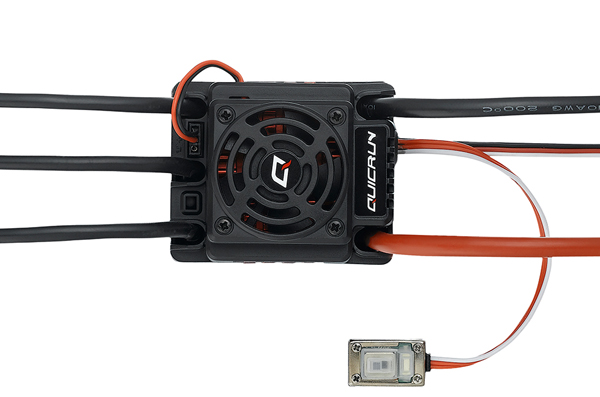

Hobbywing QuicRun WP-8BL150 150A Waterproofing Brushless ESC for Cars
Customers rating.
Add To Wish List
Added:2021/10/23
Updated:2021/10/23
Follow Us on:


  Tags: Hobbywing  QuicRun  WP-8BL150  150A  Waterproofing  Brushless  ESC  for  Cars

Features:

Specifications:

Hobbywing QuicRun WP-8BL150 150A Waterproofing Brushless ESC for Cars


Product Name

QuicRun WP 8BL150

Product Number

30109000

Type

Scale

1/8th

Brushed/Brushless

BL

Sensored/Sensorless

SL

Waterproof

WP

Specifications

Cont./Peak Current

150A/950A

Input

3-6S LiPo/9-18 Cells NiMH

BEC Output

Switch Mode:6V/3A

Wires & Connectors

Input Wires

Red-10AWG-150mm*1/Black-10AWG-150mm*1

Output Wires

Black-12AWG-150mm*3

Input Connectors

No

Output Connecotors

No

(Note: All the wire length above is the original length not the length you see from the outside.)

Fan

Size

35.0x35.0x10.0mm

Voltage Range

5-7.4V

Powered by

Powered by BEC

ESC Programing via

SET Button on ESC

Supported

LED Program Box

Supported

LCD Program Box

Not Supported

WiFi Module

Not Supported

OTA Programmer

Not Supported

Program Port

FAN/Program Port

Firmware

Firmware Upgrade

Not Supported

Size & Weight

Size

59.5x48.0x42.0mm

Weight

178g

Applications

Motors

SL BL Motors/SD BL Motors(only in SL mode)

Vehicles

1/8th Touring Cars/Buggies/Trucks/Monster Trucks

KV Rating/T Count

4S LiPo:KV≤3000;
6S LiPo:KV≤2400
(40XX Series of Motors)

Programmable Items


Installation & Connection




Includes/Requires:
Includes:
1 x ESC
