   Electric Electric Speed Control (ESC) Brushed Speed Control (ESC) Hobbywing QuicRun WP-1625 Brushed 25A Waterproofing ESC for Cars
SKU:  QR-1625
Browse HOBBYWING

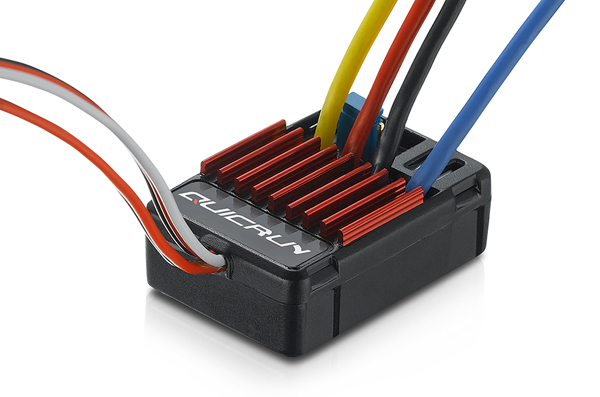

Hobbywing QuicRun WP-1625 Brushed 25A Waterproofing ESC for Cars
Customers rating.
Add To Wish List
Added:2021/10/23
Updated:2021/10/23
Follow Us on:


  Tags: Hobbywing  QuicRun  WP-1625  Brushed  25A  Waterproofing  ESC  for  Cars

Features:

Specifications:

Hobbywing QuicRun WP-1625 Brushed 25A Waterproofing ESC for Cars



Product Name

QuicRun WP 1625 Brushed

Product Number

30120000

Type

Scale

1/16th、1/18th

Brushed/Brushless

Brushed

Sensored/Sensorless

-

Waterproof

WP

Specifications

Cont./Peak Current

25A/100A

Input

2-3S LiPo/6-9 Cells NiMH

BEC Output

Linear Mode:6V/1A

Wires & Connectors

Input Wires

Red-18AWG-75mm*1/Black-18AWG-75mm*1

Output Wires

B lue-18AWG-75mm*1/Yellow-18AWG-75mm*1

Input Connectors

Small-sized TAMIYA Connector

Output Connecotors

4.0 Bullet Connectors (Female)

(Note: All the wire length above is the original length not the length you see from the outside.)

Fan

Size

No

Voltage Range

No

Powered by

No

ESC Programing via

SET Button on ESC

Not Supported

LED Program Box

Not Supported

LCD Program Box

Not Supported

WiFi Module

Not Supported

OTA Programmer

Not Supported

Program Port

Jumper Cap

Firmware

Firmware Upgrade

Not Supported

Size & Weight

Size

34.0x24.0x14.0mm

Weight

24g

Applications

Motors

Brushed Motors

Vehicles

1/16th, 1/18th Touring Cars/Buggies/Monster Trucks

KV Rating/T Count

2S LiPo: RPM≤30000
3S LiPo: RPM≤20000
(280/370/380 Size Motors)

Programmable Items








Installation & Connection



Includes/Requires:
Includes:
1 x ESC QuicRun WP 1625 Brushed
