   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Cars Hobbywing QuicRun-WP-16BL30 30A Waterproofing Brushless ESC for Cars
SKU:  WP10BL30
Browse HOBBYWING
Hobbywing QuicRun-WP-16BL30 30A Waterproofing Brushless ESC for Cars
Customers rating.
Add To Wish List
Added:2021/10/23
Updated:2021/10/23
Follow Us on:


  Tags: Hobbywing  QuicRun-WP-16BL30  30A  Waterproofing  Brushless  ESC  for  Cars

Features:

Specifications:

Hobbywing QuicRun-WP-16BL30 30A Waterproofing Brushless ESC for Cars


Product Name

QuicRun WP 16BL30

Product Number

30110000

Type

Scale

1/16th、1/18th

Brushed/Brushless

BL

Sensored/Sensorless

SL

Waterproof

WP

Specifications

Cont./Peak Current

30A/180A

Input

2-3S LiPo/6-9 Cells NiMH

BEC Output

Linear Mode:6V/1A

Wires & Connectors

Input Wires

Red-16AWG-75mm*1/Black-16AWG-75mm*1

Output Wires

Black-16AWG-75mm*3

Input Connectors

Small-sized TAMIYA Connector

Output Connecotors

3.5 Gold Connector (Female)

(Note: All the wire length above is the original length not the length you see from the outside.)

Fan

Size

No

Voltage Range

No

Powered by

No

ESC Programing via

SET Button on ESC

Supported

LED Program Box

Supported

LCD Program Box

Not Supported

WiFi Module

Not Supported

OTA Programmer

Not Supported

Program Port

Program/Throttle Wire

Firmware

Firmware Upgrade

Not Supported

Size & Weight

Size

36.0x28.0x18.0mm

Weight

38g

Applications

Motors

SL BL Motors/SD BL Motors(only in SL mode)

Vehicles

1/16th, 1/18th Touring Cars/Buggies/Trucks/Monster Trucks

KV Rating/T Count

2S LiPo: 1/10th Touring Cars KV≤8000, 1/10th Buggies KV≤5000
3S LiPo: 1/10th Touring Cars KV≤5500, 1/10th Buggies KV≤3500
(2435 Motors)

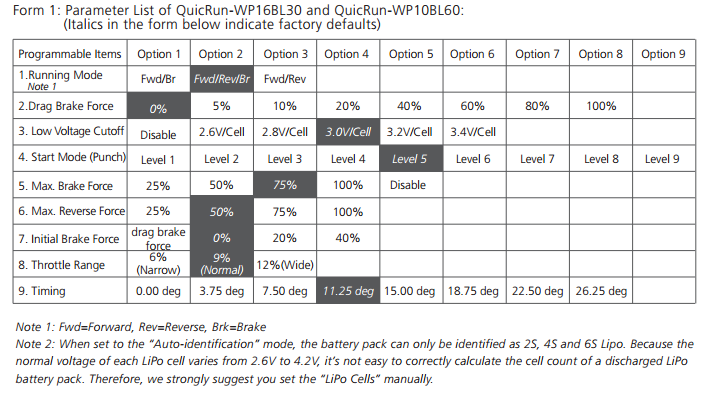

Programmable Items


Installation & Connection



Includes/Requires:
Includes:
1 x ESC
