   Electric (Brushless) Motors & Accessories Electric Brushless Motors - Outrunner Hobbywing Platinum 4120 610KV Airplane Brushless Motor
SKU:  PLT4120-61
Browse HOBBYWING

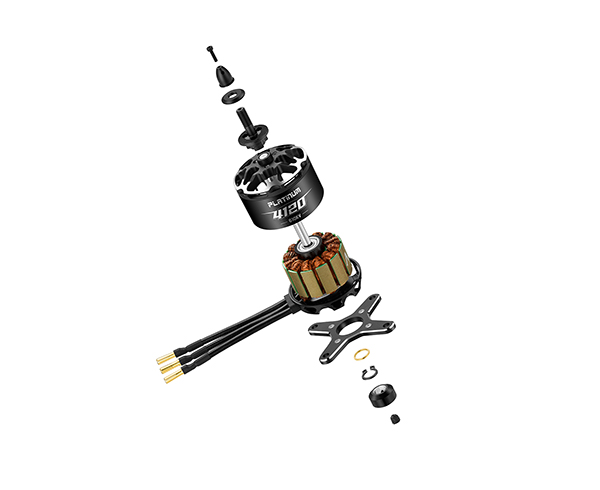

Hobbywing Platinum 4120 610KV Airplane Brushless Motor
Customers rating.
Add To Wish List
Bookmark and Share
Added:2025/07/17
Updated:2025/07/17
Follow Us on:

6P9165482558

PRICE(USD):
    $59.72   In stock
Member PRICE:
    Sign in or Sign up for member price

QTY:


  Tags: Hobbywing  Platinum  4120  610KV  Airplane  Brushless  Motor

Specifications:

Hobbywing Platinum 4120 610KV Airplane Brushless Motor


Specifications
ModelPlatinum 4120SL 250KVPlatinum 4120SL 500KVPlatinum 4120SL 610KVPlatinum 4125SL 250KVPlatinum 4125SL 450KVPlatinum 4125SL 580KVPlatinum 4130SL 230KVPlatinum 4130SL 420KVPlatinum 4130SL 490KV
Product Number304160003041600130416002304160503041605130416052304161003041610130416102
Motor SizeΦ49.5 *72.3mmΦ49.5 *72.3mmΦ49.5 *72.3mmΦ49.5 *77.3mmΦ49.5 *77.3mmΦ49.5 *77.3mmΦ49.5 *82.3mmΦ49.5 *82.3mmΦ49.5 *82.3mm
Stator SizeΦ40.6*20mmΦ40.6*20mmΦ40.6*20mmΦ40.6*25mmΦ40.6*25mmΦ40.6*25mmΦ40.6*30mmΦ40.6*30mmΦ40.6*30mm
Stator processHigh standard silicon steel sheet,180℃ high temperature resistance paint-coatHigh standard silicon steel sheet,180℃ high temperature resistance paint-coatHigh standard silicon steel sheet,180℃ high temperature resistance paint-coatHigh standard silicon steel sheet,180℃ high temperature resistance paint-coatHigh standard silicon steel sheet,180℃ high temperature resistance paint-coatHigh standard silicon steel sheet,180℃ high temperature resistance paint-coatHigh standard silicon steel sheet,180℃ high temperature resistance paint-coatHigh standard silicon steel sheet,180℃ high temperature resistance paint-coatHigh standard silicon steel sheet,180℃ high temperature resistance paint-coat
Enamelled wire200℃200℃200℃200℃200℃200℃200℃200℃200℃
Props mounting dimensionsΦ15mm-3*M3Φ15mm-3*M3Φ15mm-3*M3Φ15mm-3*M3Φ15mm-3*M3Φ15mm-3*M3Φ15mm-3*M3Φ15mm-3*M3Φ15mm-3*M3
Motor mounting dimensionsΦ30mm-4*M4Φ30mm-4*M4Φ30mm-4*M4Φ30mm-4*M4Φ30mm-4*M4Φ30mm-4*M4Φ30mm-4*M4Φ30mm-4*M4Φ30mm-4*M4
Slot& Pole12N14P12N14P12N14P12N14P12N14P12N14P12N14P12N14P12N14P
Dynamic balance≤10mg≤10mg≤10mg≤10mg≤10mg≤10mg≤10mg≤10mg≤10mg
Bearing696ZZ696ZZ696ZZ696ZZ696ZZ696ZZ696ZZ696ZZ696ZZ
Motor axle diameterΦ6mmΦ6mmΦ6mmΦ6mmΦ6mmΦ6mmΦ6mmΦ6mmΦ6mm
Isolation test500V AC high voltage resistance test500V AC high voltage resistance test500V AC high voltage resistance test500V AC high voltage resistance test500V AC high voltage resistance test500V AC high voltage resistance test500V AC high voltage resistance test500V AC high voltage resistance test500V AC high voltage resistance test
Specification
KV250500610250450580230420490
Battery(LiPo)12S LiPo6S LiPo6S LiPo12S LiPo6S LiPo6S LiPo12S LiPo6S LiPo6S LiPo
No-load current1.4A/44.4V2.6A/22.2V3.7A/22.2V1.5A/44.4V2.6A/22.2V3.9A/22.2V1.4A/44.4V2.4A/22.2V2.4A/22.2V
Maximum current (Non-hermetic Ambient Temperature ≤ 25℃)55.3A/30s102.7A/42s121.9A/59s60.4A/49s92.8A/1min23s119.7A/1min17s60.4A/1min2s107.6A/1min4s129.3A/55s
Max power2452W/30s2276W/42s2252W/59s2681W/49s2059W/1min23s2289W/1min17s2678W/1min2s2384W/1min4s2867W/55s
Max thrust7.69kg7.41kg7.21kg8.25kg7.47kg7.35kg9.06kg8.73kg9.12kg
Resistance64mΩ17mΩ12mΩ47mΩ15.5mΩ9.5mΩ43mΩ14mΩ10.6mΩ
Wire SizeEnamelled Wire OutputEnamelled Wire OutputEnamelled Wire OutputEnamelled Wire OutputEnamelled Wire OutputEnamelled Wire OutputEnamelled Wire OutputEnamelled Wire OutputEnamelled Wire Output
Wire length90mm90mm90mm90mm90mm90mm90mm90mm90mm
Weight(With wire)309g310g317g363g362g370g412g420g418g


Includes/Requires:
Includes:
1 x motor Hobbywing Platinum 4120 610KV

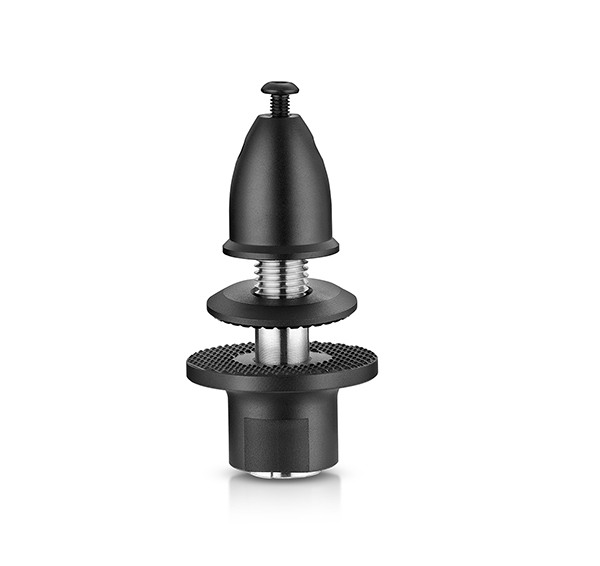

1 x accessory bag
