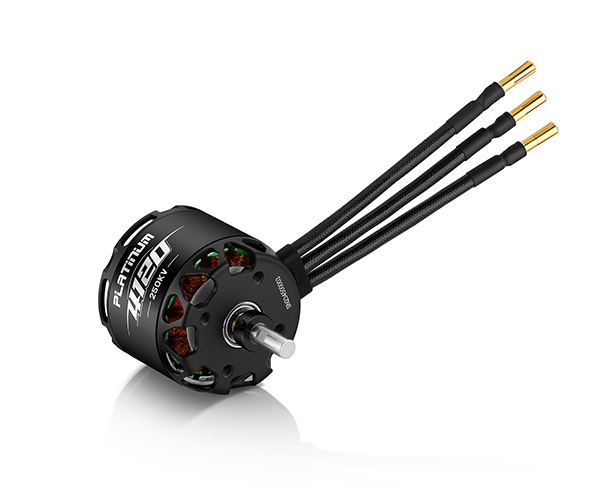

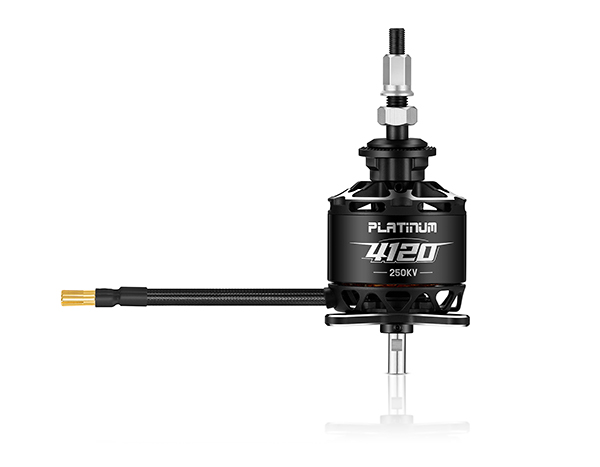

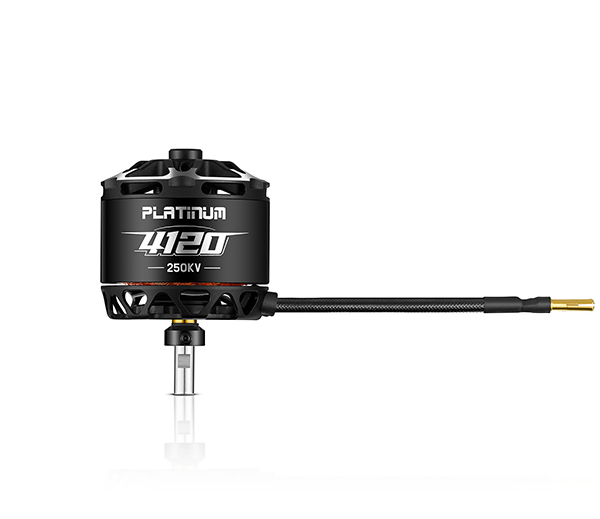

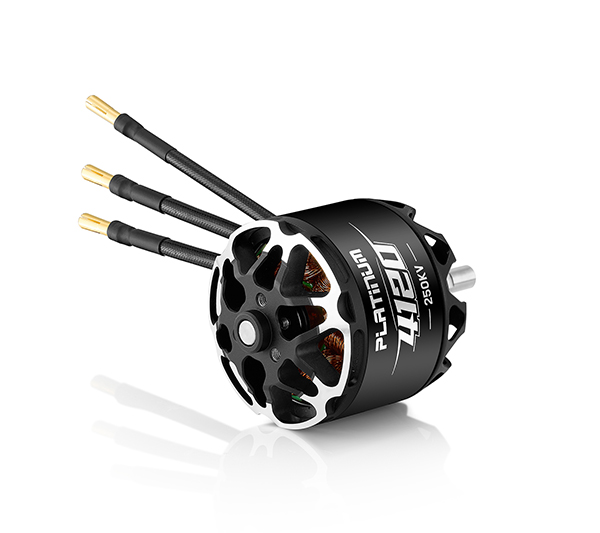

Hobbywing Platinum 4120 500KV Airplane Brushless Motor

Specifications

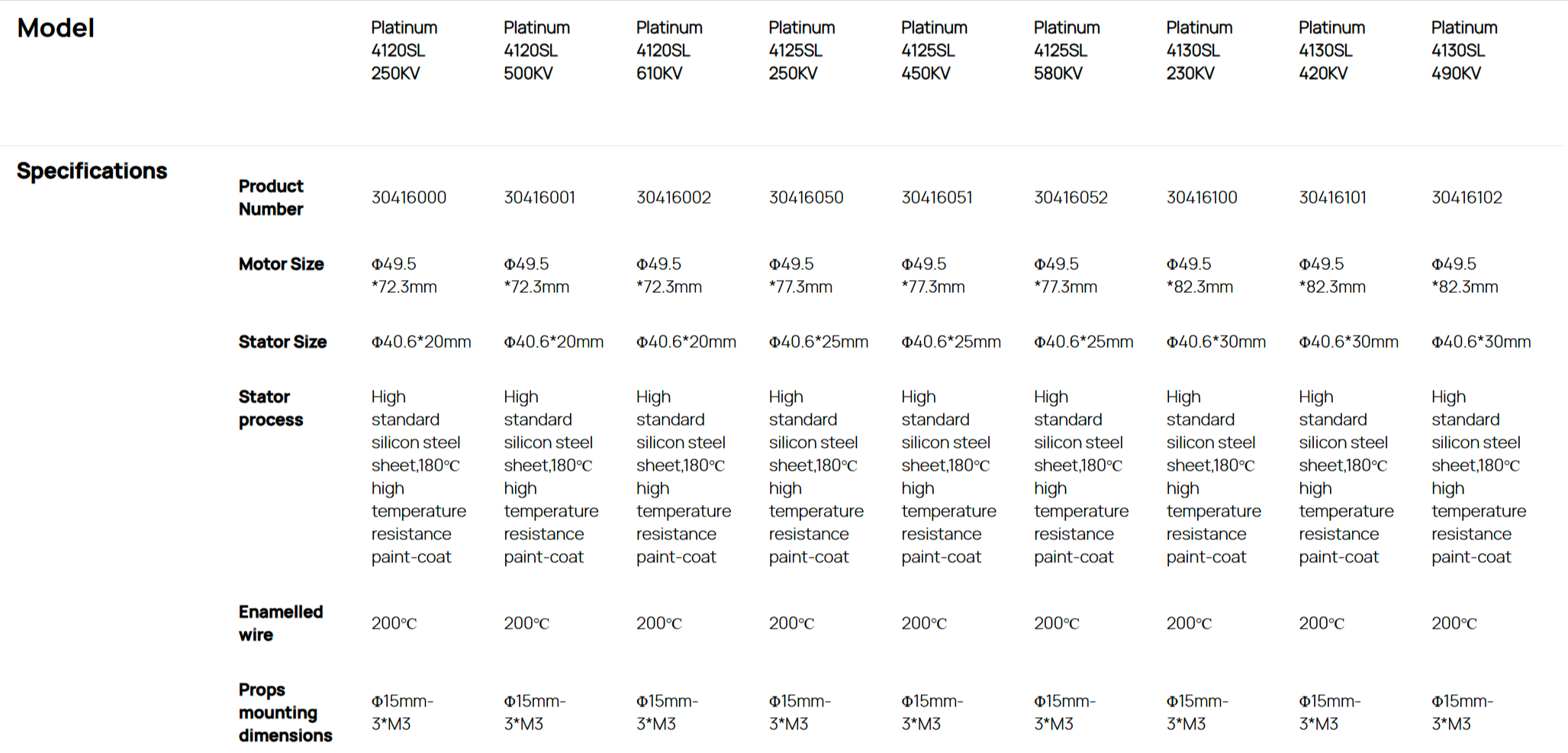

Model	Platinum 4120SL 250KV	Platinum 4120SL 500KV	Platinum 4120SL 610KV	Platinum 4125SL 250KV	Platinum 4125SL 450KV	Platinum 4125SL 580KV	Platinum 4130SL 230KV	Platinum 4130SL 420KV	Platinum 4130SL 490KV
Product Number	30416000	30416001	30416002	30416050	30416051	30416052	30416100	30416101	30416102
Motor Size	Φ49.5 *72.3mm	Φ49.5 *72.3mm	Φ49.5 *72.3mm	Φ49.5 *77.3mm	Φ49.5 *77.3mm	Φ49.5 *77.3mm	Φ49.5 *82.3mm	Φ49.5 *82.3mm	Φ49.5 *82.3mm
Stator Size	Φ40.6*20mm	Φ40.6*20mm	Φ40.6*20mm	Φ40.6*25mm	Φ40.6*25mm	Φ40.6*25mm	Φ40.6*30mm	Φ40.6*30mm	Φ40.6*30mm
Stator process	High standard silicon steel sheet,180℃ high temperature resistance paint-coat	High standard silicon steel sheet,180℃ high temperature resistance paint-coat	High standard silicon steel sheet,180℃ high temperature resistance paint-coat	High standard silicon steel sheet,180℃ high temperature resistance paint-coat	High standard silicon steel sheet,180℃ high temperature resistance paint-coat	High standard silicon steel sheet,180℃ high temperature resistance paint-coat	High standard silicon steel sheet,180℃ high temperature resistance paint-coat	High standard silicon steel sheet,180℃ high temperature resistance paint-coat	High standard silicon steel sheet,180℃ high temperature resistance paint-coat
Enamelled wire	200℃	200℃	200℃	200℃	200℃	200℃	200℃	200℃	200℃
Props mounting dimensions	Φ15mm-3*M3	Φ15mm-3*M3	Φ15mm-3*M3	Φ15mm-3*M3	Φ15mm-3*M3	Φ15mm-3*M3	Φ15mm-3*M3	Φ15mm-3*M3	Φ15mm-3*M3
Motor mounting dimensions	Φ30mm-4*M4	Φ30mm-4*M4	Φ30mm-4*M4	Φ30mm-4*M4	Φ30mm-4*M4	Φ30mm-4*M4	Φ30mm-4*M4	Φ30mm-4*M4	Φ30mm-4*M4
Slot& Pole	12N14P	12N14P	12N14P	12N14P	12N14P	12N14P	12N14P	12N14P	12N14P
Dynamic balance	≤10mg	≤10mg	≤10mg	≤10mg	≤10mg	≤10mg	≤10mg	≤10mg	≤10mg
Bearing	696ZZ	696ZZ	696ZZ	696ZZ	696ZZ	696ZZ	696ZZ	696ZZ	696ZZ
Motor axle diameter	Φ6mm	Φ6mm	Φ6mm	Φ6mm	Φ6mm	Φ6mm	Φ6mm	Φ6mm	Φ6mm
Isolation test	500V AC high voltage resistance test	500V AC high voltage resistance test	500V AC high voltage resistance test	500V AC high voltage resistance test	500V AC high voltage resistance test	500V AC high voltage resistance test	500V AC high voltage resistance test	500V AC high voltage resistance test	500V AC high voltage resistance test

Specification

KV	250	500	610	250	450	580	230	420	490
Battery(LiPo)	12S LiPo	6S LiPo	6S LiPo	12S LiPo	6S LiPo	6S LiPo	12S LiPo	6S LiPo	6S LiPo
No-load current	1.4A/44.4V	2.6A/22.2V	3.7A/22.2V	1.5A/44.4V	2.6A/22.2V	3.9A/22.2V	1.4A/44.4V	2.4A/22.2V	2.4A/22.2V
Maximum current (Non-hermetic Ambient Temperature ≤ 25℃）	55.3A/30s	102.7A/42s	121.9A/59s	60.4A/49s	92.8A/1min23s	119.7A/1min17s	60.4A/1min2s	107.6A/1min4s	129.3A/55s
Max power	2452W/30s	2276W/42s	2252W/59s	2681W/49s	2059W/1min23s	2289W/1min17s	2678W/1min2s	2384W/1min4s	2867W/55s
Max thrust	7.69kg	7.41kg	7.21kg	8.25kg	7.47kg	7.35kg	9.06kg	8.73kg	9.12kg
Resistance	64mΩ	17mΩ	12mΩ	47mΩ	15.5mΩ	9.5mΩ	43mΩ	14mΩ	10.6mΩ
Wire Size	Enamelled Wire Output	Enamelled Wire Output	Enamelled Wire Output	Enamelled Wire Output	Enamelled Wire Output	Enamelled Wire Output	Enamelled Wire Output	Enamelled Wire Output	Enamelled Wire Output
Wire length	90mm	90mm	90mm	90mm	90mm	90mm	90mm	90mm	90mm
Weight（With wire）	309g	310g	317g	363g	362g	370g	412g	420g	418g

Includes:
1 x motor Hobbywing Platinum 4120 500KV

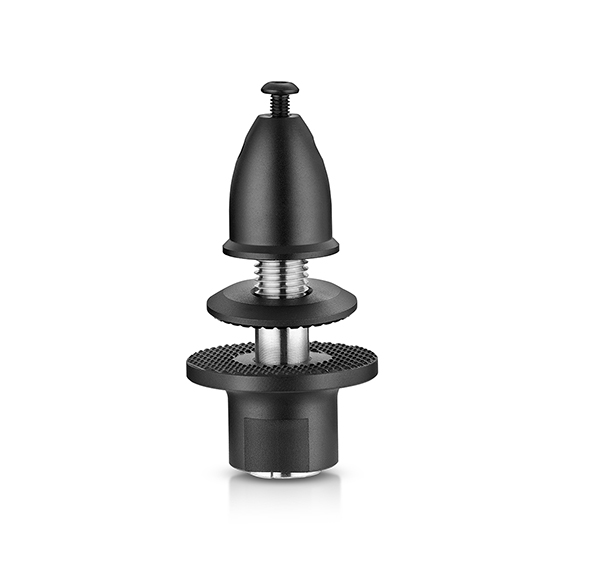

1 x accessory bag
