   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Air/ Helis Hobbywing 130A 6-14S Speed Control Platinum Pro HV-130A V4 | New V4
   Multi-rotors Electronic Speed Controller (ESC)
SKU:  PLT130A-V4
Browse HOBBYWING

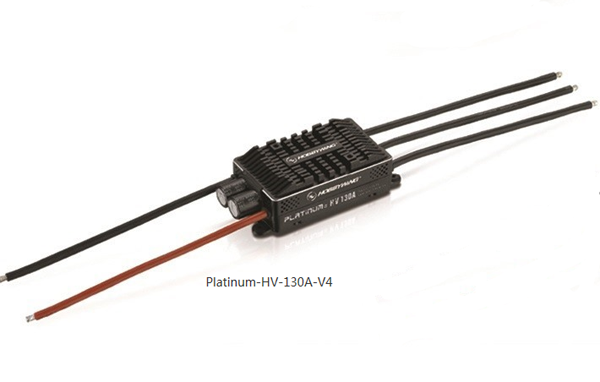

Hobbywing 130A 6-14S Speed Control Platinum Pro HV-130A V4 | New V4
Customers rating.
Add To Wish List
Added:2016/04/07
Updated:2016/04/07
Follow Us on:


  Tags: Hobbywing 130A 6-14S Speed Control Platinum-130A-Pro V4 | New V4 HV

Features:

Super Soft Start-up
Platinum V4 serial products allows the motor to start extremely smooth
and avoids tail-drift issues that helicopters experience. The start-up time
is adjustable from 8 to 25 seconds, this will definitely create a perfect
starting point for every flight.


Excellent Motor Speed Governing

High-performance 32-bit processor with a prossesing frequency of 72MHz combined with
advanced algorithm optimizes the speed governing. Together with the adjustable governor
parameters it will guarantee every pilot a precise and efficient control experience.

DEO Technology

The DEO (Driving Efficiency Optimization or so-called “Active Freewheeling”)
technology implemented in the ESC has multiple advantages.
● A very Rapid response to throttle change.
● Higher driving efficiency, longer flight time.
● Lower ESC temperature and a much more reliable operation during flight.

Other Features

A separate program port for connecting programmer on this ESC allows user to
● Program ESC,
● Check flight data include minimum voltage, maximum temperature, standardized RPM and
speed curve (in Heli Governing Store mode) of the flight parameters recorded by the ESC,
●Upgrade ESC firmware with a mutifunction LCD program box or a WiFi Module & our
Apple/Android phone App.

High Voltage Built-in BEC

The built-in switch mode BEC with an adjustable voltage range from 5V to 8V, a continuous current of over 10A
and peak current of 25A can supply enough power for your HV servos to operate at their peak.


Built-in Sparkproof Circuit

Built-in Arc proof circuit effectively eliminates Arc/Spark produced at
the “powering-on” moment and prolongs the connectors‘ lifespan.

Four Brake Modes

This Platinum 80A V4 ESC has “Brake Disabled, Normal Brake, Proportional
Brake and Reverse Brake” four brake modes. The brake amount is adjustable in
normal brake mode; in proportional brake mode, the brake force will be
automatically selected based on the position of radio throttle stick; in reverse
brake mode, the motor rotation can be changed via a spare transmitter channel.

Multiple Protections

Multiple protection features include ESC thermal, capacitor thermal (HOBBYWING-patented technology),
ESC overload, throttle signal loss(or Fail Safe), and low voltage cutoff effectively prolongs the service life of the ESC.
Specifications:

Hobbywing 130A 6-14S Speed Control Platinum Pro HV-130A V4 | New V4

Product Name

Platinum HV 130A V4

Product Number

30209200

Type

Brushed/Brushless

BL

High Voltage/Regular

High Voltage

Specifications

Cont./Peak Current

130A/160A

Input

6-14S LiPo

BEC Output

Switch Mode:5-8V,10A

Wires & Connectors

Input Wires

Red-12AWG-150mm*1/Black-12AWG-150mm*1

Output Wires

Black-12AWG-100mm*3

Input Connectors

No

Output Connecotors

No

(Note: All the wire length above is the original length not the length you see from the outside.)

ESC Programing via

Transmitter

Not Supported

LED Program Card

Not Supported

LED Program Box

Not Supported

LCD Program Box

Supported

WiFi Module

Supported

Program Port

Separate Program Port

Firmware

Firmware Upgrade

Supported

Size & Weight

Size

101.0x45.5x27.0mm

Weight

169g

Applications



550-600 Class Heli (Main Blade: 550-690mm)
.90-.140 Class Fixed-wing Airplane, 2m FAIF3A & 3D
EDF (with Diameter≦105mm)


Includes/Requires:
Includes:
1 x  ESC
