The UBEC-10A (3-14S) external BEC is a new product manufactured by Hobbywing. UBEC is an external DC voltage stabilizing device that operates in switch mode. This UBEC can obtain a DC voltage suitable for the receiver and other devices to work from a 3-14S lithium battery pack, and stably provide an output current of up to 10A. This UBEC can easily power various devices on remote control models, especially large helicopters and fixed-wing aircraft that use multiple servos.


Product features:

High-efficiency DC-DC voltage stabilizing chip is adopted, with a conversion efficiency of over 90%;
The output voltage has three levels of adjustment (6.0V/7.4V/8.4V), which can meet the voltage specifications of various servos;
It has functions such as overcurrent protection, output short circuit protection, and overheat protection, which is safe and reliable;
It has a working status indicator light, which lights up when the UBEC is working properly.

Overview:
This UBEC adopts a DC-DC voltage stabilizing chip, with a conversion efficiency of over 90%. It can obtain a DC voltage suitable for the receiver and other devices to work from a 3-14S lithium battery pack, and stably provide an output current of 10A. The UBEC output voltage has three levels of adjustment (6.0V/7.4V/8.4V), which can meet the requirements of various servo and electrical equipment voltage specifications. It also has multiple safety protection functions such as overcurrent protection, output short circuit protection, and overheat protection. The working status indicator light can indicate whether the UBEC is working properly, ensuring safety and stability of use.

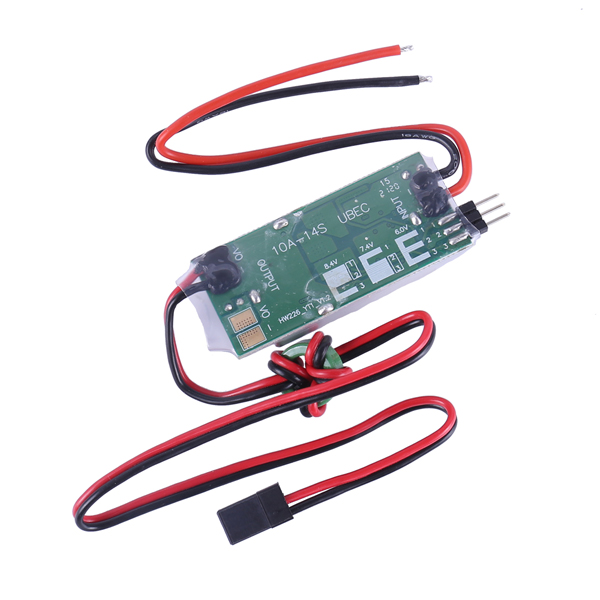

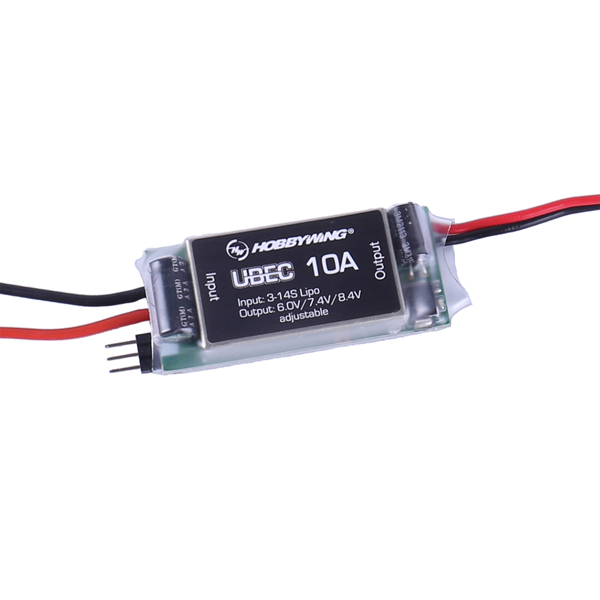

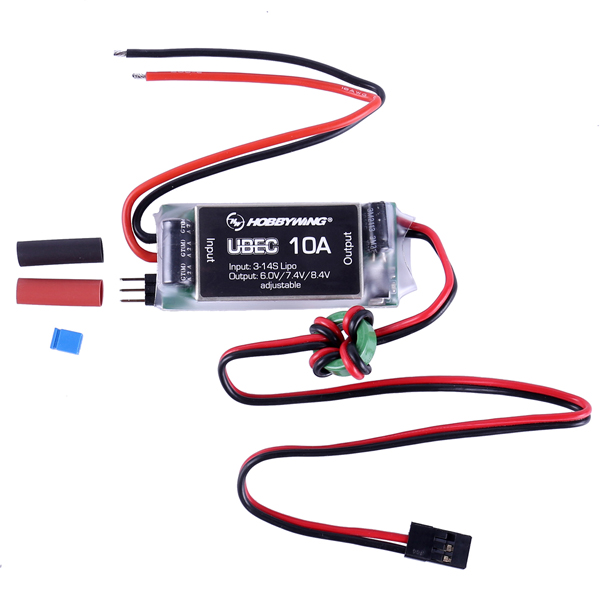

HobbyWing 10A 3-14S TL2268 Step-down Voltage Regulator / UBEC (6.0/ 7.4/ 8.4V Adjustable)

Input voltage：3 - 14S Lipo
Output voltage：6.0V/7.4V/8.4V adjustable
Output current: 10A  continuious, 25A burst
Input wires: 18AWG (145mm)
Output wires: 18AWG (320mm)
Dimension: 55mm  x 25mm  x  12mm
Weight: 35g


*This device is specially introduced to those experienced DIYers, basic electronic knowledge and DIY/welding skills are required, we are not responsible for damages due to lack of welding skills or wrong wirings etc.

*Check the output voltage and adjust the virable resistor to adjust the voltage if needed before connect to your device.

Includes:
1 x voltage regulator
