●Auto detect the cells and type of batteries, and set the cutting-off voltage accordingly, 6V/9V for 2 and 3 cell lipo, and 0.8V/cell for Ni-Mh/NiCd batteries. ●Safe start, it will not start up when throttle at wrong position. ●Over-temperature protection: The ESC will stop working when surface temperature is over 90℃. ●Lose signal protection: The ESC will stop when lost control signal for over 1 second.

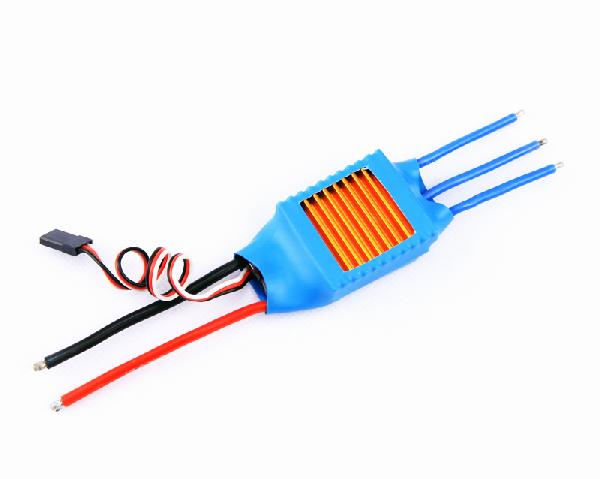

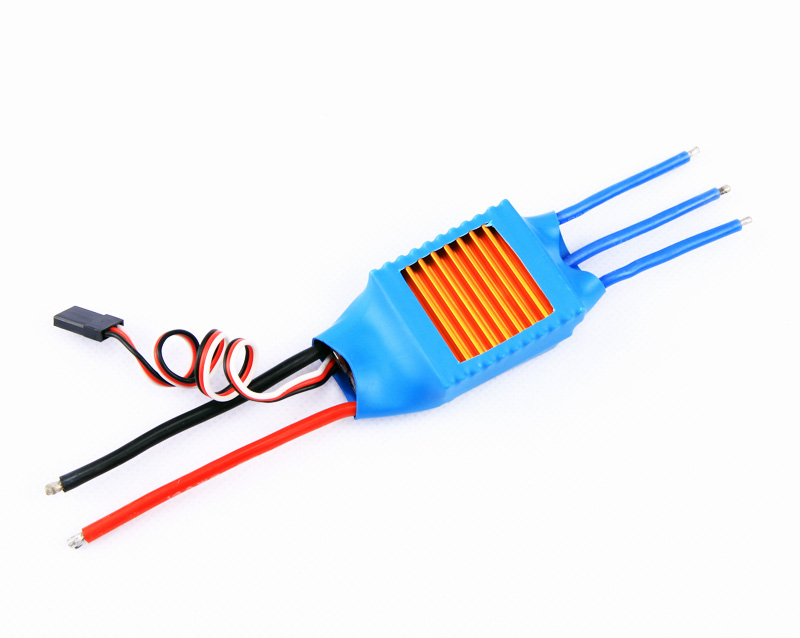

Type: GX-50A · Weight: 40g / 1.41 oz · Size: 46 x 35 x 8 mm · Constant Current:50A (under good cooling environment) · Max Current: 60A (for ten seconds) · BEC: No (you need a separate RX battery or a external BEC unit to power the receiver and servos) · FET No.: 12 · PWM: 8 Khz/ 16Khz · Input: 6 - 20 Ni-Mh/Ni-Cd or 2 - 7 Lipo
* This ESC does not have BEC output, you need a separate RX battery or a external BEC unit to power the receiver and servos.
* This ESC was upgraded to 50A (previously 45A) since 15th Aug 2012.
