   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Air/ Helis HOBBYWING XRotor Micro BLHeli 35A 6S Speed Control for Multicopters - BLHeli Edition
   Multi-rotors Electronic Speed Controller (ESC)
SKU:  XRT35A-B
Browse HOBBYWING

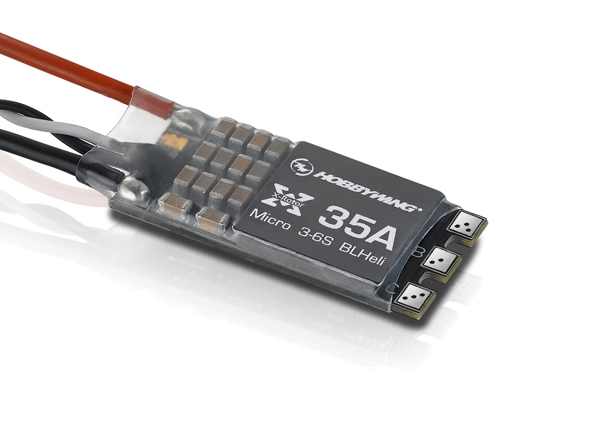

HOBBYWING XRotor Micro BLHeli 35A 6S Speed Control for Multicopters - BLHeli Edition
Customers rating.
Add To Wish List
Added:2016/07/28
Updated:2016/07/28
Follow Us on:


  Tags: HOBBYWING XRotor Micro BEHeli Speed Control for Multicopters XRotor-35A Micro

Features:
 Features

Super Small & Light

ESCs with incredible small size and light weight are specially designed for competition FPV drones.

Quality Components

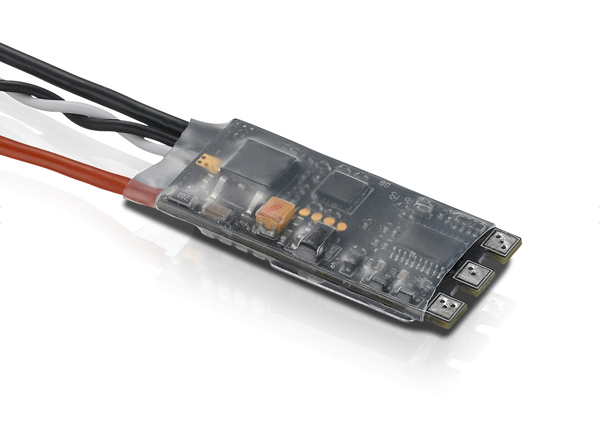

The use of F396 48MHz MCU, imported MOSFETs (Toshiba MOSFETs for 20A &35A ESCs, Fairchild MOSFETs for 30A ESCs) and ceramic capacitors, 3-in-1 drive ICs, 3-ounce copper, 4 layers of PCBs and other quality components guarantees less heat, higher efficiency and rapider response.





BLHeli Firmware Ready
Users can flash or upgrade the BLHeli firmware via the signal cable (on ESCs), and program 4 ESCs simultaneously after
connecting their flight controller to the BLHeliSuite software if the flight controller uses the CleanFlight firmware.



Damped Light Mode & OneShot125 Mode Supported

Damped light mode improves the motor retardation and allows users to brake the FPV drones more efficiently. Active-freewheeling technology improves driving efficiency, flight time and heat dissipation. The ESCs support OneShot125 high speed throttle signal and regular throttle signal (within 500Hz) modes.


Twisted-Pair Signal Cable Reduces Interference
The twisted-pair throttle signal cable effectively reduces interference produced in signal transmission and makes the flight much more stable and reliable.
Specifications:

HOBBYWING XRotor Micro BLHeli 35A 6S Speed Control for Multicopters - BLHeli Edition

Specifications

Product Name



XRotor micro 20A BLHeli

XRotor micro 30A BLHeli

XRotor micro 35A BLHeli

Product Number



30901066

30901071

30901070

Specifications

Cont./Peak Current

20A/30A

30A/40A

35A/50A

LiPo Cells

2-4S LiPo

2-4S LiPo

3-6S LiPo

BEC Output

No

No

No

Wires & Connectors

Input Wires

Red-20AWG-100mm*1;
Black-20AWG-100mm*1

Red-18AWG-100mm*1;
Black-18AWG-100mm*2

Red-18AWG-100mm*1;
Black-18AWG-100mm*3

Output Wires

No wires but solder tabs

No wires but solder tabs

No wires but solder tabs

Input Connectors

No

No

No

Output Connectors

No

No

No

(Note: All the wire length above is the original length not the length you see from the outside.)

Features

Throttle Range Calibration

Supported

Supported

Supported

Stick Programming

Stick Programming/BLHeliSuite

Stick Programming/BLHeliSuite

Stick Programming/BLHeliSuite

DEO

Not Supported

Not Supported

Not Supported

OneShot Mode

Supported

Supported

Supported

Timing

Supported

Supported

Supported

Light Color

Not Supported

Not Supported

Not Supported

Motor Rotation

Supported

Supported

Supported

Size & Weight

Size

24.0x13.9x5.5mm

24.0x13.9x5.5mm

36.5x16.7x5.5mm

Weight

7g

7g

10g

Applications



FPVs with 130-280mm Diagonal Wheelbase

FPVs with 130-280mm Diagonal Wheelbase

FPVs with 150-330mm Diagonal Wheelbase


Includes/Requires:
Includes:
1 x ESC
