   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Air/ Helis HIFEI KingKong Series 2-6S 120A Electric Speed Control W/data logger ESC-120A-K
SKU:  KK-120A
HIFEI KingKong Series 2-6S 120A Electric Speed Control W/data logger ESC-120A-K
Customers rating.
Manual:
Add To Wish List
Added:2011/10/19
Updated:2011/10/19
Follow Us on:


  Tags: HIFEI  KingKong  Series  2-6S  120A  Electric  Speed  Control  W  data  logger  ESC-120A-K

Features:
1. Microprocessor controlled

2. Integrated the function of flying data logger, could recording the flying data as:

·Current

·Voltage

·Temperature

·RPM

·Power

·Throttle travel

3. Programmable the parameters of ESC through USB cable connected to computer

4. Upgradeable the firmware of ESC through Internet

5. 120A continuous(140A surge)

6. Up to 20cells NiMH/NiCad or 2~6cell Lithium-polymer

7. High rate adjustable switching (PWM:8KHz/12KHz/16KHz)

8. BEC:3.5A (switching BEC)

9. Support above 4 micro servos

10. Programmable low voltage cutoff

11. Programmable cutoff types(soft cutoff/hard cutoff)

12. Programmable brake type(disable/soft brake/hard brake)

13. Time advance programmable (low/standard/high)

14. Programmable current limiting(very sensitive/standard/insensitive/disable)

15. Governor mode(low rpm governor/high rpm governor)

16. Programmable startup type(very soft start/soft start/fast start)

17. Thermal Protection(100 centigrade)

18. Apply to most of inrunner and outrunner brushless motors.

19. No complex programming, auto adapt work mode.

20. A LED (flashes) indicates full throttle.

21. Runs motor in forward or reverse by swapping any two motor wire connections.

22. Safe “power on” arming program ensures motor will not accidentally turn on.

23. Auto shut down when signal is lost or radio interference becomes severe for more than 3 seconds .After radio connection has been reestablished, moving the throttle to the lowest position can restart the motor.

24. The ESC is disabled when the voltage is over 26v at power-on.
Specifications:
Type: ESC-120A-K
Size: 90mm X 52mm X 16mm
Weight: 49g
Constant Current:120A (140A burst)
BEC: Yes, 3.5A switch mode
Input: 2 to 6S Li-Po
Data logging function: YES
Programing methods: Program card/Program box/USB Linker capable (not included)

Resources:
Software

Instruction Manual

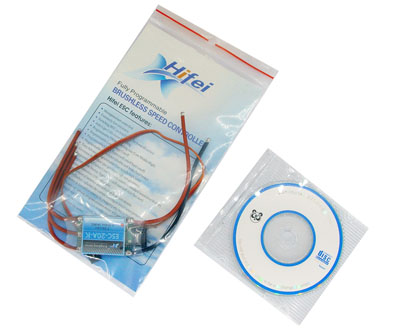

Includes/Requires:
Includes:
1 x ESC
1 x software disk

* Battery and motor connectors to be purchased separately.
