   Electric Electric - Miscellaneous FPV 128-bit Wide Dynamic 540-line High Definition Camera
SKU:  FDX201

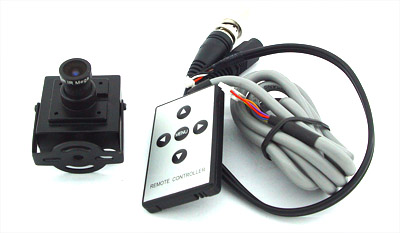

FPV 128-bit Wide Dynamic 540-line High Definition Camera
Customers rating.
Add To Wish List
Added:2010/05/10
Updated:2010/07/07
Follow Us on:


  Tags: video recording system  FPV  first person view  video camera

Features:
Compact size, light weight, high definition, rich-function.

Recommended by FPV enthusiasts.
Specifications:
FPV 128-bit Wide Dynamic 540-line High Definition Camera

Sensor: 1/3 DPS
Video format: PAL, NTSC compatible
Effective Pixels: PAL:720×540;NTSC:720×540
Audio: No
Horizontal Resolution: 540 lines
Vertical Resolution: 460 lines
Power Input: 12V ±5%
Working power: 2W (max)
SNR: > 48dB
Dynamic Range: 101dB (typical),120dB(max)
Control mode: OSD screen manual and soft-touch button control
Area cover function: yes
White balance: AWB/ATW/ATW LIMIT/ATW DESAT/MANUAL
Color temperature: 2000K to 11,000K
Auto-gain: adjustable
Gamma adjust: adjustable
Working temperature: -10℃~+50℃ RH90% MAX(NON-CONDENCING)
Video resistance: 75Ω
Video output: 0.8-1.5Vp-p (signal amplitude adjustable)
Shutter speed: automated 1/50-1/10000 sec
Minimum illuminance: 0.5Lux/F1.2; 0.08Lux/F1.2 (slow shutter mode)

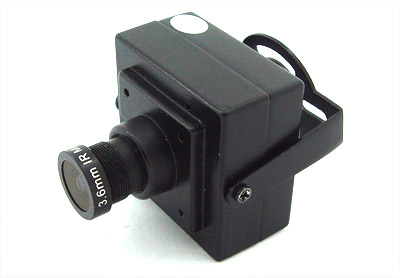

Lens: 3.6mm
Dimension: 36(W)×36(H)X28(D) mm
Weight: 83g
Includes/Requires:
Includes:
1 x camera
1 x wire

* No instruction manual supplied with this product.
