Lithium Polymer (Li-poly) & Ni-Mh battery packs, battery chargers, Electric (Brushless) Motors, Electric Speed Controllers ( ESC ), Gyros, Electric Accessories etc.
   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Cars EZRUN-80A-SD Brushless ESC for 1/8 Car (Sportful Race) V2
SKU:  EZRUN80A
Browse HOBBYWING

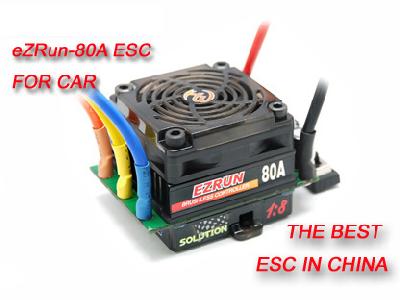

EZRUN-80A-SD Brushless ESC for 1/8 Car (Sportful Race) V2
Customers rating.
Manual:
Add To Wish List
Added:2009/02/09
Updated:2018/07/12
Follow Us on:


  Tags: EZRUN-80A-SD  Brushless ESC  1/8 Car  Sportful Race

Features:

1 Specification

1.1 Output: Continuous current 80A, burst current 270A.
1.2 Input: 6-12 cells NiMH/NiCd or 2-4 cells LiPo.
1.3 BEC Output: 5.75V/3A (Switch mode built-in BEC).
1.4 Resistance: 0.0018 Ohm.
1.5 Motor Supported: Sensorless and sensored brushless motors
1.6 Suitable Brushless Motor: 8T and > 8T
1.7 Suitable Car: 1/8 on-road or off-road cars / trucks for sportful race and RTR application.
1.8 Size: 68mm(L) * 55mm(W) * 45mm(H).
1.9 Weight: 150g(Without wires)
2 Features
1.1 Compatible with all sensorless brushless motors and most of sensored brushless motors such as Novak, LRP and Feigao, etc.
1.2 Excellent start-up, acceleration and linearity features.
1.3 3 running modes (Forward only with brake, Forward/Reverse with brake, Forward/Reverse immediately)
1.4 4 steps of maximum reverse force adjustment.
1.5 Proportional ABS brake function with 4 steps of maximum brake force adjustment, 8 steps of drag-brake force adjustment and 4 steps of initial brake force adjustment.
1.6 9 start modes (Also called “Punch”) from “very soft (Level 1)” to “very aggressive (Level 9)”.
1.7 Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor blocked protection.
1.8 8 steps of timing adjustment by software.
1.9 Built-in switch mode BEC has a powerful output to supply all the electronic equipments.
1.10 Easily program with only one button and compatible with pocket-sized Program Card.
1.11 Firmware can be updated through an USB adapter (Optional equipment).
1.12 Splash proof and dustproof.

3 Programmable Item

For detail information, please read the user manual for reference.
4 Suggestion Of The Power System

Motor Type

Gear Rate

Power System Suggestion

Main Application

EZRUN-3674SL

1:8 Off-Road: 10-15.5
1:8 Monster: 13-21

EZRUN-80A-SD ESC
32 Pitch, 19T Pinion
3-4 Cells Lipo Battery

1:8 Monster, Normal powerful
Budget-friendly
Suitable for sportful and RTR

EZRUN-3674SL

1:8 Off-Road: 9.5-16
1:8 Monster: 16-21

EZRUN-80A-SD ESC
M1-13T Pinion
3-4 Cells Lipo Battery

1:8 EP Car
1:8 Nitro-Powered Car converts to
Electric-Powered


Includes/Requires:
Includes:
1 x ESC
