Lithium Polymer (Li-poly) & Ni-Mh battery packs, battery chargers, Electric (Brushless) Motors, Electric Speed Controllers ( ESC ), Gyros, Electric Accessories etc.
   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Air/ Helis DYS 10A 2-4S Speed Controller (Simonk Firmware) for Multicopter | V2
   Multi-rotors Electronic Speed Controller (ESC)
SKU:  DYS10M
Browse DYS

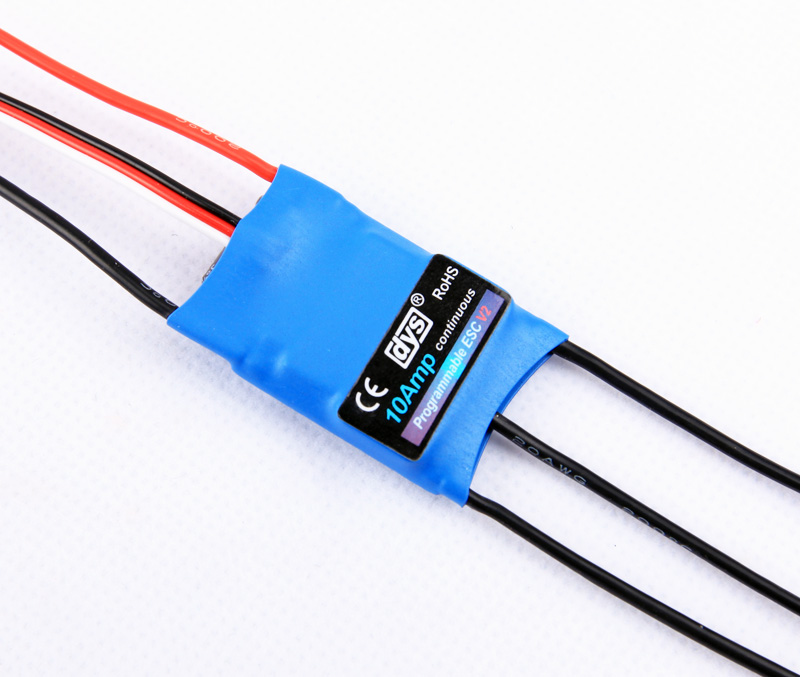

DYS 10A 2-4S Speed Controller (Simonk Firmware) for Multicopter | V2
Customers rating.
Add To Wish List
Added:2014/04/17
Updated:2014/04/17
Follow Us on:


  Tags: DYS SinonK Simon K firmware multicopter ESC speed controll

Features:

Features


 l Drive tube and high-power Mos, and Mos tube plus a separate heat sink, Extreme low output resistance of the PCB(printed circuit board),super current endurance.
2 The power input uses extreme low output resistance greatly enhance the power stability, and has the protective effect on the battery.
3 Safety electrical function: when the power is turned on, regardless of the throttle stick in any position does not start the motor immediately, to avoid personal injury.
4 Separately voltage regulator IC for microprocessor. providing good anti-jamming capability.
5 Supported motor speed (Maximum): 210000 RPM (2 poles), 70000 RPM (6 poles), 35000 RPM (12 poles).
6 Using Simon K’s a dedicated multi-copter program tgy_debug, and the master chip with high stability crystal oscillator, making the motor control to more precise.

Specifications:

DYS 10A 2-4S Speed Controller (Simonk Firmware) for Multicopter | V2

1 Running current:10A(Output: Continuous 10A, Burst 12A up to 10 Secs.)
2 Input Voltage: DC 6-16.8V(2-4S Lixx)
3 BEC: 5V  2amp.
4 Size: 34mm (L) * 24mm (W) * 8mm (H).
5 Weight: 12g
6 With SimonK updated firmware for multicopter


Includes/Requires:
Includes:
1 x ESC
