Lithium Polymer (Li-poly) & Ni-Mh battery packs, battery chargers, Electric (Brushless) Motors, Electric Speed Controllers ( ESC ), Gyros, Electric Accessories etc.
   Electric Electric - Miscellaneous Miscellaneous DAL 20A Large Current 3.7-28V Input Remote Control Switch
SKU:  DAL20A
Browse HiModel

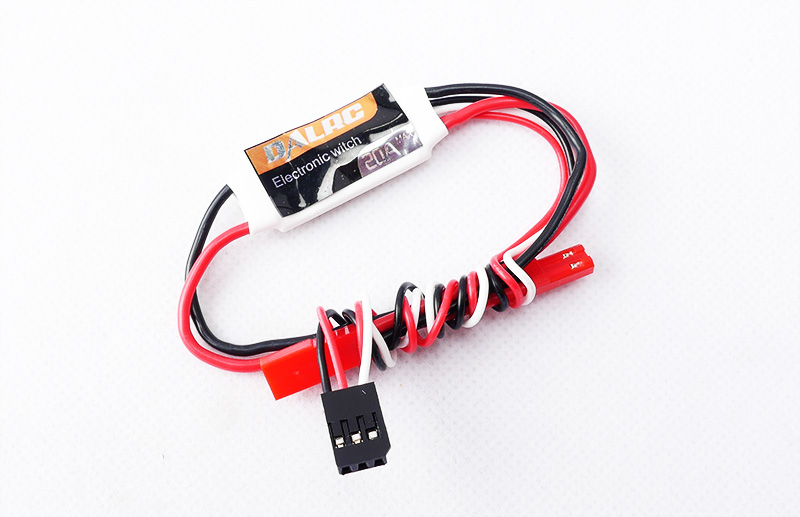

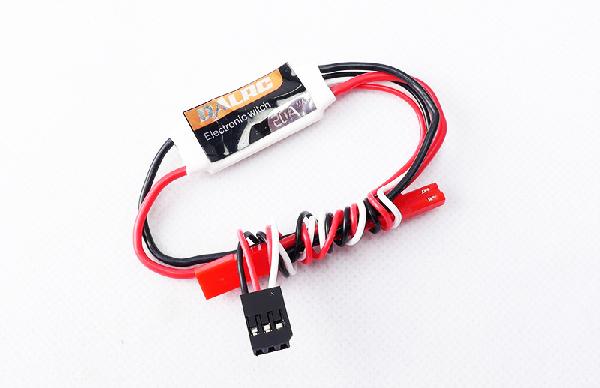

DAL 20A Large Current 3.7-28V Input Remote Control Switch
Customers rating.
Add To Wish List
Added:2014/11/09
Updated:2014/11/11
Follow Us on:


  Tags: remote switch  large current  wide voltage input  pwm

Features:

Special features:
 Large current, high reliability, supports high voltage receivers, compact size, light weight.

18AWG silicon wires for power, super soft silicon wires for signal as well.

Application examples:
Switch for cars/ airplanes lights.
Switch for electronic devices like camera, A/V transmitter etc. (connect "positive" wire disconnecting the main power supply,  using common GND wire)
Gas/Nitro Engine ignition control, smog control etc.;  You can connect electric heating wire to the device for ignition control.
Specifications:

DAL 20A Large Current 3.7-28V Input Remote Control Switch


Input voltage: 3.7-28V
Input current: < 20A
Control signal type: PWM signal
Power supply wires: 18AWG silicon
Power wire total length: 20CM (approx)
Weight: 12g
Dimension: 30 x 16 x 4mm (excluding wires)
Includes/Requires:
Includes:
1 x remote switch
