   Electric Battery Chargers & Battery Accessories Lithium Polymer Battery ( Li-Poly, LIPB) Chargers CHARGERY POWER 2-6S LiPo & LiFe (A123) Smart Balance Charger 630B
SKU:  CP630B
Browse Chargery Power

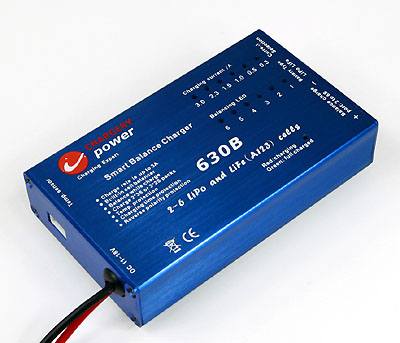

CHARGERY POWER 2-6S LiPo & LiFe (A123) Smart Balance Charger 630B
Customers rating.
Add To Wish List
Added:2009/01/14
Updated:2010/08/18
Follow Us on:


  Tags: CHARGERY POWER  2-6S  LiPo charger  LiFe A123 charger  Balance Charger  630B

Features:
●630B is a high performance Li-ion/LiPo and LiFe battery pack (A123 system) balance charger.

●630B is micro-Processor controlled charger with built-in cell balancer.

●Easy to use

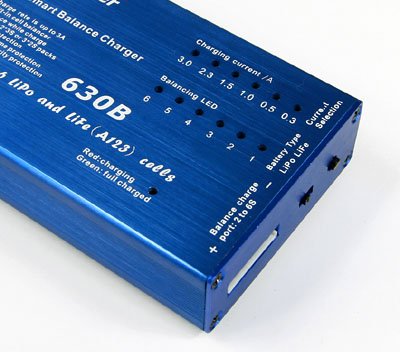

Compare with the balance charger with LCD and operating button, 630B is very easy to use, what you do is only to choose battery type( lipo or LiFe) and charging current, it starts to charge. very simple and convenient. the balance charge port connect directly to the battery.
●Perfect balancing the Li-Poly and LiFe Batteries
The built-in balancer automatically detect and balance each cell voltage of the 2 to 6 cells in series. It monitors the voltages of each cell during the charge process to equalize the peak voltage.
●Temperature sensor
The processor monitors the temperature of the battery being charged during the process For safety reason, the charger can stop the process at high temperature by your set up.
●Robust outer aluminum case
High-quality aluminum case is durable and very efficient to cool out the internal heat
●Convenient DC Input
Connect to your auto battery or a 12 V power supply, The 630B charge your battery pack at up to 3 A current. as far as a 4.5AH 22.2V batter pack, the charging time is also 90-120min at most. for the 1.5AH 22.2V battery pack, the charging time will be 30-40min, more capacity of battery or bigger difference of cell voltage, more charging time.
●Perfect protection
The 630B has all kinds of protection for reversed polarity (input or output), low input voltage, battery temp. , and charging time.
●Deal with several packs at the same time

Balance charge 3*2S or 2*3S lipo/LiFe battery packs simultaneously by using the adaptor board designed specially. for example, 2pcs 3S packs with 3AH can be balance charged fully in 60min.
Specifications:
Main Specifications:

Input Voltage/Current: DC 10-18V,8A

Output Power: 75W MAX.

Output Voltage: 25.2V(25.5V MAX.)

Output Current: 3A, max.



General Specifications:

Operating Temperature: 0~40℃

Storage Temperature: -20~85℃

Operating Relative Humidity: 5~95%RH



Mechanical Characteristics:

Dimension: 107*64*24(mm, L*W*H)

Case Material : Al alloy

Input lead: silicon wire 300mm long ending in insulated alligator clips

Output jack: 7PIN balance connector CCB, conversion wire CEHP-7

weight: 180g (without cables)

Safety Certification:CE

630B is fully committed to compliance with the European Union’s RoHS directive.
Includes/Requires:

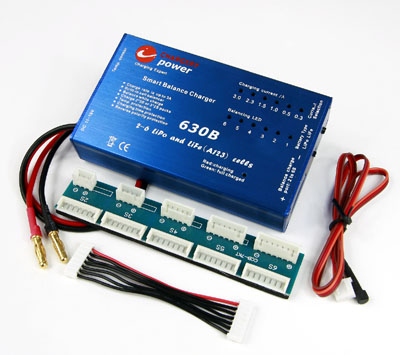

Includes:
1 x charger
1 x temperature sensor
1 x multi-adapter balance harness for For 2S, 3S, 4S, 5S, 6S Kokam, Align/HiModel batteries pack
1 x CD disk for instruction manual
