B.E.C. : 5V/1A

SAFE"Power-On" :When the Battery is connected to the ESC; the motor is prevented from turning. However, care must always be taken to keep hands or other objects clear of the propeller at all times when the battery is connected.

SOFT START : There is a 2 second delay built into the ESC circuitry to enable the motor to 'soft start'.

FW Frequency : 3.3KHz.

AUTO CUT : The current to the motor will be cut-off automatically before the battery voltage becomes too low to enable the Rx and Servo's to operate. When this happens in flight, it is wise to land the model without undue delay.

Input pulse length : 1ms-2ms.

B.E.C. : 5V/1A

SAFE"Power-On" :When the Battery is connected to the ESC; the motor is prevented from turning. However, care must always be taken to keep hands or other objects clear of the propeller at all times when the battery is connected.

SOFT START : There is a 2 second delay built into the ESC circuitry to enable the motor to 'soft start'.

FW Frequency : 3.3KHz.

AUTO CUT : The current to the motor will be cut-off automatically before the battery voltage becomes too low to enable the Rx and Servo's to operate. When this happens in flight, it is wise to land the model without undue delay.

Input pulse length : 1ms-2ms.


For more details, please refer to Detailed Specification

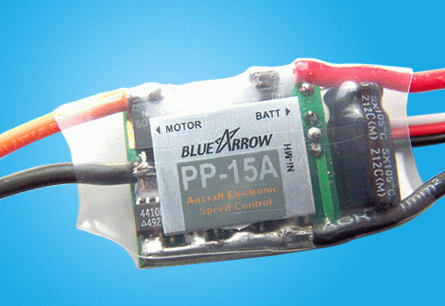

This is the revised new version of 15A series ESC from Blue Arrow.
May 23rd, 2005
