   Electric Battery Chargers & Battery Accessories Battery Testers/ Voltage Checkers/ Power analyzer etc. AOKoda AOK-041 1S Lithium Battery Tester (compatible with JST/ MOLEX/ mCPX/ MCX Plugs)
SKU:  AOK-401

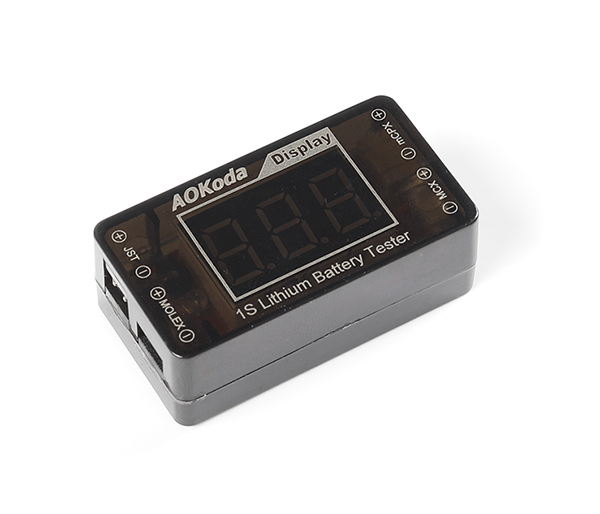

AOKoda AOK-041 1S Lithium Battery Tester (compatible with JST/ MOLEX/ mCPX/ MCX Plugs)
Customers rating.
Add To Wish List
Added:2018/05/16
Updated:2018/05/16
Follow Us on:


  Tags: AOKoda AOK-041 1S Lithium Battery Tester (compatible with JST/ MOLEX/ mCPX/ MCX Plugs)

Features:
Features:

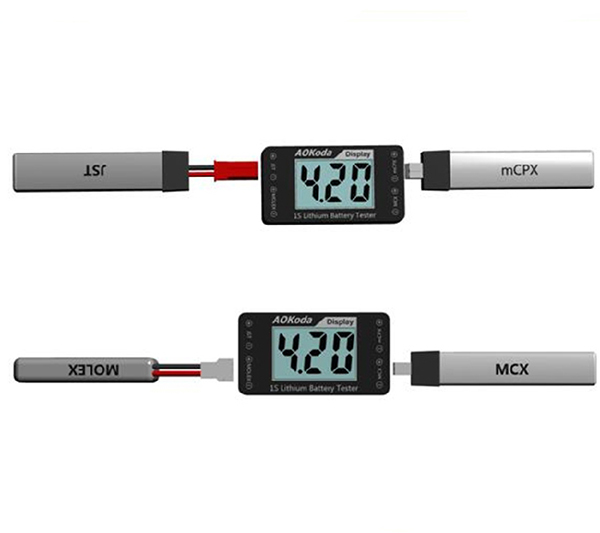

- Support four standard micro UAV battery interface, plug and play
- Supporting ports JST(2.54mm), MOLEX(2.0mm), mCPX(2.0mm), MCX(1.25mm)
- Support lithium battery LiFe(3.3/3.65V),LiPo (3.7/4.20V),Li-Hv(3.8/4.35V)
- Four battery interfaces support battery polarity reverse connection protection,
- Four battery interfaces are supported LiFe,LiPo,LiHv
- 0.36 inches red digital tube display, display battery voltage, battery voltage detection accuracy is accurate to 10mV
Specifications:

AOKoda AOK-041 1S Lithium Battery Tester (compatible with JST/ MOLEX/ mCPX/ MCX Plugs)

1.Support battery section: 1Cell
2.Voltage detector power: 0.05 W
3.Support battery type: LiFe 3.3V/LiPo 3.7V / Li-Hv 3.8V
4.Battery voltage input range: 2.50~4.35V @1Cell LiFe, LiPo, Li-Hv
5.Detection accuracy of voltage: 3.65V±0.01V, 4.20V±0.01V, 4.35V±0.01V
6.Voltage display: 0.36 inches red digital tube display, static display, unit V

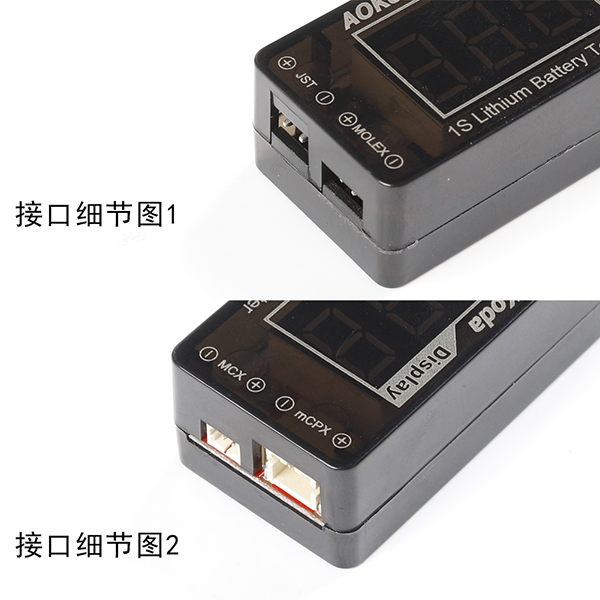

7.Battery interface: JST(2.54mm), MOLEX(2.0mm), mCPX(2.0mm), MCX(1.25mm)
8.Product dimensions: 43x23x15mm

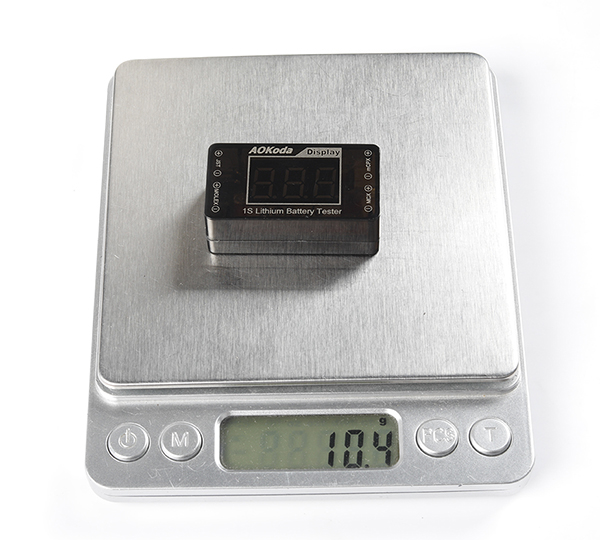

9.Product weight: 10g
Includes/Requires:
Includes:
1 x AOKoda AOK-041 Battery Tester
