Lithium Polymer (Li-poly) & Ni-Mh battery packs, battery chargers, Electric (Brushless) Motors, Electric Speed Controllers ( ESC ), Gyros, Electric Accessories etc.
   Electric Battery Chargers & Battery Accessories Lithium Polymer Battery ( Li-Poly, LIPB) Chargers AC 100-240V DC 14V 16A Dual Output AC Adapter A20
SKU:  CPA20D
Browse Chargery Power

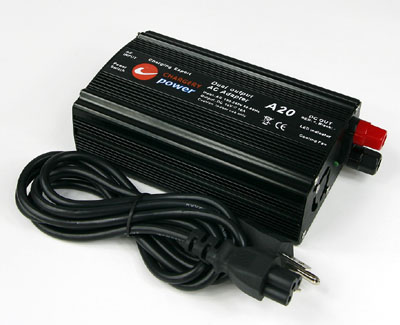

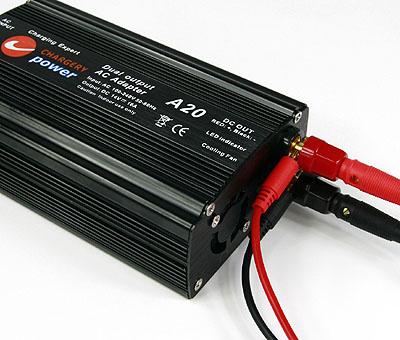

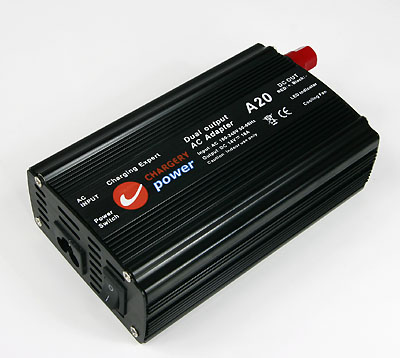

AC 100-240V DC 14V 16A Dual Output AC Adapter A20
Customers rating.
Add To Wish List
Added:2009/01/19
Updated:2009/01/19
Follow Us on:


  Tags: CHARGERY POWER  AC adapter  large current AC adapter  A20

Features:
The product will transform AC 100-240V into DC 14 V, its maximal output power reaches 250W, it may power most 10-18 V chargers.

Connect any Charger which is supposed to be powered by DC 10-18V, the switching power supply will provide up to 17 Amps. it is also equipped with both US / Japan and Europe AC plugs and works using 100 - 240V AC so it may be used internationally.

Feature:

1. Switching technology
2. Light & Convenient Plug In
3. Over current protection
4. Dual channel output for more application
5. Intelligent cooling fan starting automatically upon internal temperature
Specifications:
Input/Output Specifications:

1. Input Voltage: AC 100-240V, 50/60Hz
2. Range Voltage: AC 90-264 V, 47/63Hz
3. Output Power: 250W MAX.
4. Output Voltage: 14.0V(14.5V MAX.)
5. Output Current: 16A(17A MAX.)

General Specifications:

1. Operating Temperature: 0~40℃
2. Storage Temperature: -20~85℃
3. Operating Relative Humidity: 5~95%RH
4. Withstanding Voltage: AC 2000V(Min),5mA(Max)
5. Insulation Resistance: DC 500V 100MΩ(Min)

Mechanical Characteristics:

1. Dimension: 145*85*46 (mm, L*W*H)
2. AC Plug: Customized according to your demand
3. Case Material : AL alloy
4. DC Connector : 4mm gold banana jack
5. 2 channel outputs simultaneously
6. Net weight: 750g with input cable

Safety Certification:CE

A20 is fully committed to compliance with the European Union’s RoHS directive.
Includes/Requires:
