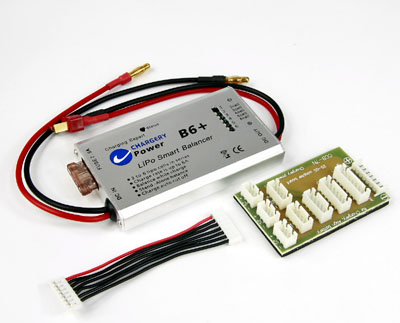

2-6S Smart Balancer for LiPo/Li-ion batteries pack B6+ (B6 Plus)
Customers rating.
Add To Wish List
Added:2009/01/19
Updated:2010/08/18
Follow Us on:


  Tags: CHARGERY POWER  2-6S  LiPo balancer  B6+

Features:

B6+ is a high performance Li-ion/LiPo balancer, it has a microprocessor to detect and balance each cell voltage of the 2 to 6 cells in series.


LED indicates the balance status of the battery pack, “FLASH” shows the high voltage cell is discharged till the difference of voltage reaches the lowest level. If all LEDS are off, the battery pack is balanced.


Cooperating with charger, the built-in software can detect the cell voltage in charging. When any cell voltage reaches 4.25v,  it will cut off the charge to prevent the battery overcharged.


you can balance the battery while charge, discharge or at stand alone mode.


Besides independent balance mode, you can connect any LiPo charger to the input lead first, then connect the B6+ to the balance connector on your pack, finally connect the output lead to the discharge lead of the pack.  so your pack is charging at up to 6A and balancing simultaneously.


Feature:



  1. Automatically detect and display battery balance status for any 2 to 6 cells pack

  2. Imbalance voltage warning and balancing

  3. Audio alarm for over voltage

  4. Audio alarm for under voltage

  5. LED(s) display each cell in balancing

  6. Automatically cut-off the charging circuit while any cell is over charged

  7. Reversely polarity protection on input, output and balance connector

  8. Balance 2 or 3 battery packs simultaneously

  9. With Special Connector Conversion Board(CCB) to fit all kinds of battery connectors


2 working mode:



  1. Stand-alone balancing

  2. Balancing while charge, need to be connected to professional charger.

Specifications:

Input/Output Specifications:



  1. Input Voltage/Current: DC 30V, 6 A MAX.

  2. Output Voltage:30V MAX.

  3. Output Current:6A MAX.


General Specifications:



  1. Operating Temperature:           0~40℃

  2. Storage Temperature:              -20~85℃

  3. Operating Relative Humidity: 5~95%RH


Mechanical Characteristics:



  1. Dimension: 85*52*13(mm, L*W*H)

  2. DC Input leads: 200mm silicon cable with 4mm gold banana plug

  3. DC Output leads:100mm silicon cable with alligator, JST, TAMIYA, DEANS and so on.

  4. Balances Connector : JST EHR -6PIN

  5. Case Material : Al alloy

  6. weight:50g


Safety Certification: CE


B6+ is fully committed to compliance with the European Union’s RoHS directive.



Related Products(not included):

Chargery Balancer connector Conversion Board (CCB)

The CCB is designed to connect the Chargery Balancer to the different brand LiPo battery packs with different balance connector, include TP, KOKAM, Flightpower, Polyquest, Hyperion, Electrifly etc.

The CCB is used to connect the B6 and 2 - 6S lipo battery packs.

To use CCB, you can balance 2 or 3LiPo battery packs at the same time, such as two 3S and three 2S,

Size:70*40*8(mm,L*W*T)

Weight: 67g
Includes/Requires:
Includes:
1 x smart balancer
1 x instruction manual
