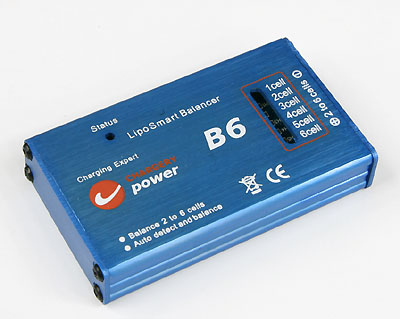

2-6S Smart Balancer for LiPo/Li-ion batteries pack B6
Customers rating.
Add To Wish List
Added:2009/01/19
Updated:2010/01/16
Follow Us on:


  Tags: CHARGERY POWER  2-6S  LiPo balancer  B6

Features:

B6 is a high performance Li-ion/LiPo balancer, it has a microprocessor to detect and balance each cell voltage of the 2 to 6 cells in series.


LED indicate the balance state of the battery pack, “FLASH” shows the high voltage cell is discharged till the difference of voltage reaches the lowest level. If all LEDS are off, your battery pack is balanced.





Cooperation with charger, the built-in software can detect the cell voltage in charging. When any cell voltage reaches 4.25v, it will buzz to prevent the battery overcharged


B6 is the smallest balancer, its size is 72*42*13.5(mm)


B6 independently work, it doesn't  need any input, just connect the B6 to the balance connector on your pack.  It automatically balance instantly until the pack is balanced.

Feature:



  1. Automatically detect and display battery balance status for any 2 to 6 cells pack

  2. Imbalance voltage warning and balancing

  3. Audio alarm for over voltage

  4. Audio alarm for under voltage

  5. LED(s) display each cell in balancing

  6. Alerts full charge status

  7. Balance 2 battery packs simultaneously

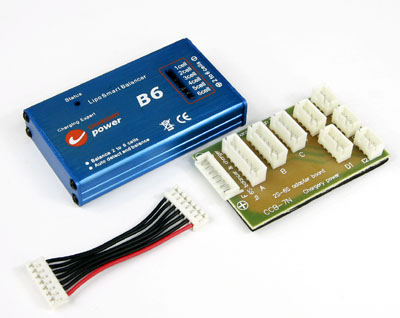

  8. With Special Connector Conversion Board(CCB) to fit all kinds of battery connectors


General Specifications:

Specifications:

General Specifications:



  1. Operating Temperature:                  0~40℃

  2. Storage Temperature:                    -20~85℃

  3. Operating Relative Humidity:         5~95%RH


Mechanical Characteristics:



  1. Dimension: 72*42*13.5(mm, L*W*H)

  2. Case Material : Al alloy

  3. Balances Connector : JST EHR 6PIN

  4. weight:50g


Safety Certification:CE


B6 is fully committed to compliance with the European Union’s RoHS directive.

Includes/Requires:
