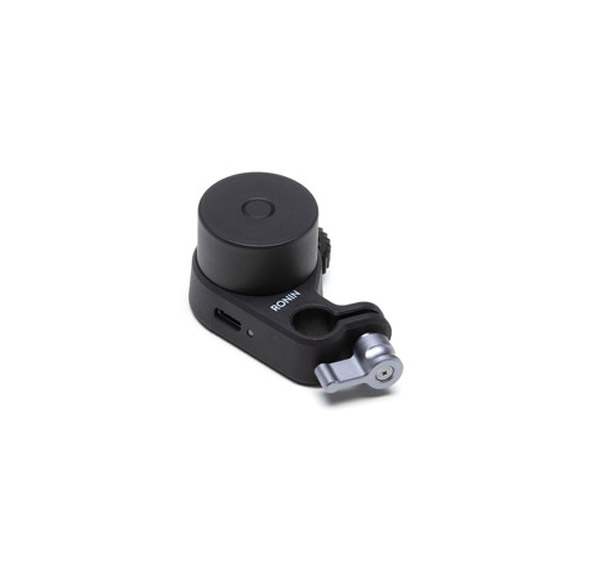

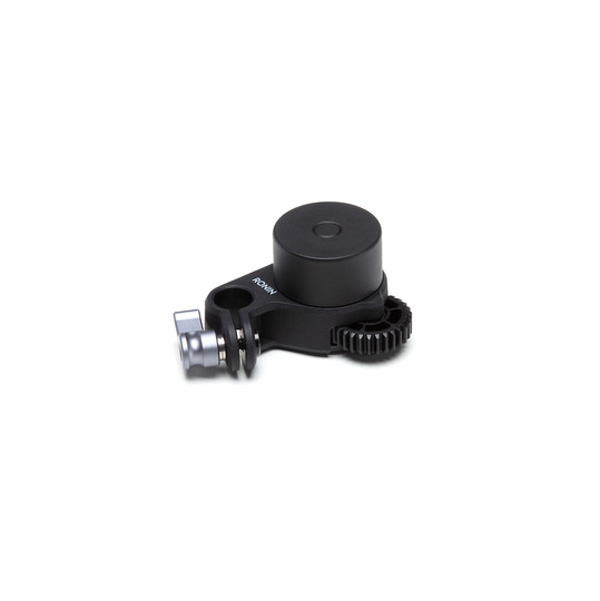

Ronin-SC Focus Motor
Customers rating.
Add To Wish List
Added:2020/06/01
Updated:2020/06/01
Follow Us on:


  Tags: Ronin-SC  Focus  Motor

Features:
The Ronin-SC Focus Motor works with the Ronin-SC Focus Wheel to control the camera focus.

Overview
The Ronin-SC Focus Motor works with the Ronin-SC Focus Wheel to control the camera focus, providing optimal shooting experience with a compact, low-noise design.
Specifications:

Ronin-SC Focus Motor


Focus Motor


Weight: 88 g


Dimensions: 71×47×34 mm


Max Torque: 0.2 Nm


Max Operating Speed: 100 RPM


Operating Current: Free current: 50 mA (5 V); Stall current: 1.2 A (5 V)


Operating Voltage: 5 V


Noise: 25 dB


Rod Clamp Inner Diameter: 12 mm


Gear: No. of teeth 40; Module: 0.8


Operating Temperature: -20 to 45°C


Gear:


No. of teeth: 151


Module: 0.8


Diameter: 30-110 mm


Length: 377 mm


Compatibility
Ronin-SC
Includes/Requires:

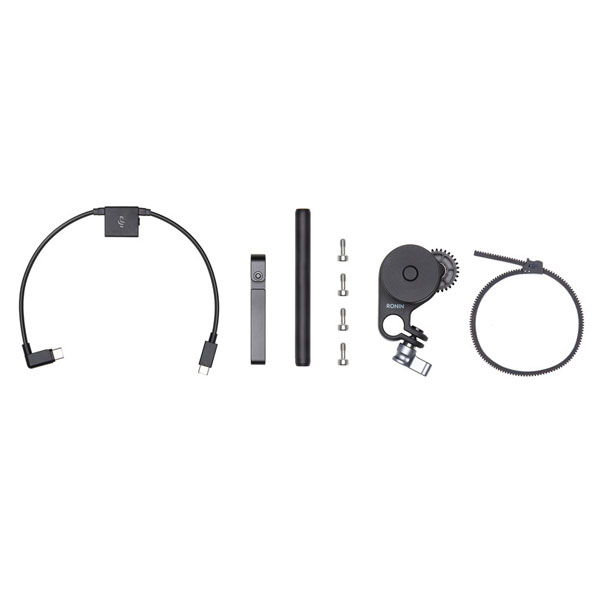

Includes:

Focus Motor × 1


Rod Mount × 1


12 mm Rod × 1


M4 Screw × 4


Focus Gear Strip × 1


RSS Splitter × 1
