DJI full line products including drones, imaging products & enterprise products.
   DJI DJI Imaging Solutions DJI Goggles (FPV Video Glasses)
   FPV/ Aerial Photography Video Glasses/ Monitors
SKU:  DJIGOGGLES
Browse DJI

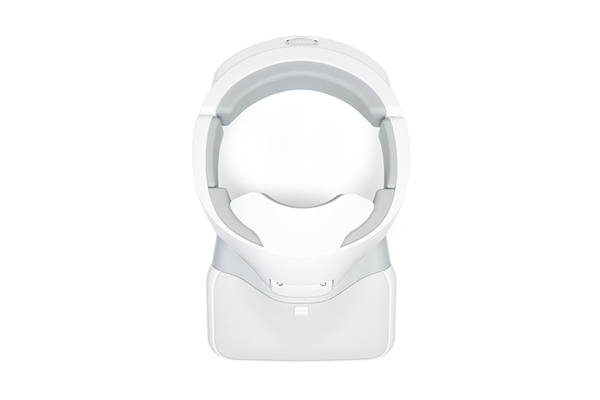

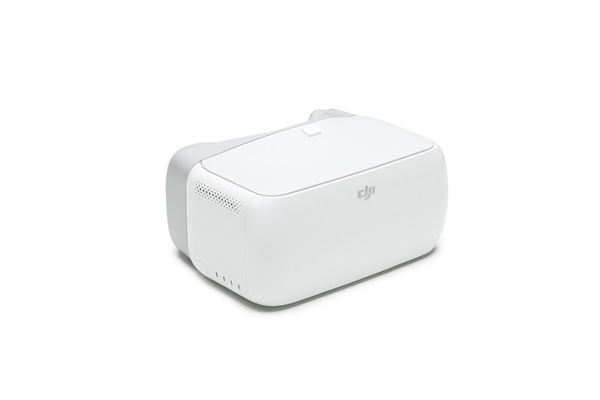

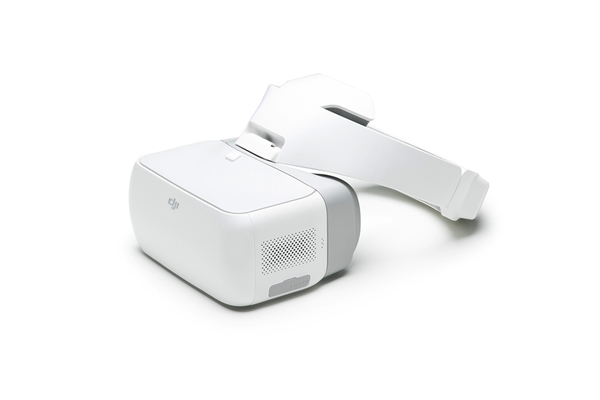

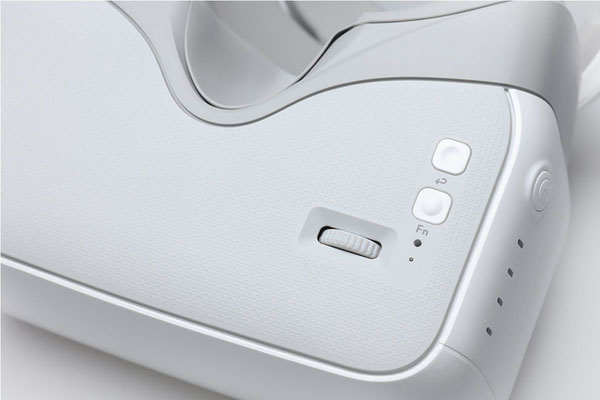

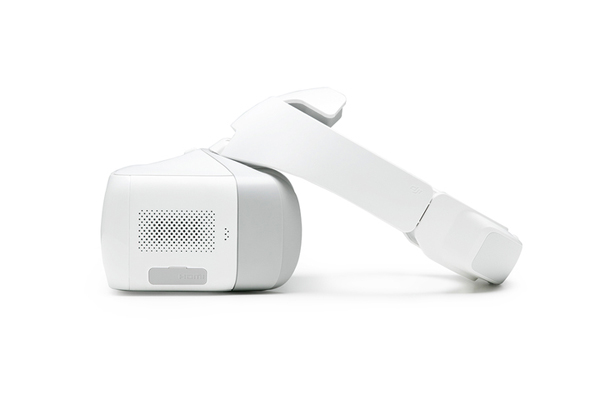

DJI Goggles (FPV Video Glasses)
Customers rating.
Add To Wish List
Added:2017/05/02
Updated:2017/05/02
Follow Us on:


  Tags: DJI Goggles (FPV Video Glasses)

Features:










[1] DJI Goggles supports Mavic Pro, Phantom 4 series and Inspire series. Some functions will be adapted for different DJI Products.
[2] HD mode: 1080p/30fps: near-field with no interference; 720p/30fps: at long range or with interference; Smooth Mode: 720p/60fps.
[3] Using the Mavic Pro, stream wirelessly at 720p/60fps and record video at 720p/120fps.
[4] For Mavic Pro with two pairs of DJI Goggles and two RCs only.
[5] The use of a spotter is essential when wearing DJI Goggles. The aircraft should not fly beyond the spotter’s line of sight.
[6] DJI Goggles can only play content downloaded from DJI drones.
Specifications:

DJI Goggles (FPV Video Glasses)


BASIC

WeightGoggles: 495 g
Headband: 500 g
DimensionsGoggles: 195×155×110 mm
Headband(Folded): 255×205×92 mm
FOV85° (single screen)
Screen Size5 inch×2
Interpupillary Distance Range58 – 70 mm
Refresh rate60 Hz
Screen Resolution3840×1080 (single screen: 1920×1080)
Operating Frequency2.4 GHz
Max.Transmission DistanceSame as the aircraft connected
Video Downlink Resolution1080p 30, 720p 60, 720p 30
Video Downlink Latency at least
(Near field and free of interference)
110 ms (Mavic Pro, 720p60, video format: 720p120) 150 ms (Phantom 4 series, 720p60, video format: 720p60/720p120)
140 ms (Inspire 2+X5S, 720p60, video format: 1080p120)
190 ms (Inspire 2+X4S, 720p60, video format: 1080p60)
Battery Capacity9440 mAh
Battery Energy35.44 Wh
Max Operating Time6 hrs
Operating Temperature Range32°F (0°C) - 104°F (40°C)
I/O InterfaceMicro USB, 3.5mm audio jack,
HDMI type-D, Micro SD card slot
HDMI SupportedHDMI 1.4b, HDCP 1.4
SensorsGyroscope, Accelerometer, Proximity sensor
ChargerInput: 100-240VAC, 50/60 Hz. 0.5A
Output: 5V,3A ; 9V,2A;12V,1.5A

Includes/Requires:
Includes:
1 x DJI Goggles glasses
