Features:
Specifications:

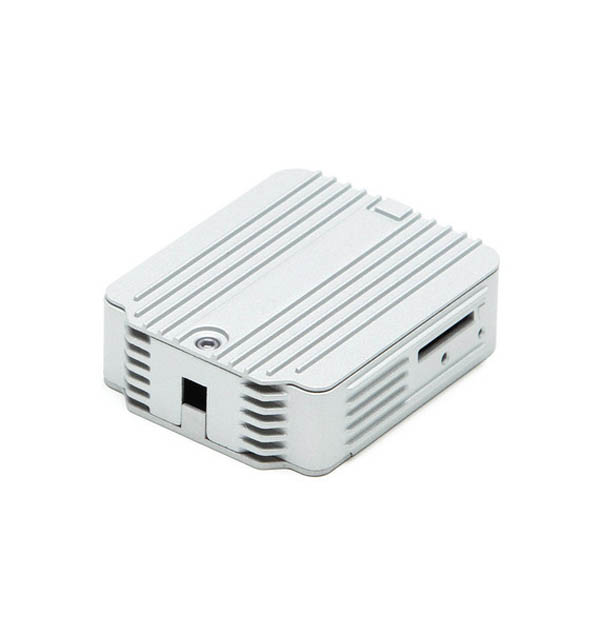

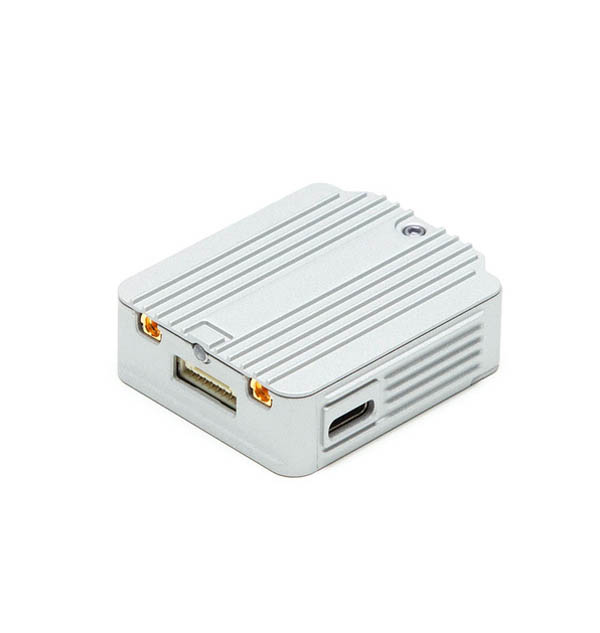

DJI FPV Air Unit


DJI FPV AIR UNIT

WeightAir Unit (Camera included): 45.8 g
3.9 g (MMCX elbow antenna each)
DimensionsAir Unit: 44×37.8×14.4 mm
Camera: 27.4×21.1×20.1 mm
Coaxial Cable: 100 mm
Operating Frequency5.725-5.850 GHz
Transmitter Power (EIRP)FCC/SRRC/MIC: <30 dBm;
CE: <14 dBm
Min. Latency (end-to-end)Low Latency Mode (720p/120fps): <28 ms
High-Quality Mode (720p/60fps): <40 ms
Max. Transmission DistanceFCC/SRRC: <4 km;
CE: <0.7 km;
MIC: <2.5km
Video FormatMP4 (Video format: H.264; Audio format: ACC-LC)
I/O InterfaceUSB-C, MMCX, 3-in-1 port, microSD card slot
Supported Flight Control SystemThe DJI FPV Air Unit is only compatible with flight controllers that support Betaflight
Operating Temperature Range32° to 104°F (0° to 40°C)
Input Power7.4-17.6 V, about 4-9 W
Channels8
Channels infoFCC
Channel 1: 5660
Channel 2: 5695
Channel 3: 5735
Channel 4: 5770
Channel 5: 5805
Channel 6: 5878
Channel 7: 5914
Channel 8: 5839

CE/SRRC
Channel 1: 5735
Channel 2: 5770
Channel 3: 5805
Channel 8: 5839

MIC
Channel 1: 5660
Channel 2: 5700
Channel 8: 5745


Includes/Requires:
Includes:


1 x FPV air unit
