DJI full line products including drones, imaging products & enterprise products.
   DJI DJI Imaging Solutions DJI Digital FPV Goggles
   FPV/ Aerial Photography Video Glasses/ Monitors
SKU:  DJI-FPV02
Browse DJI
DJI Digital FPV Goggles
Customers rating.
Add To Wish List
Added:2019/10/05
Updated:2019/10/05
Follow Us on:


  Tags: DJI  Digital  FPV  Goggles

Features:
Specifications:

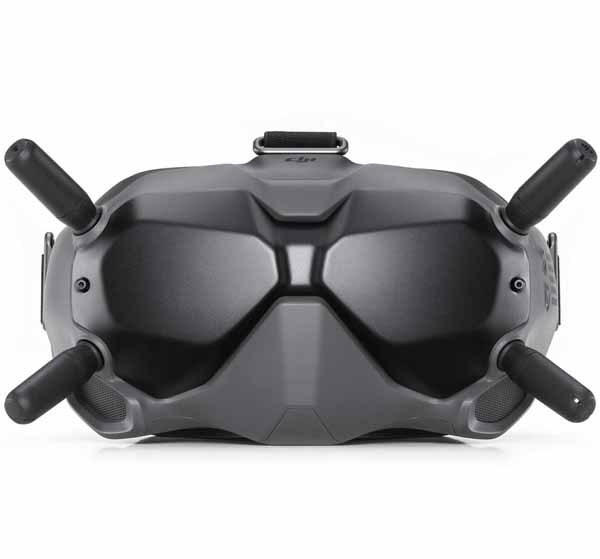

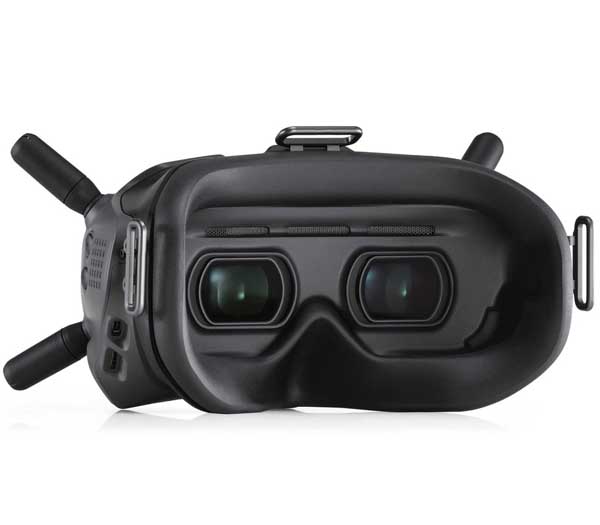

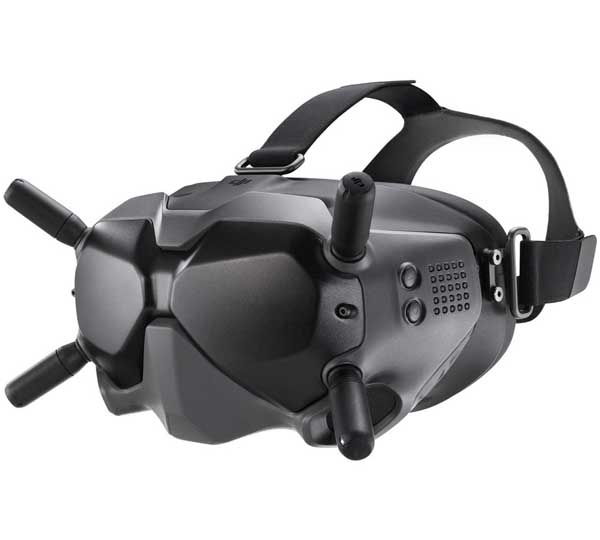

DJI Digital FPV Goggles



DJI FPV GOGGLES



Weight




Air Unit (Camera included): 45.8 g
3.9 g (each MMCX elbow)
DimensionsAir Unit: 44×37.8×14.4 mm
Camera: 27.4×21.1×20.1 mm
Coaxial Cable: 100 mm
Operating Frequency5.725-5.850 GHz
Transmitter Power (EIRP)Low Latency Mode (720p/120fps): <28 ms;
CE: <14 dBm
Min. Latency (end-to-end)Low Latency Mode (720p/120fps): <28 ms
High-Quality Mode (720p/60fps): <40 ms
Max. Transmission DistanceFCC/SRRC: <4 km; CE: <0.7 km
Video FormatMP4 (Video format: H.264; Audio format: ACC-LC)
I/O InterfaceUSB-C, MMCX, 3-in-1 port, microSD card slot
Supported Flight Control SystemThe DJI FPV Air Unit is only compatible with flight controllers that support Betaflight
Operating Temperature Range32° to 104°F (0° to 40°C)
Input Power7.4-17.6 V, about 4-9 W
Channels8
Channels infoFCC
Channel 1: 5660
Channel 2: 5695
Channel 3: 5735
Channel 4: 5770
Channel 5: 5805
Channel 6: 5878
Channel 7: 5914
Channel 8: 5839

CE/SRRC
Channel 1: 5735
Channel 2: 5770
Channel 3: 5805
Channel 8: 5839

MIC
Channel 1: 5660
Channel 2: 5700
Channel 8: 5745

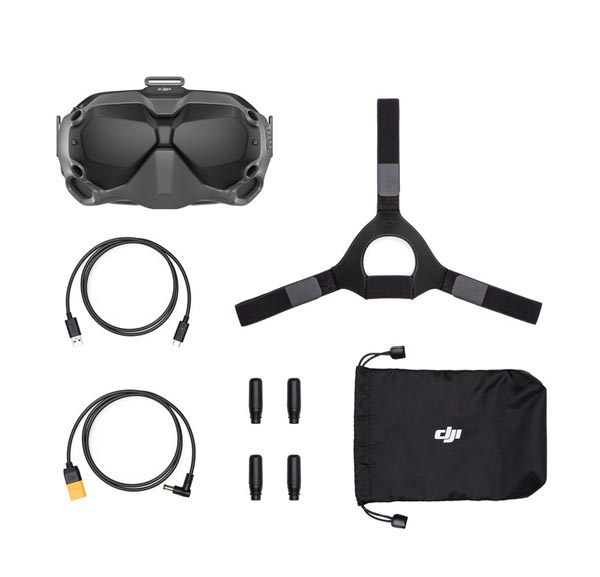

Includes/Requires:
Includes:





* This is the Goggles only, other accessories like radio, camera etc. are sold separately.
