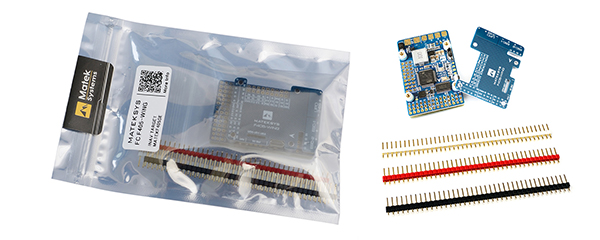

Matek FC405-WING Flight Controller W/ Built-in OSD BEC
Customers rating.
Add To Wish List
Added:2019/06/26
Updated:2019/06/26
Follow Us on:


  Tags: Matek  FC405-WING  Flight  Controller  W  Built-in  OSD  BEC

Features:

Specifications:

Matek FC405-WING Flight Controller W/ Built-in OSD BEC


FC Specifications


MCU: 168MHz STM32F405
IMU: MPU6000 accelerometer/gyro (SPI)
Baro: BMP280 (I2C)
OSD: INAV OSD w/ AT7456E chip
Blackbox: MicroSD card slot (SD/SDHC)
VCP & 6x UARTs
2x Motors, 7x Servos outputs
2x I2C
3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
Built in inverter for SBUS input (UART2-RX)
PPM/UART Shared: UART2-RX
SoftSerial on TX2 pad
Battery Voltage Sensor: 1:10 (Scale 1100)
WS2812 Led Strip : Yes
Beeper : Yes
RSSI: Yes
FC Firmware


INAV Flight
Target: MATEKF405SE
PDB


Input voltage range: 9~30V (3~6S LiPo) w/TVS protection
2x ESC power pads
Current Senor: 104A,  3.3V ADC,  Scale 317
BEC 5V output


Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
Continuous current: 2 Amps, Max.3A
BEC 9V /12V output


Designed for Video Transmitter, Camera, Gimbal ect.
Continuous current: 2 Amps, Max.3A
12V option with Jumper pad
BEC Vx output


Designed for Servos
Voltage adjustable, 5V Default, 6V or 7.2V via jumper
Continuous current: 5 Amps, Max.6A
Output Ripple: 50mV (VIn=24V, VOut=5V@5A load)
BEC 3.3V output


Designed for Baro / Compass module and Spektrum RX
Linear Regulator
Continuous current: 500mA
Physical


Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
Dimensions: 56 x 36 x 13 mm
Weight: 25g






Includes/Requires:
Includes:
1 x Flight control
3 x pin set
