Specifications:

Matek F765-WING Flight Controller W/ Built-in OSD BEC


FC Specifications


MCU: STM32F765VIT6, 216MHz , 512KB RAM, 2MB Flash
IMU: MPU6000 (SPI1) & ICM20602 (SPI3)
Baro: BMP280 (I2C2)
OSD: AT7456E (SPI2)
Blackbox: MicroSD card slot (SDIO)
7x Uarts (1,2,3,4,6,7,8) with built-in inversion.
1x Softserial1_Tx (INAV)
12x PWM outputs (S1~S10 support Dshot)
6x ADC (VBAT, Current, RSSI, Analog AirSpeed, VB2, CU2)
3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
2x I2C
1x SPI4 breakout
Switchable Dual Camera Inputs
Switchable 5V/9V(12V) for Camera/VTX
High-precision Current Sense
ADC VB2 voltage divider: 1K:10K
ADC AirSpeed voltage divider: 10K:10K
TR/SA VTX control: Yes
WS2812 Led Strip : Yes
Beeper : Yes
RSSI: Yes
Analog Airspeed sensor: Yes
Digital Airspeed sensor: Yes
FC Firmware


INAV Target: MATEKF765
ArduPilot(ChiBiOS)  Target: MATEKF765-WING
PDB


Input voltage range: 9~36V (3~6S LiPo) w/TVS protection
2x ESC power pads
Battery Voltage Sensor: 1:10 (Scale 1100 in INAV,  BATT_VOLT_MULT 11.0 in ArduPilot)
Current Senor: 132A,  3.3V ADC  (Scale 250 in INAV,  40 A/V in ArduPilot)
BEC 5V output


Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
Continuous current: 2 Amps, Max.3A
BEC 9V /12V output


Designed for Video Transmitter, Camera, Gimbal ect.
Continuous current: 2 Amps, Max.3A
12V option with Jumper pad
BEC Vx output


Designed for Servos
Voltage adjustable, 5V Default, 6V or 7.2V via jumper
Continuous current: 8 Amps, Max.10A
BEC 3.3V output


Designed for Baro / Compass module and Spektrum RX
Linear Regulator
Continuous current: 200mA
Physical


Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
Dimensions: 54 x 36 x 13 mm
Weight: 26g

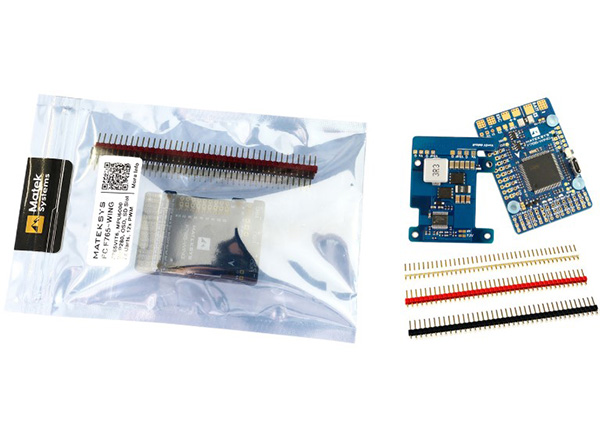

Includes/Requires:
Includes:
1 x Flight control
3 x pin set
