MFD 12CH Automatic Antenna Tracker (AAT) Combo
Customers rating.
Add To Wish List
Added:2013/06/14
Updated:2018/07/12
Follow Us on:


  Tags: automatic antenna tracker  AAT  FlyDream  MyFlyDream

Features:
THIS IS THE 12CH VERSION, SUPPORTS MORE CHANNELS FOR DOWNSTREAM DATA TRANSMISSION.
IT IS A MUST HAVE DEVICE FOR LONG DISTANCE FPV AND PHOTOGRAPHY .

The MyFlyDream Tracking system will work with almost every GPS that uses the NMEA standard.

The TeleFlyOSD (not included) is connected to your GPS unit and transmits the GPS data to the ground via the audio channel of your AV transmitter. On the ground it is fed through the AAT (Automatic Antenna Tracker) to the MyFlyDream-Driver. The Driver handles the signal and controls the servos to turn the AAT.



What makes the MyFlyDream Tracking System so special:

- The high quality slipring provides endless rotation, meaning endless freedom, you will never  again temporarily  loose your signal because the tracker has reached its maximum rotation angle and is turning over to the other side. The 12CH AAT Package includes a 12 channel slipring, so you have 7 spare channels where you can feed another signal through. You can use that for a second video channel and/or an extra audio channel.
- The high quality slipring provides endless rotation, meaning endless freedom, you will never  again temporarily  loose your signal because the tracker has reached its maximum rotation angle and is turning over to the other side. The 12CH AAT Package includes a 12 channel slipring, so you have 7 spare channels where you can feed another signal through. You can use that for a second video channel and/or an extra audio channel.


- The built-in compass unit makes setting up the tracker on the flying field a breeze. No need to check the correct orientation by hand or walk around with your plane in hand, just put your MyFlyDream AAT on a tripod or other support, connect everything with a power source, wait for a proper GPS fix, push "Set Home" and FLY. It´s as simple as that.


-The TeleFlyOSD weighs only 8g and is very small (46x25x7mm) . It can be added to almost every setup easily even where the space is very sparse and weight is always an issue. It also offers basic OSD features like :


·   Flying Time


·   Virtual compass


·   GPS status



 Battery voltage (with extension board)

 Current amperage (with extension board)

 Home Arrow

 Distance to Home

 Height

 Speed


Specifications:
Manufacturer didn't name this product like  V4, V5 etc., so-called versions are named by some sellers, thanks to the direct link and fast circling of our stock, the version we sell usually is the latest available version.
Includes/Requires:

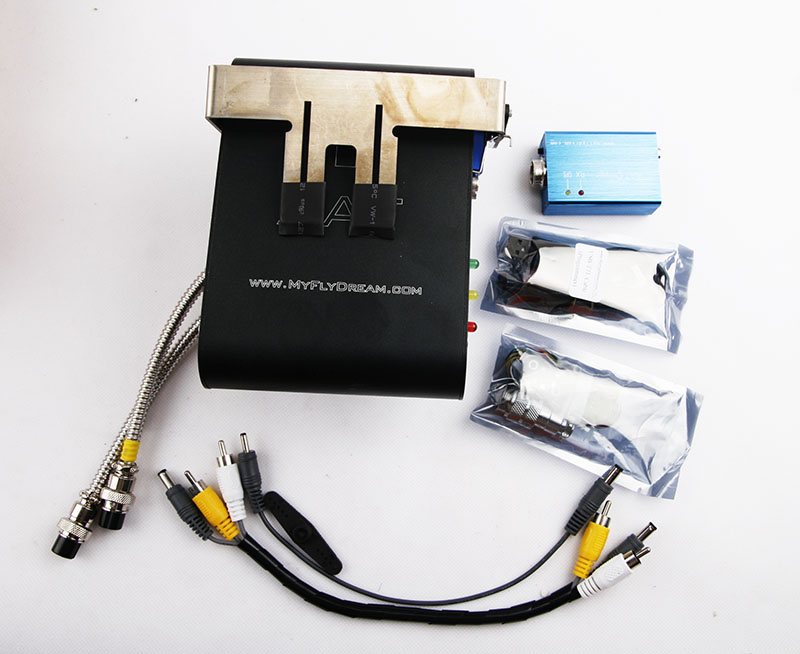

Includes:

AATDriver x 1

MyFlyDream 12CH Tracker x 1

USB Programmer with cable x 1

*NOTICE: Now we supply USB-Data cable instead of Blutooth moudle for AATDriver.
* GPS module and plate antennas are NOT included. You can use MFD 10hz GPS Module or other standard GPS modules.
* TeleFlyPro OSD module is removed from the combo since Sep. 13 2015.
