   FPV/ Aerial Photography Video TX/RX & Accy. LawMate 1.2G 1000mW FPV Transmitter (VTX) TX-120015 (500mW/ 1000mW switchable)
SKU:  TX-120015

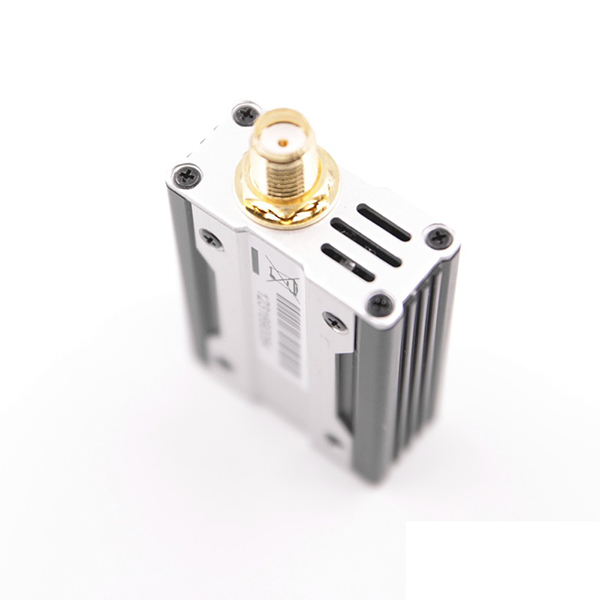

LawMate 1.2G 1000mW FPV Transmitter (VTX) TX-120015 (500mW/ 1000mW switchable)
Customers rating.
Add To Wish List
Added:2019/06/17
Updated:2019/06/17
Follow Us on:


  Tags: LawMate  1.2G  1000mW  FPV  Transmitter  VTX  TX-120015  500mW  1000mW  switchable

Features:
Features :
- 1W 1.2GHz A/V wireless transmitter module in compact size
- 8 Audio/Video output frequencies for each transmitter
- Integrated Circuit: Adopted digital phase locked loop circuit
- With light aluminum housing, it weighs 17g
Specifications:

LawMate 1.2G 1000mW FPV Transmitter (VTX) TX-120015 (500mW/ 1000mW switchable)



- Model: TX-120015
- Frequency: 1200MHz
- Available Channels: 8-Ch
- Voice Frequency Carrier: 5.5MHz
- Working Voltage: DC 12V
- Working Current: 300 to 350mA
- Reverse Distance: 200m (Open Space)
- Transmission Power: 30±1dBm
- Power Consumption: 3.6W
- Operating Temperature: 0 to 60℃
- Working Humidity: 20 to 80%
- Select Channels: Via Dip Switch
- Connector of Antenna: SMA
- Frequency Locking Method: Digital Phase Lock Loop
- Size: 37.5 x 27 x 12.6mm (L*W*H)
- Weight: 17±1g

Transmitter Channel List:
- Model: TX-120015
- Switch A/B of Receiver: B
- CH1: 1080
- CH2: 1120
- CH3: 1160
- CH4: 1200
- CH5: 1010
- CH6: 1040
- CH7: 1240
- CH8: 1280

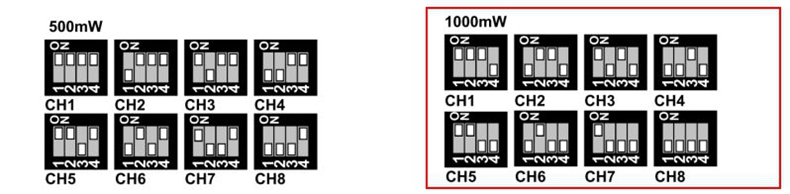

Adjust Frequencies of the Transmitter:




Note:
Please check with your local authorities regarding operation of this equipment before you purchase. Regulations on power output, usable frequencies and licences to operate vary from region to region.



Includes/Requires:
Includes:
1 x transmitting module (TX only)
1 x antenna


Requires:
1 x Receiver
