   FPV/ Aerial Photography Video TX/RX & Accy. HiEE 5.8G 600mw 32-Channel A/V Transmitter W/ Channel Display TSD3206
SKU:  TSD3206

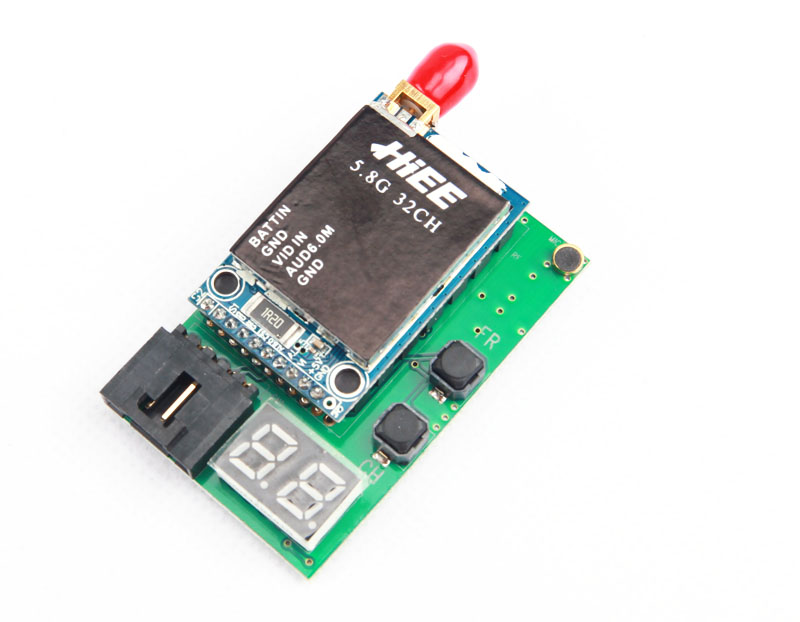

HiEE 5.8G 600mw 32-Channel A/V Transmitter W/ Channel Display TSD3206
Customers rating.
Add To Wish List
Added:2014/07/24
Updated:2014/07/24
Follow Us on:


  Tags: HiEE 5.8G 600mw 32-Channel A/V Transmitter W/ Channel Display TSD3206

Features:

Special features:
- 32 channels, compatible with most receivers available on market.
- 3-6S Wide input voltage range.

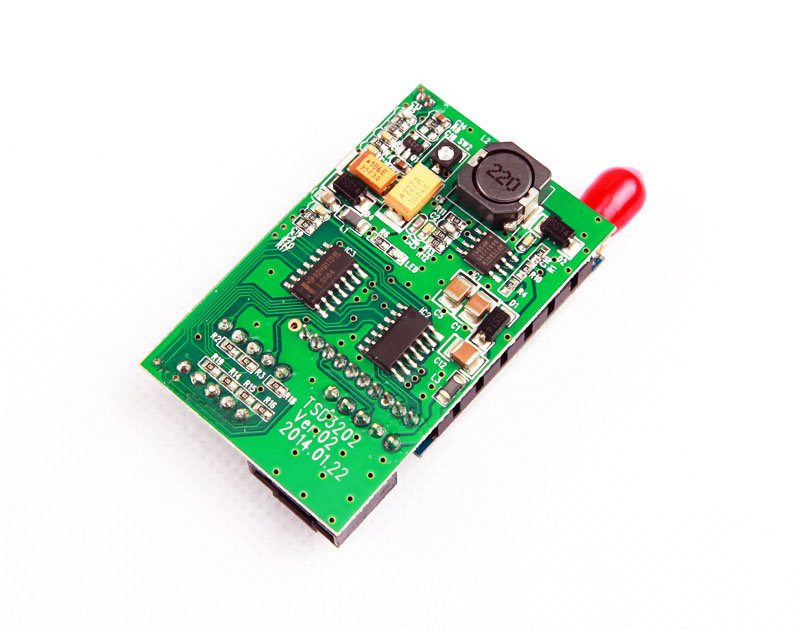

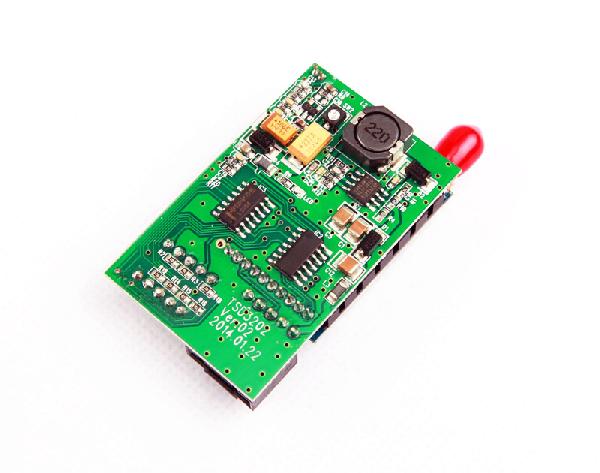

- Large PCB design, ensures heat radiation & reliability during long time transmission.
Specifications:

HiEE  5.8G 600mw 32-Channel A/V Transmitter W/ Channel Display TSD3206

video format supported: NTSC/PAL  (auto)
Audio format supported: 6.0M and 6.5M audio coding, support conventional AAT system
Power input: 2-6S
Working current: 400MA @12V
Antenna connector: RP-SMA, jack (module side)
Dimension: 56 x 35 x 12mm
Weight: 22g (TX module only)




CH

CH

FR



CH1

CH2

CH3

CH4

CH5

CH6

CH7

CH8

FR

FR1(A)

5865M

5845M

5825M

5805M

5785M

5765M

5745M

5725M

FR2(B)

5733M

5752M

5771M

5790M

5809M

5828M

5847M

5866M

FR3(E)

5705M

5685M

5665M

5645M

5885M

5905M

5925M

5945M

FR4(F)

5740M

5760M

5780M

5800M

5820M

5840M

5860M

5860M

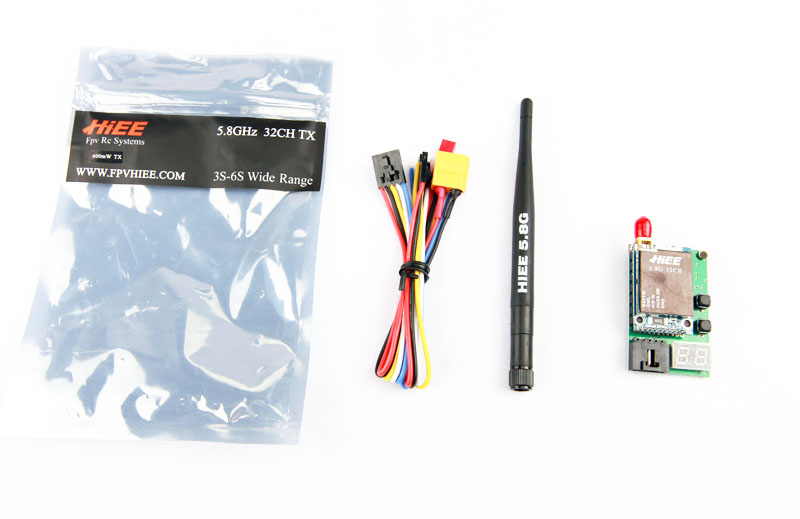

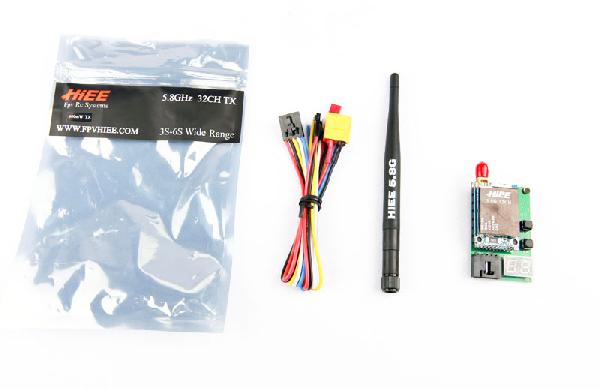

Includes/Requires:
Includes:
1 x transmitting unit (TX)
1 x power supply cable
1 x 5.8G 2db antenna
1 x A/V wire
