   FPV/ Aerial Photography Cameras/Video Recorder/Capture FPV 520 Line Super Light 4g CMOS Camera MC900D-V9 PAL
SKU:  900DV9

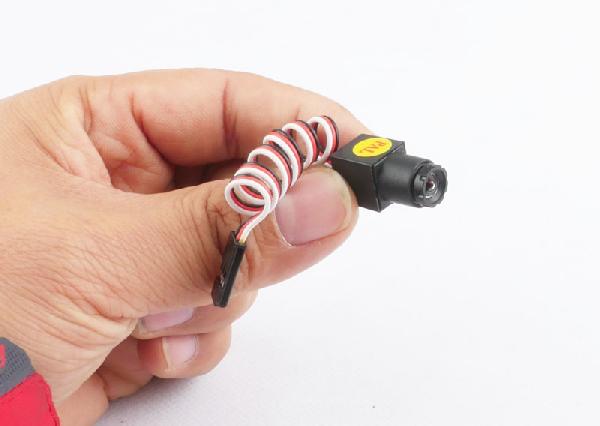

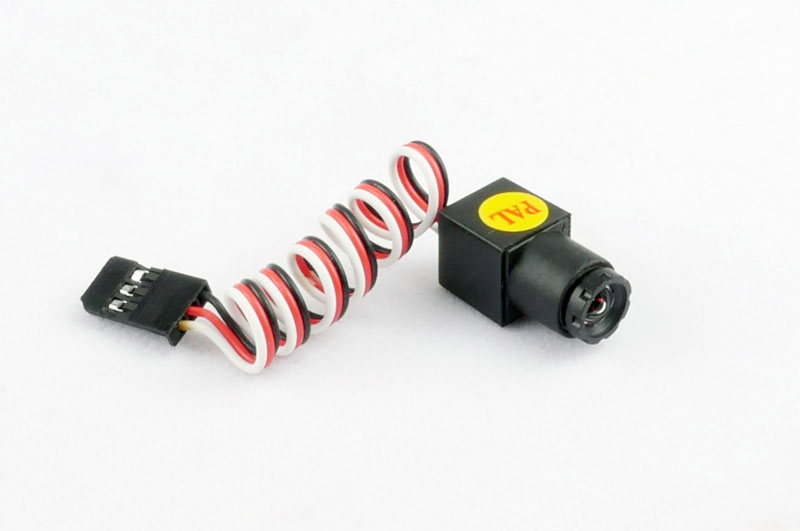

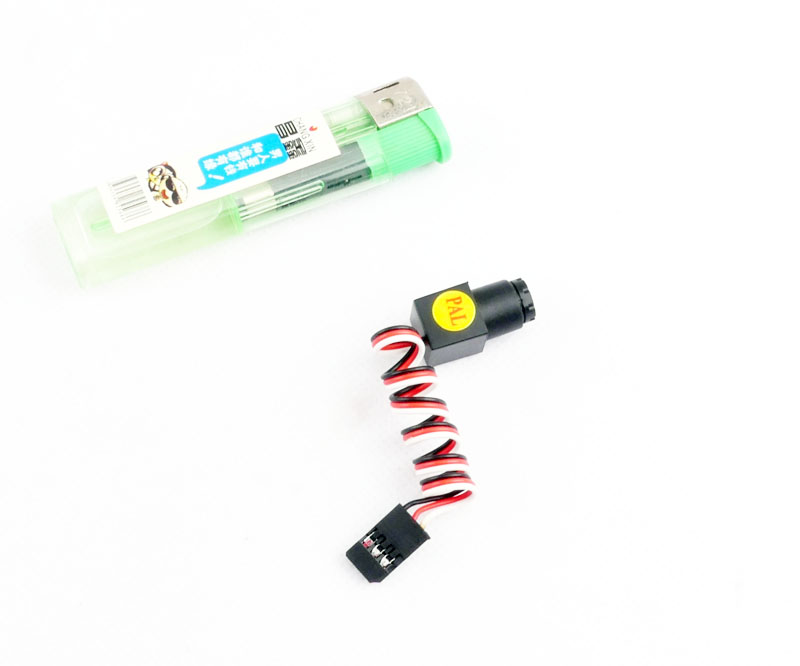

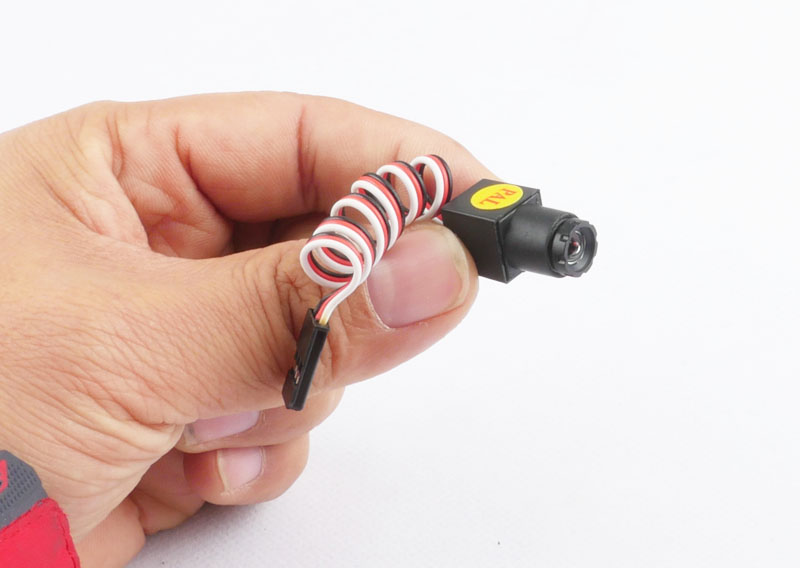

FPV 520 Line Super Light 4g CMOS Camera MC900D-V9 PAL
Customers rating.
Add To Wish List
Added:2014/11/09
Updated:2014/11/09
Follow Us on:


  Tags: FPV 520 Line Super Light 4g CMOS Camera MC900D-V9 PAL

Features:

Features:

1. Small Size: easy to install into narrow room and slim tube, etc.;
2. Light Weight: easy install without causing unnecessary damage on object surface;
3. High resolution, high sensitivity, high SNR;
4. Day & night dual mode auto switch;
5. Low Illumination, high quality video record function;
6. Low Current and power consumption;
7. CMOS sensor generation IV+DSP chip offer true color & HD video.

Specifications:

FPV 520 Line Super Light 4g CMOS Camera MC900D-V9 PAL


Camera:
Resolution: 900 line HD camera
Power input: 6-30V wide range input

Transmitter module:
Power: 200mW
Band: 5.8G
Channel number: 32Ch
Video format supported: P / N /S  automatic
Antenna connector: SMA, jack (Module side)

Gimble:
Axis number: 2
Servo voltage: 4.8-6V

PICK UP ELEMENT: Single chip 1/3 CMOS
SYSTEM: PAL
NUMBER OF PIXEL: 786(H)×576(V)
SENSOR DIMENSION: 4.75mm(H)×3.55mm(V)
HORIZONTAL RESOLUTION: Approximately 480TV Lines
SENSITIVITY: 0.008Lux/F1.2
LENS & VIEW ANGLE: 0.5mm F1.2 / 90°
S/N RATIO: 48dB
AUTO GAIN CONTROL: OUT
WHITE BALANCE CONTROL: OUT
BACK LIGHT COMPENSATION: OUT
VIDEO OUT: 1.0V p-p/75ohm
AUDIO OUT: 1.0V p-p/1Kohm
WEIGHT : 4g
WORK CURRENT: DC12V: 35mA
POWER REQUIREMENT: DC12V:(4-24V )
OPERATING TEMPERATURE: - 10° C ~ +50°C ,less than  90% RH
Connection: PIN1 -> Red  DC5V /12V;  PIN2 -> Black GND;  PIN3 -> Yellow VIDEO OUT;  PIN4 -> White AUDIO OUT



Includes/Requires:
Includes:
1 x camera with Futaba connector
