   FPV/ Aerial Photography Video TX/RX & Accy. FPV 5.8G 8CH 2000mW High Power A/V Transmitter (TX) TX52W | SMA, jack
SKU:  TX-52W

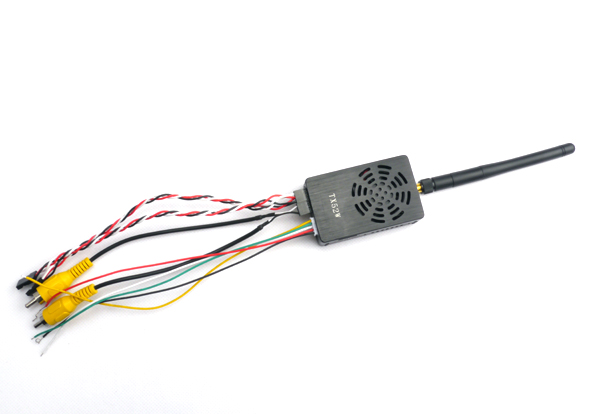

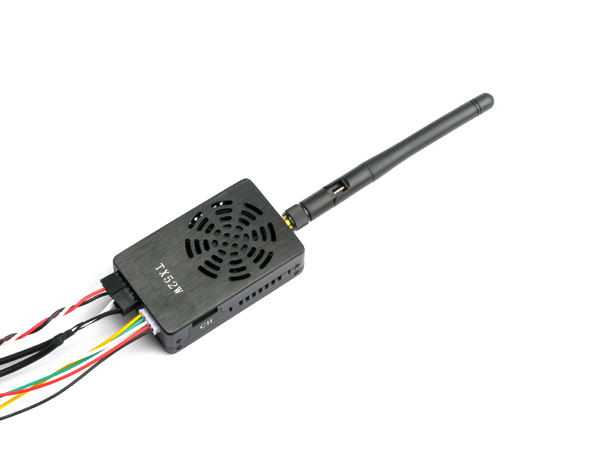

FPV 5.8G 8CH 2000mW High Power A/V Transmitter (TX) TX52W | SMA, jack
Customers rating.
Manual:
Add To Wish List
Added:2013/11/01
Updated:2013/11/01
Follow Us on:


  Tags: high power AV transmitter  AV transmitting module  FPV AV system

Features:
FPV 5.8G 8CH 2000mW High Power A/V Transmitter (TX) TX52W | SMA, jack

Special Features:

2 ways signal inputs, input signal is switchable in air.
Transmitting frequency is switchable in air


* Hint:  High power transmitting device may cause greater interference to other devices, please install the transmitter away from sensitive accessories like receiver, IMU, GPS etc. of your system.

* Do make sure the TX antenna is installed securely before power on high power transmitting module, improper antenna or without antenna may cause permanent damage to the TX, and it is highly suggested not to replace the original antenna for this device.








Specifications:

FPV 5.8G 8CH 2000mW High Power A/V Transmitter (TX) TX52W | SMA, jack

Video format supported: NTSC/PAL
Antenna connection: SMA, jack (module side ) See connector type diagram
Power input: 12V (3S Lipo suggested)
Video output ports number:  2
Weight: 80g



Working frequencies:

5705  5685 5665  5645  5885 5905  5925  5945

5733  5752 5771  5790  5809 5828  5847  5866

5740  5760 5780  5800  5820 5840  5860  5880

5865  5845 5825  5805  5785 5765  5745  5725

Includes/Requires:
Includes:
1 x receiver (RX)
1 x antennas (2db)
1 x power wire

Requires:
1 x transmitter (TX)
