   FPV/ Aerial Photography Video TX/RX & Accy. FPV 5.8G 800mW 32Ch Transmitter TX58-800 | RP-SMA, jack
SKU:  TX5880

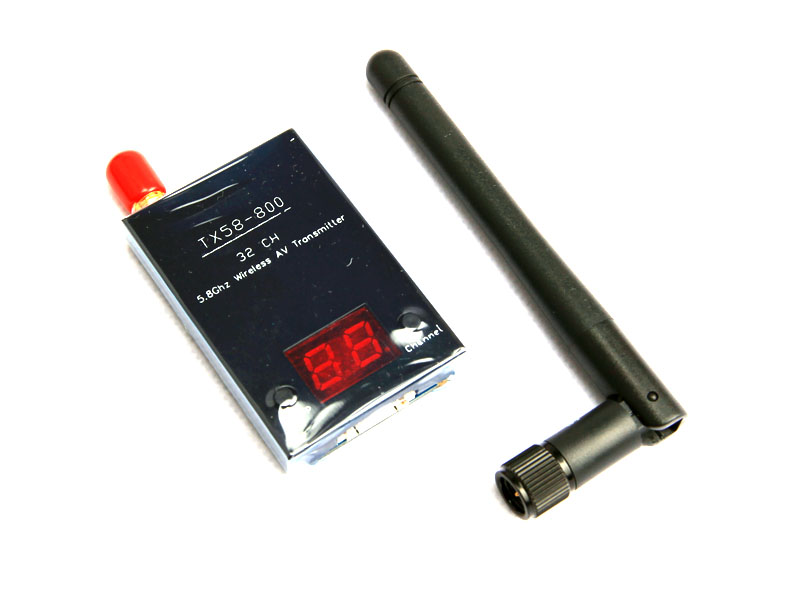

FPV 5.8G 800mW 32Ch Transmitter TX58-800 | RP-SMA, jack
Customers rating.
Add To Wish List
Added:2014/03/14
Updated:2016/03/07
Follow Us on:



  Tags: FPV  32 channels

Specifications:

FPV 5.8G 800mW  32Ch Transmitter TX58-800

Video format supported: NTSC/PAL
Antenna connection: RP-SMA, jack (module side ) See connector type diagram

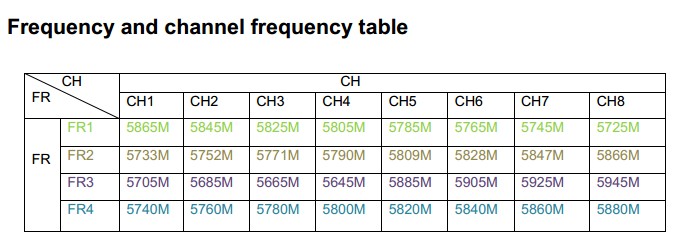

Working channel number: 32
Power input: DC +7V to +24V/ 2-6S Lipo, wide range power input (12V is recommended)
Working currency: 300mA @ 12V
Antenna Impedance: 50Ω
Antenna Gain: 3dB
Video Output level: 1.0Vp-p Typ/75Ω
Audio Output Level: 1.0Vp-p Typ/10KΩ
Weight: 30g
Dimension: 50 x 35 x 9 (excluding antenna)





Includes/Requires:

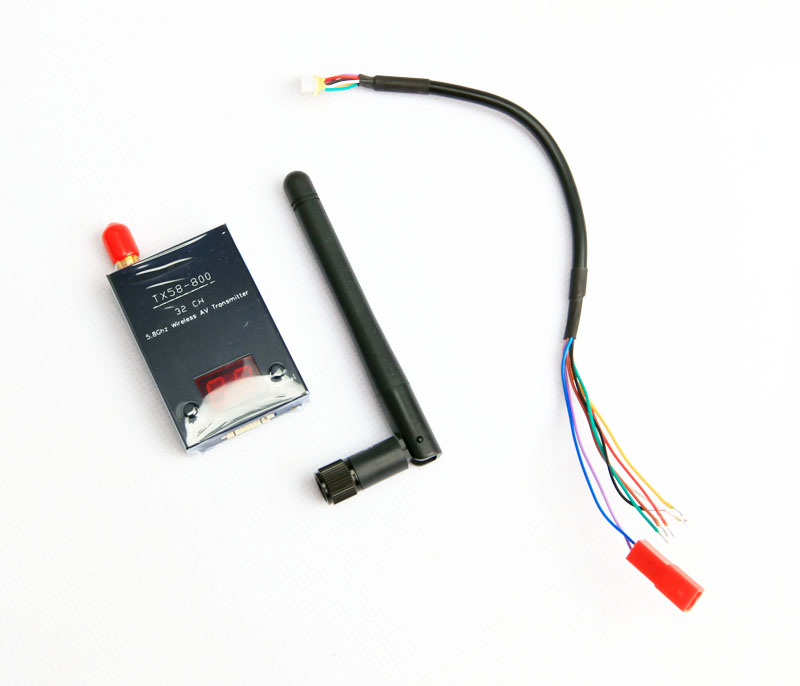

Includes:
1 x A/V transmitter (TX)
1 x antennas
1 x wire
