   FPV/ Aerial Photography Video TX/RX & Accy. FPV 5.8G 32CH LED Channel Display 1500mW AAT Compatible A/V Transmitter | RP-SMA, jack
SKU:  TS-800
FPV 5.8G 32CH LED Channel Display 1500mW AAT Compatible A/V Transmitter | RP-SMA, jack
Customers rating.
Add To Wish List
Added:2014/01/09
Updated:2014/01/09
Follow Us on:


  Tags: FPV  32 channels  AAT support  LED channel display

Features:

Special Features:

- Integrated with 6.5M & 6.0M audio input channel, support popular AAT systems available on market.
- LED channel number display.
- One-touch channel switching function integrated (receiver with same function is needed), you can switch the working channel of both the RX & TX by one touch remotely from your transmitter. (receiver is NOT included)
- Wide range power input, support 2-6S power input.




Specifications:

FPV 5.8G 32CH LED Channel Display 1500mW AAT Compatible A/V Transmitter | RP-SMA, jack

Video format supported: NTSC/PAL
Antenna connection: RP-SMA, jack (module side ) See connector type diagram
Working channel number: 32
Power input: 2-6S Lipo, wide range power input
Wrong polarity protection function: Yes
Cooling method: active cooling, cooling fan
Working currency: 800mA @ 12V
Audio system: 6.0M/ 6.5M
AAT input support: Yes
Remote channel switching function: Yes (same function receiver is required)
Video Band width: 8M
Weight: 50g
Dimension: 54 x 32 x 26.5 (excluding antenna)

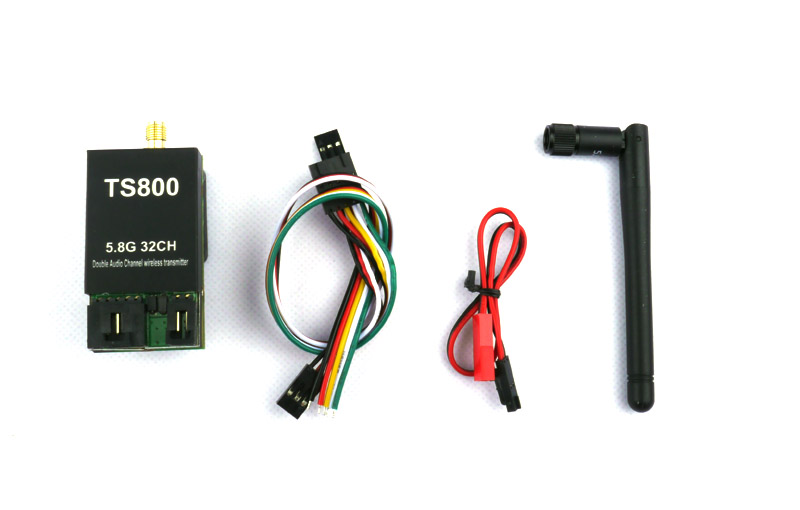

Includes/Requires:
Includes:
1 x A/V transmitter (TX)
1 x antennas (2db)
3 x wires
