   FPV/ Aerial Photography Gimbal/ Gimbal Controller etc. EvvGC 3-axis MOS Open Source Brushless Gimbal Controller W/ Sensor
SKU:  EWGC-3
EvvGC 3-axis MOS Open Source Brushless Gimbal Controller W/ Sensor
Customers rating.
Add To Wish List
Added:2013/07/22
Updated:2013/08/20
Follow Us on:


  Tags: brushless gimbal  aerial photography  open source gimbal controller  3-axis gimbal control  3-axle gimbal control

Features:
FEATURES:

- Based on STM32 and MPU6050

- STM32F103RC has enough processing power even for complex algorithms, and enough timers and other peripheral for 3axis control.
- Controller uses mosfets instead of L6234. This allows to use small, light weight mosfets(sot23, sot363) for gopro controllers, and bigger mosfets(so8, D2PAK) for DSLR's, RED's and other big cameras.


For more information, please refer to below link:
http://www.rcgroups.com/forums/showthread.php?t=1872199


Specifications:

EvvGC 3-axis MOS Open Source Brushless Gimbal Controller W/ Sensor

Main board dimension: 5 x 5cm
Power input: 12V

* The resisters fixing the MOSFETs  burning problem have been soldered on the board, the resisters are very tiny and hard to notice without using a magnifier.
Includes/Requires:

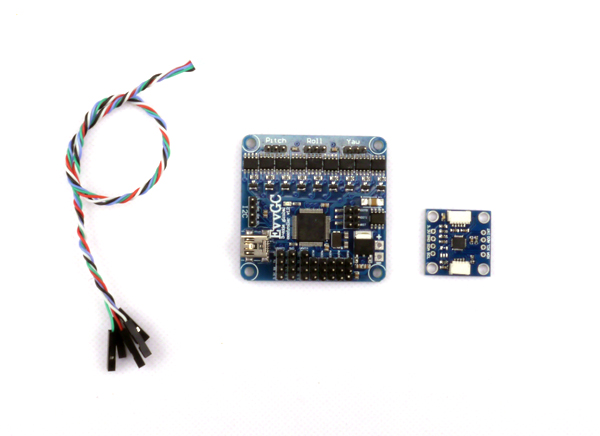

Includes:

1 x  main board
1 x sensor
1 x connection wire
